Installation, Operation and Maintenance Manual
VCIOM-15204-EN Rev. 1
May 2020
11
Section 10: Limit Switch Setting Instructions

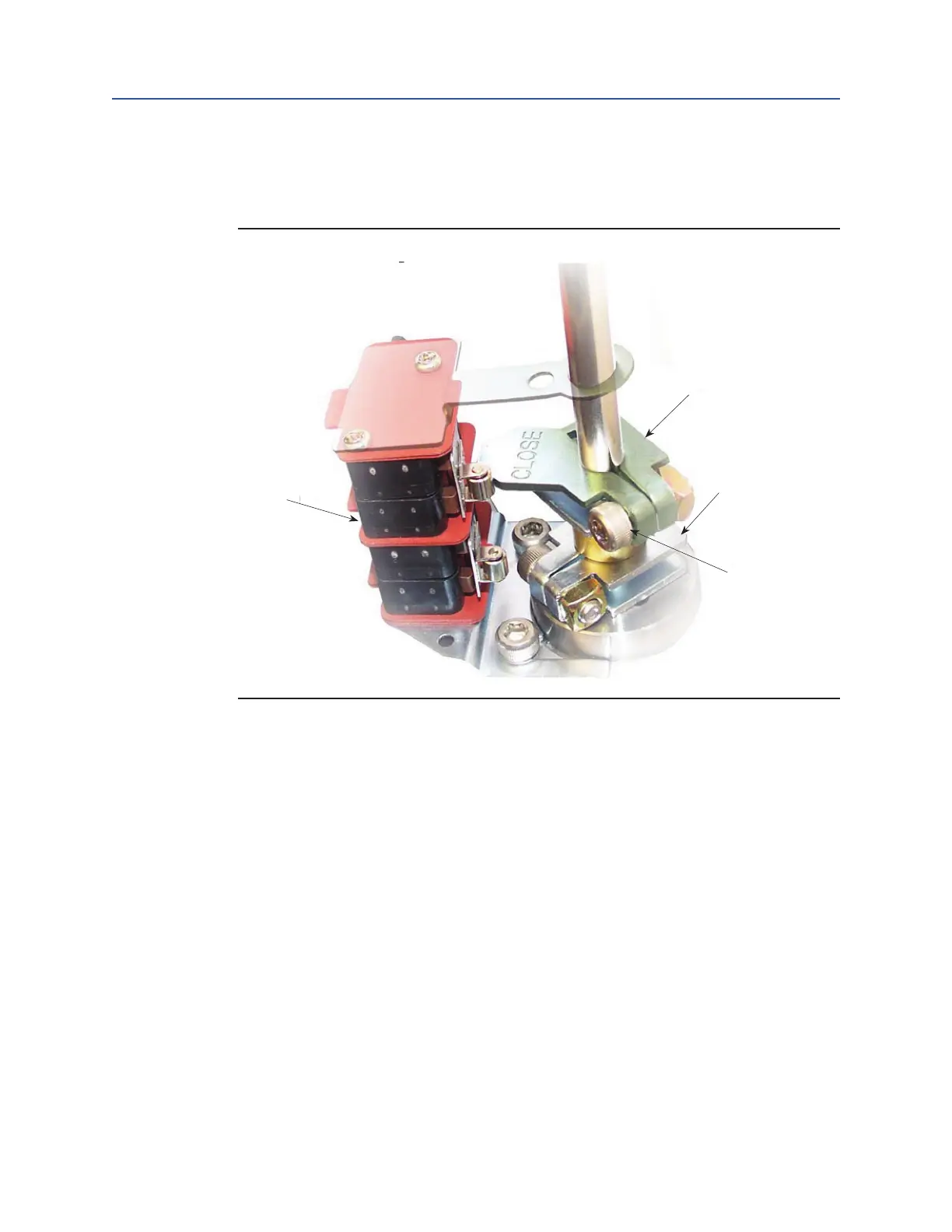

Figure 6
• Operate the actuator manually to closed position.
• Using a hex wrench, loosen the cam adjustment screw in the CLOSE limit switch cam.
• Rotate the CLS cam towards CW limit switch lever until the switch ‘clicks’.
• Tighten set screw with hex wrench.
• Operated the actuator manually to open position.
• Using a hex wrench, loosen the cam adjustment screw in the OPEN limit switch cam.
• Rotate the OLS can towards CCW limit switch lever until the switch ‘clicks’.
• Tighten set screw with hex wrench.
Close Limit
Switch Cam
Open Limit
Switch Cam
Cam Adjust-
ment Screw
Limit
Switches
Section 10: Limit Switch Setting Instructions
Limit Switch Setting Instructions
