DIP switch functions and settings
The FA-700 has a 4-position DIP switch. The switch settings determine how the FA-700 will
respond to specific alarm conditions. Figure 2 shows the DIP switch and Table 3 explains the
functions of each switch. Turn the FA-700 upside down as shown in Figure 2 for proper DIP
switch orientation.

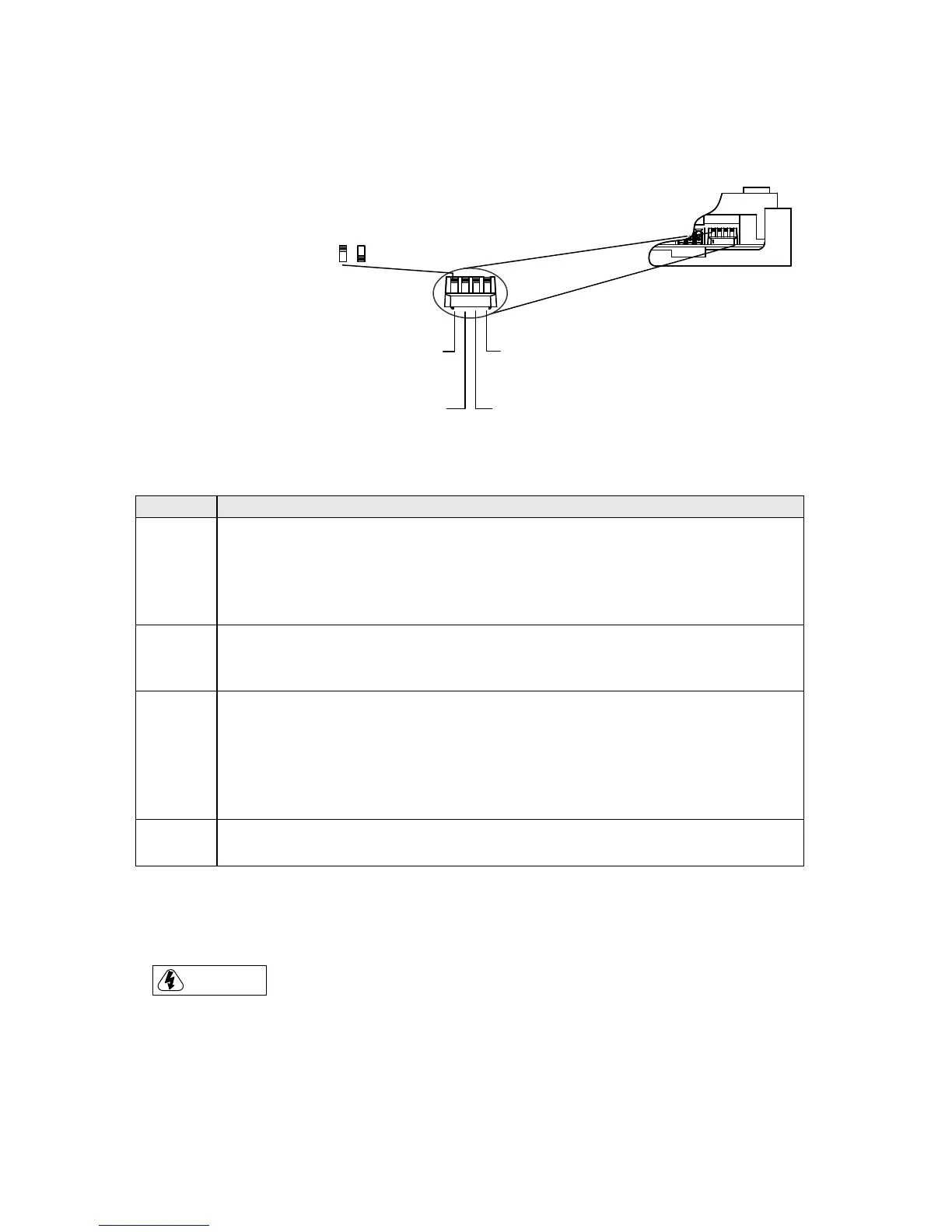

Figure 2: DIP Switches
Note: Use a ballpoint pen or similar small object to set the DIP switches.
Table 3: DIP switch settings and functions
Function (switch in UP position is the default)
Temperature low or high:
• UP, when the monitored location temp falls below 45ºF (7.2ºC) an alarm
message is sent.
• DOWN, when the monitored location temp rises above 85ºF (29.4ºC) an
alarm message is sent.
Pick-up ring count when calling your FA-700 to cancel an alarm:
• UP, “5” rings before the FA-700 will answer.
• DOWN, “10” rings before the FA-700 will answer.
Monitors call out frequency:
• UP, calls out every 15 minutes.
• DOWN, calls out every 2 hours.
When the monitor goes into alarm mode, it will begin calling the programmed
phone number. If the alarm condition is not canceled, it will call again every
15 or 120 minutes until the alarm is canceled.
Do Not Use
Default position: OFF
Initial setup
Connecting to AC power
• Do not touch the barrel connector end of the AC power adapter with wet hands when
plugged into AC power. Failure to observe this warning could result in an electrical shock.
• Do not install or connect the FA-700 to power or phone lines during a lightning storm.
Failure to observe this warning could result in an electrical shock.
1 2 3 4
ALARM ON TEMP DROP OR TEMP RISE:
UP = alarm if temp drops below 45°F (7°C) (default)
DOWN = alarm on temperature rise above 85°F (29°C)
PICK UP RING COUNT:
UP = Pick up on 5 rings (default)
DOWN = Pick up on 10 rings
Down
UP (Default)
Switch Key
CALL OUT FREQUENCY:
UP = Call out every 15 minutes (default)
DOWN = Call out every 2 hours
Not used – position should be UP.
Do not change factory setting
Bottom
Top
