DVC6000f Digital Valve Controllers
December 2009
8-14

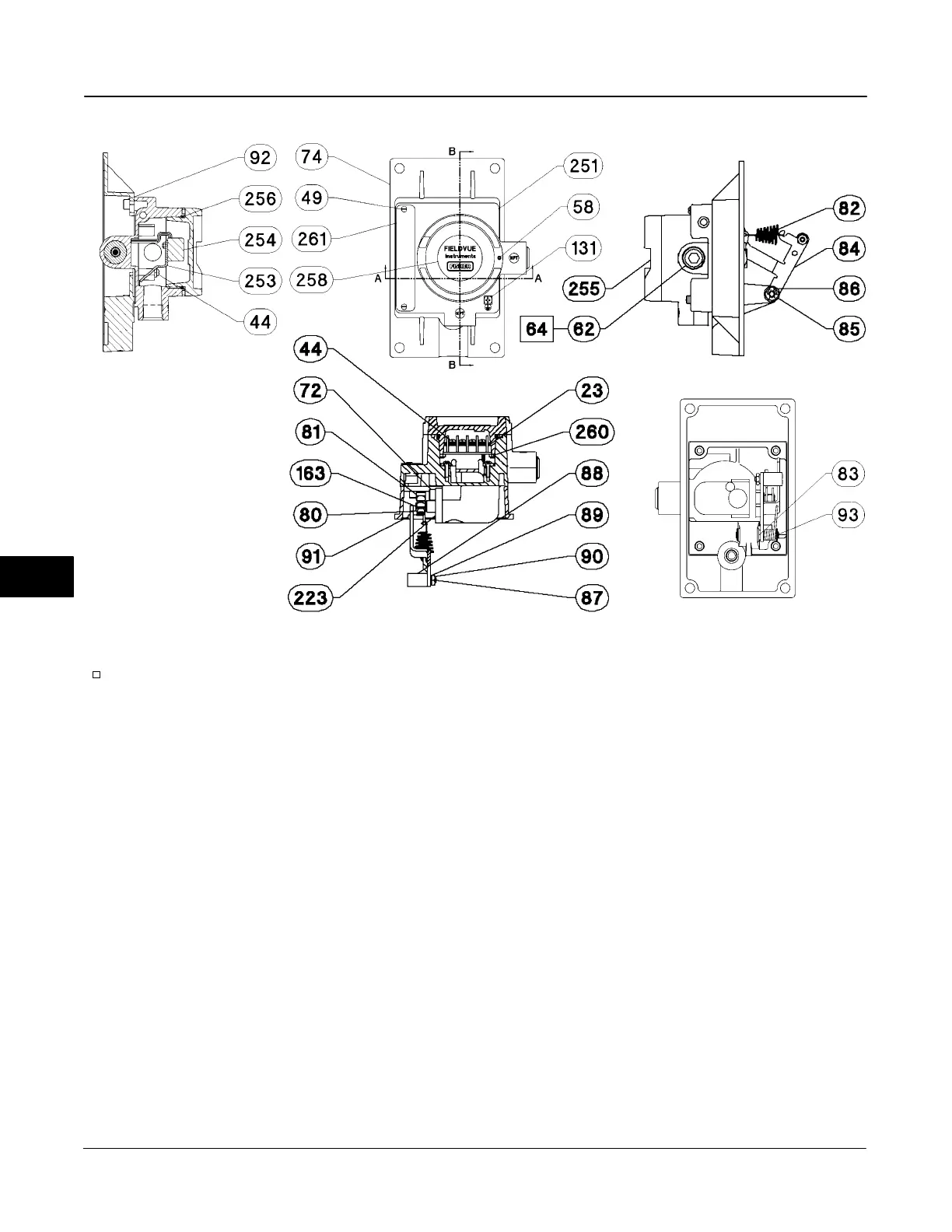

Figure 8-8. FIELDVUE DVC6025 Digital Valve Controller Assembly
49B7987-A / IL
NOTE:
1. APPLY LUBRICANT KEY 65 TO ALL O-RINGS UNLESS OTHERWISE SPECIFIED
APPLY LUB, SEALANT, THREAD LOCK
SECTION A‐A
SECTION B‐B
8
