Emerson Fisher FIELDVUE DVC6000f User Manual

DVC6000f Digital Valve Controllers
December 2009
B-2
This section includes loop schematics required for
wiring of intrinsically safe installations. It also includes
the approvals nameplates. If you have any questions,
contact your Emerson Process Management sales
office.
GE42818-A
Sheets 3 and 4 of 8
SEE NOTES IN FIGURE B-2
1
1

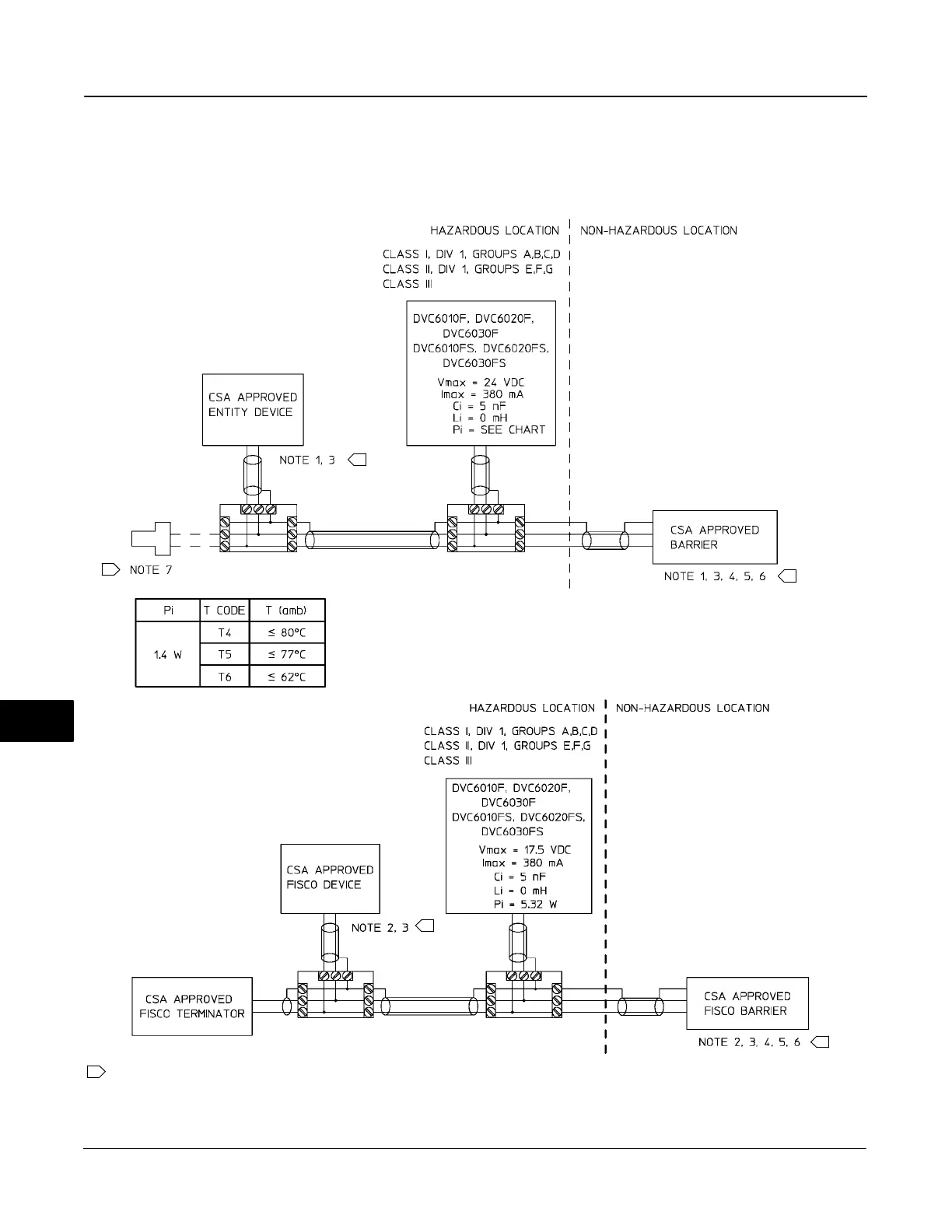

Figure B-1. CSA Loop Schematics for FIELDVUE DVC6010f, DVC6020f, and DVC6030f
1
FISCO LOOP
ENTITY FIELDBUS LOOP
1
1
1
B
