Loop Schematics/Nameplates
December 2009
B-3
GE42818-A
Sheet 8 of 8
NOTES

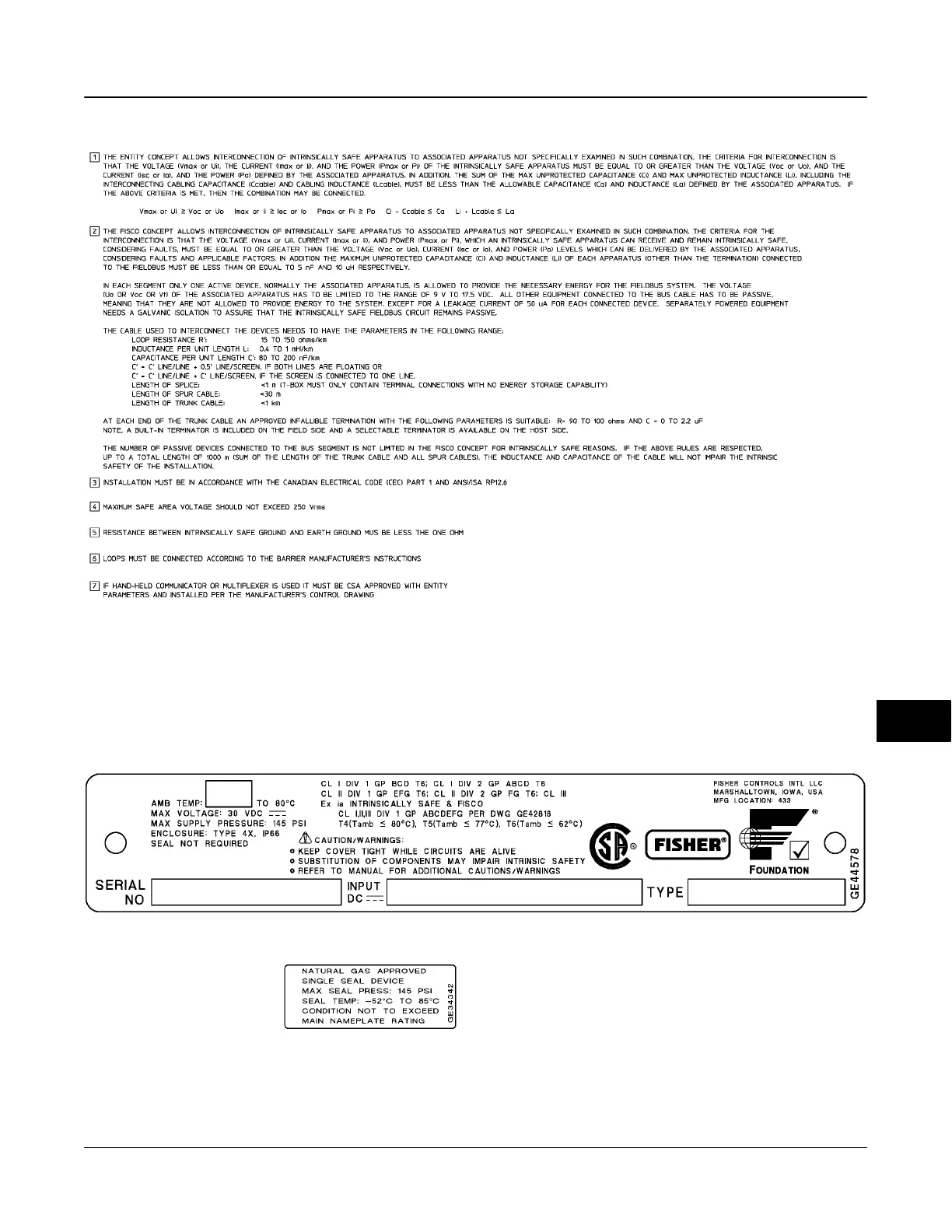

Figure B-2. Notes for CSA Loop Schematics
DVC6010f, DVC6020f, DVC6030f, DVC6010fS, DVC6020fS, DVC6030fS
Figure B-3. CSA Nameplates for FIELDVUE DVC6010f, DVC6020f, and DVC6030f
LABEL FOR NATURAL GAS
CERTIFIED TERMINAL BOX
B
