DVC6000f
Digital V
alve Controllers
December 2009
B-12
DVC6010f,
DVC6020f, DVC6030f, DVC6010fS, DVC6020fS, DVC6030fS
DVC6005f
DVC6015, DVC6025, DVC6035

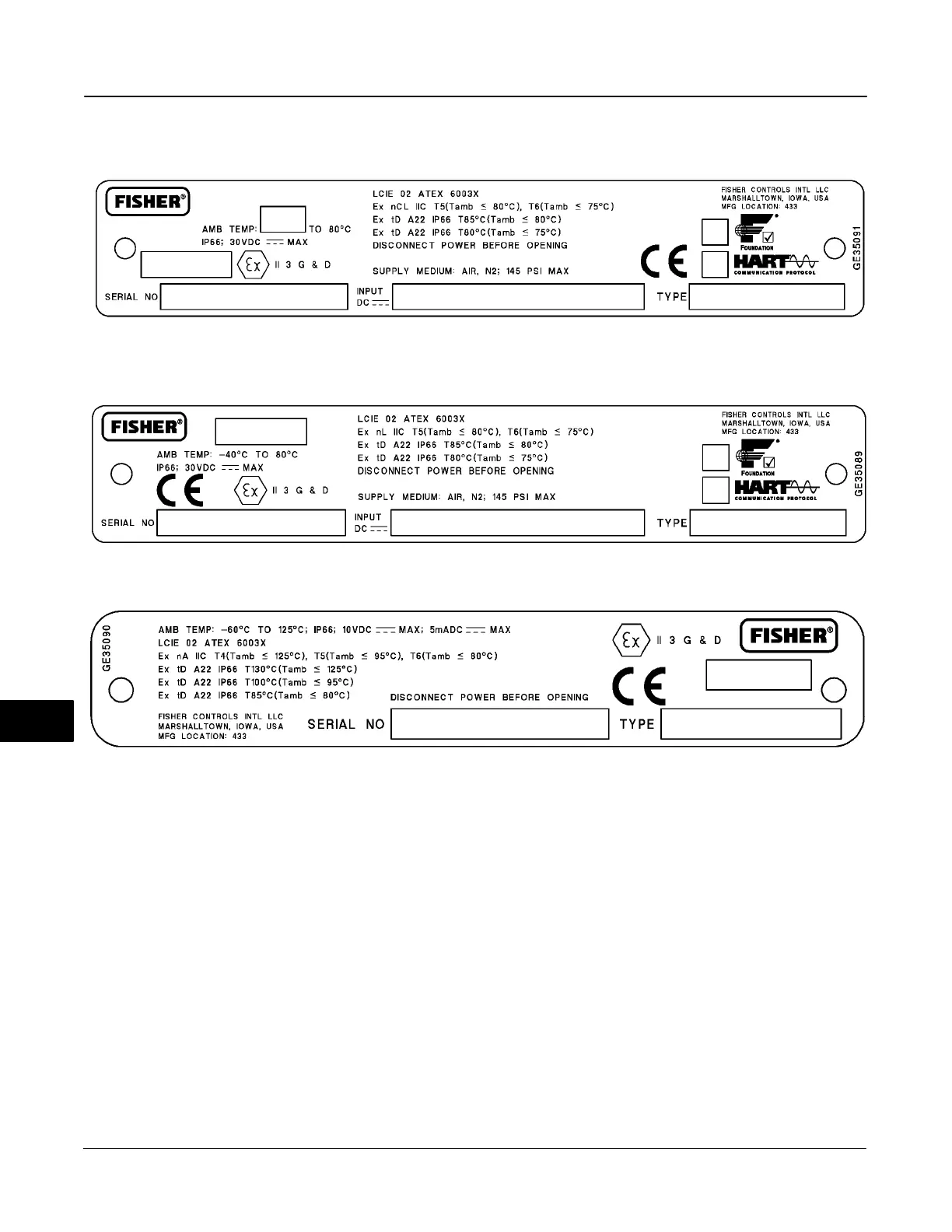

Figure B-13. ATEX Nameplates; Type n, Dust-Tight
B
317
319
