Loop Schematics/Nameplates
December 2009
B-13
GE42990−A
Sheets 3 and 4 of 8
SEE NOTES IN FIGURE B-15
1
1
1
1
1

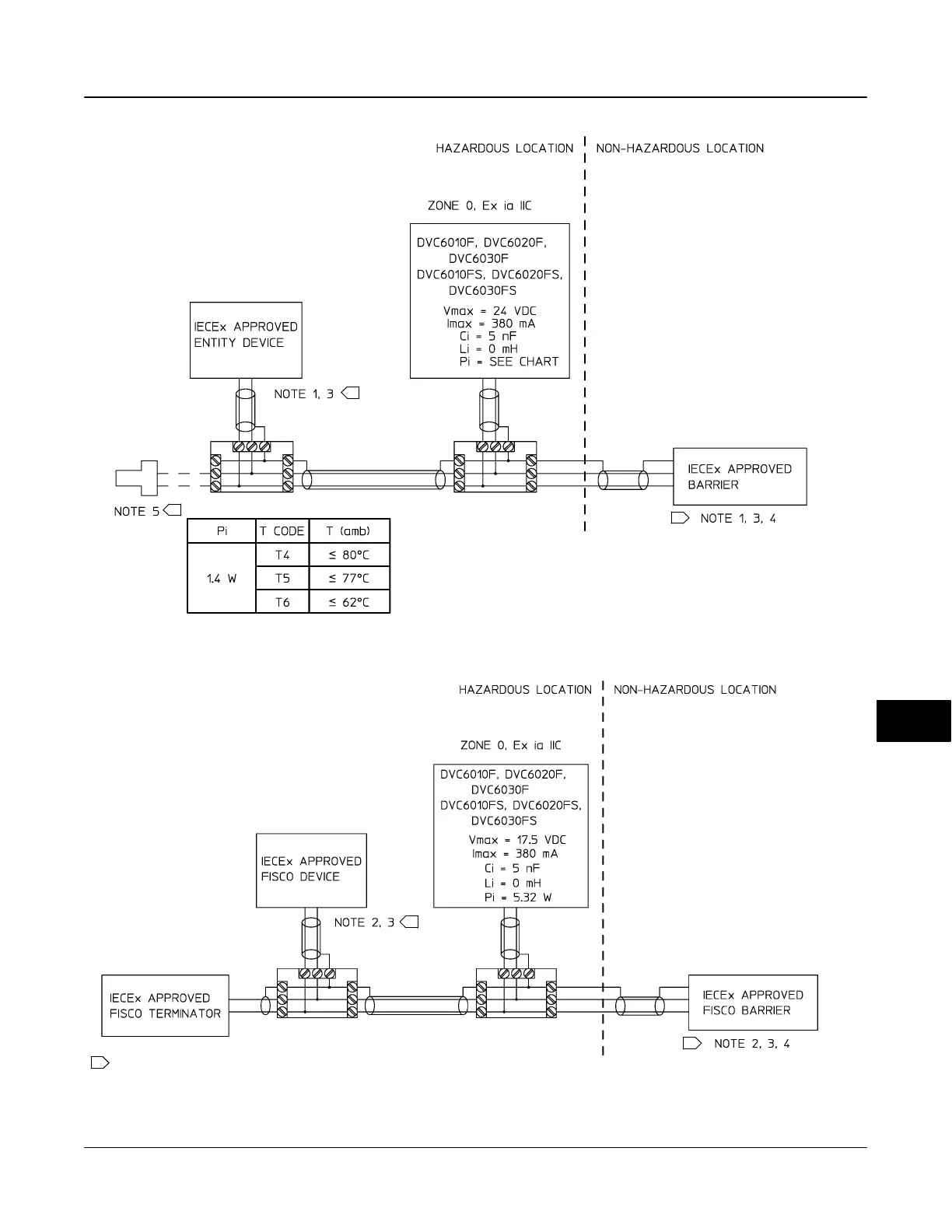

Figure B-14. IECEx Loop Schematics for DVC6010f, DVC6020f, and DVC6030f
FISCO DEVICE
ENTITY DEVICE
1
B
