Emerson Fisher FIELDVUE DVC6000f User Manual

Operating with a DeltaV System
December 2009
F-11

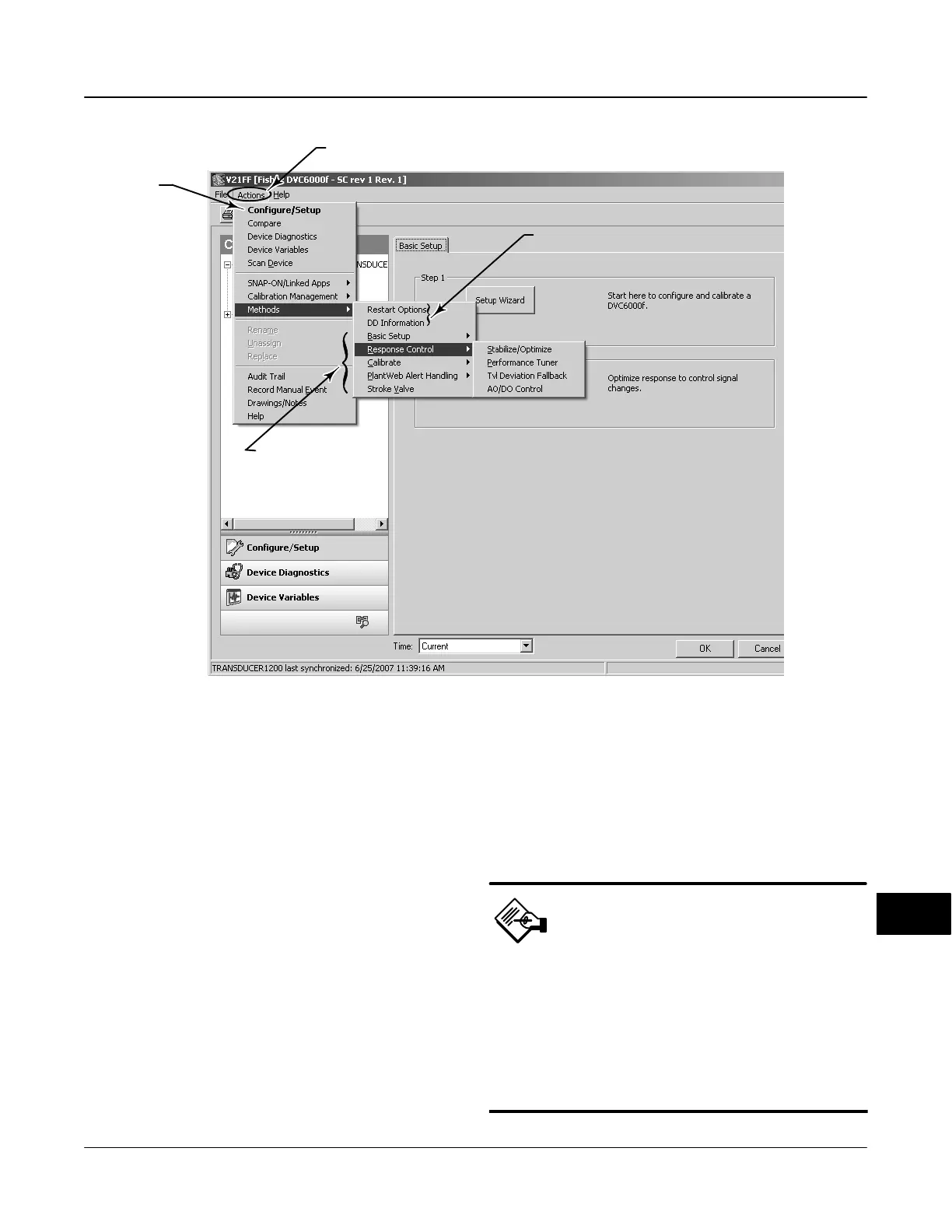

Figure F-3. Actions Menu
TRANSDUCER BLOCK
METHODS
RESOURCE BLOCK
METHODS
CONFIGURE/
SETUP
ACTIONS
Accessing Parameters
Transducer Block
For detailed information on the parameters that are
changed via the transducer block, refer to the Detailed
Setup section of this manual. Refer to figures F-2, F-3,
and F-4 for information on accessing transducer block
parameters.
1. Start DeltaV Explorer by selecting DeltaV Explorer
from the Start menu.
2. Locate the digital valve controller icon in the All
Containers pane and right-click once on the digital
valve controller icon or name.
3. Locate Open with AMS Device Manager in the
context menu and left-click to bring up the Device
Connection View.
4. Navigate to the digital valve controller icon or name
as shown in figure F-2 and left-click.
5. Locate Configure/Setup in the Actions menu (see
figure F-3) and left-click to access Configuration and
Setup parameters.
6. Left-click on Digital Valve Controller
(TRANSDUCER) to access the transducer block
parameters. Refer to table F-1 for the transducer block
configuration menu.
Note
To access diagnostic parameters
left-click on Device Diagnostics, and
then on Digital Valve Controller
(TRANSDUCER). See figure F-4.
To access device variables left-click on
Device Variables, and then on Digital
Valve Controller (TRANSDUCER). See
figure F-4.
