EACH DISPLAY ALARM SUMMARY CAN BE CONFIGURED TO MATCH THE ALARM BANNER OR BE UNIQUELY DEFINED.

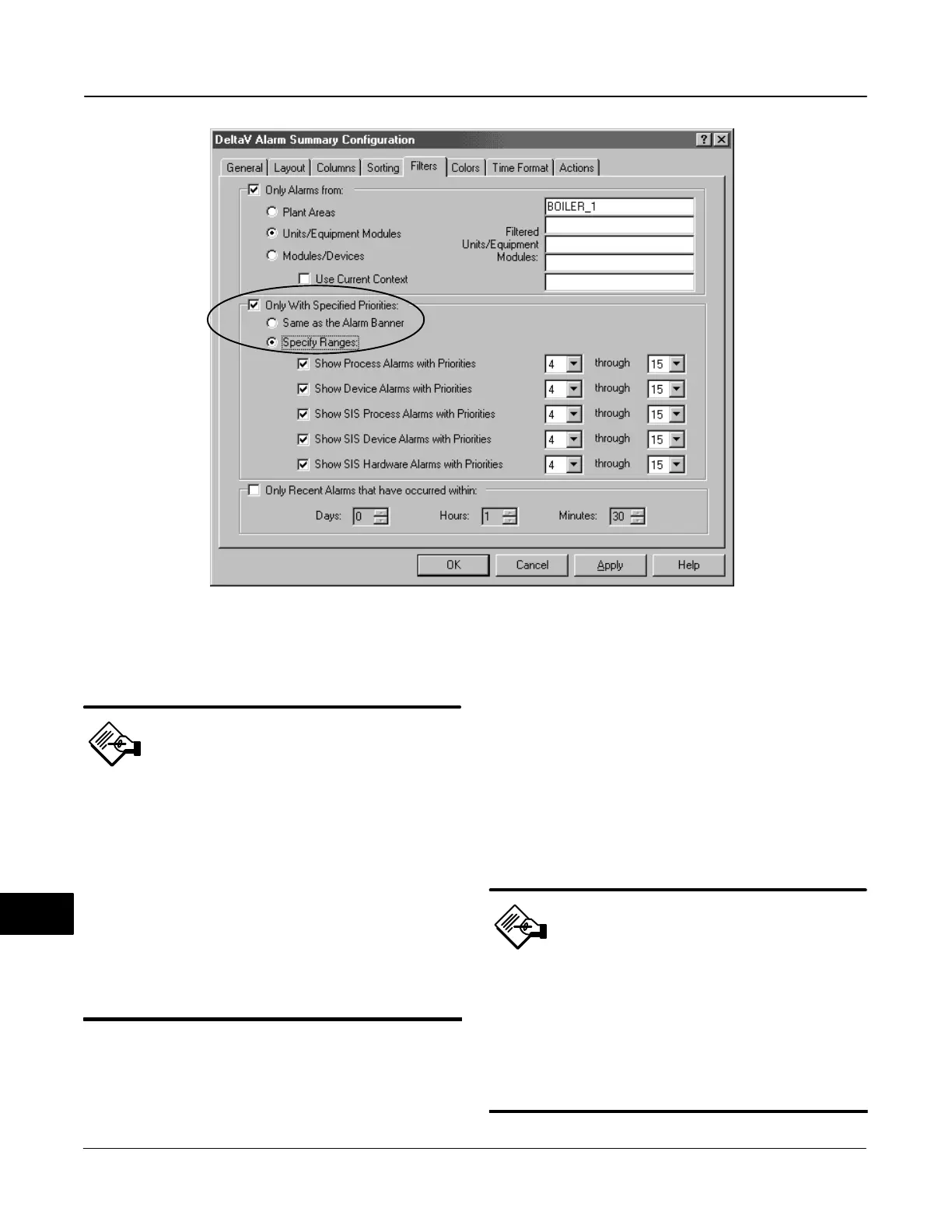

Figure F-8. DeltaV Alarm Summary Configuration
Note
If you think you should be seeing a
device alarm in the alarm banner and it
is not there, verify that the device is
shown on the AlarmSum display. This
display shows ALL of the alarms
reporting to that workstation,
regardless of the device alarm
annunciation settings. If the device is
not shown in this display, then it is not
reporting to this workstation (or the
logged on user does not have
responsibility for that area).
The default for device alarm annunciation (sounds the
horn and shown in the alarm banner) can be modified
for all operator/maintenance stations. Or unique
settings can be defined for specific workstations. Use
the workstation name to adjust settings for specific
workstations in UserSettings.grf.
For example, if an installation has a Maintenance
Station named ’MAINT’, then the UserRef.grf (then
renamed to UserSettings.grf) would contain alarm
settings for the MAINT workstation as appropriate for
maintenance (e.g. all device alarms in the alarm
banner).
Note
To easily find the device alarm
configuration in UserRef or
UserSettings, open the display in the
Standard directory, right click and
select EDIT SCRIPT, then select Edit,
Find and type in DEVICE. This will take
you to the location in the file with the
device alarm settings.
