Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
August 2015
45
Intrinsically Safe
Class I, Division 1, Groups A,B,C,D
Class II, Division 1, Groups E,F,G
Class III, Division 1
Ex ia IIC
Type 4X, IP66
Single Seal Device (HART HW2 and SIS pending)
Rated input 30 V DC max, 20 mA
- 52 _C < Ambient < + 80_C (-52_C to 125_C for DVC6215)
Max inlet pressure 10 bar (145 psig) (air or natural gas)
Intrinsically safe when connected per installation drawing GE42818, as shown in the following figures
DVC6200 HW1 figure 37 and 42...........................................
DVC6200 HW2 and DVC6200 SIS figure 38 and 42...........................
DVC6205, DVC6205 SIS, and DVC6215 Remote Mount figure 39 and 42........
DVC6200f and DVC6200p figure 40 and 42.................................
DVC6205f, DVC6205p, and DVC6215 Remote Mount figure 41 and 42.........
GE42818 sheet 2, Rev. F
CSA APPROVED BARRIER
1 NOTE 1, 3, 4, 5, 6
1 NOTE 7
CLASS I, ZONE 0, GROUP IIC
CLASS I, DIV 1, GROUPS ABCD
CLASS II, DIV 1, GROUPS EFG
CLASS III
DVC6200, DVC6200S
NON‐HAZARDOUS LOCATION
HAZARDOUS LOCATION

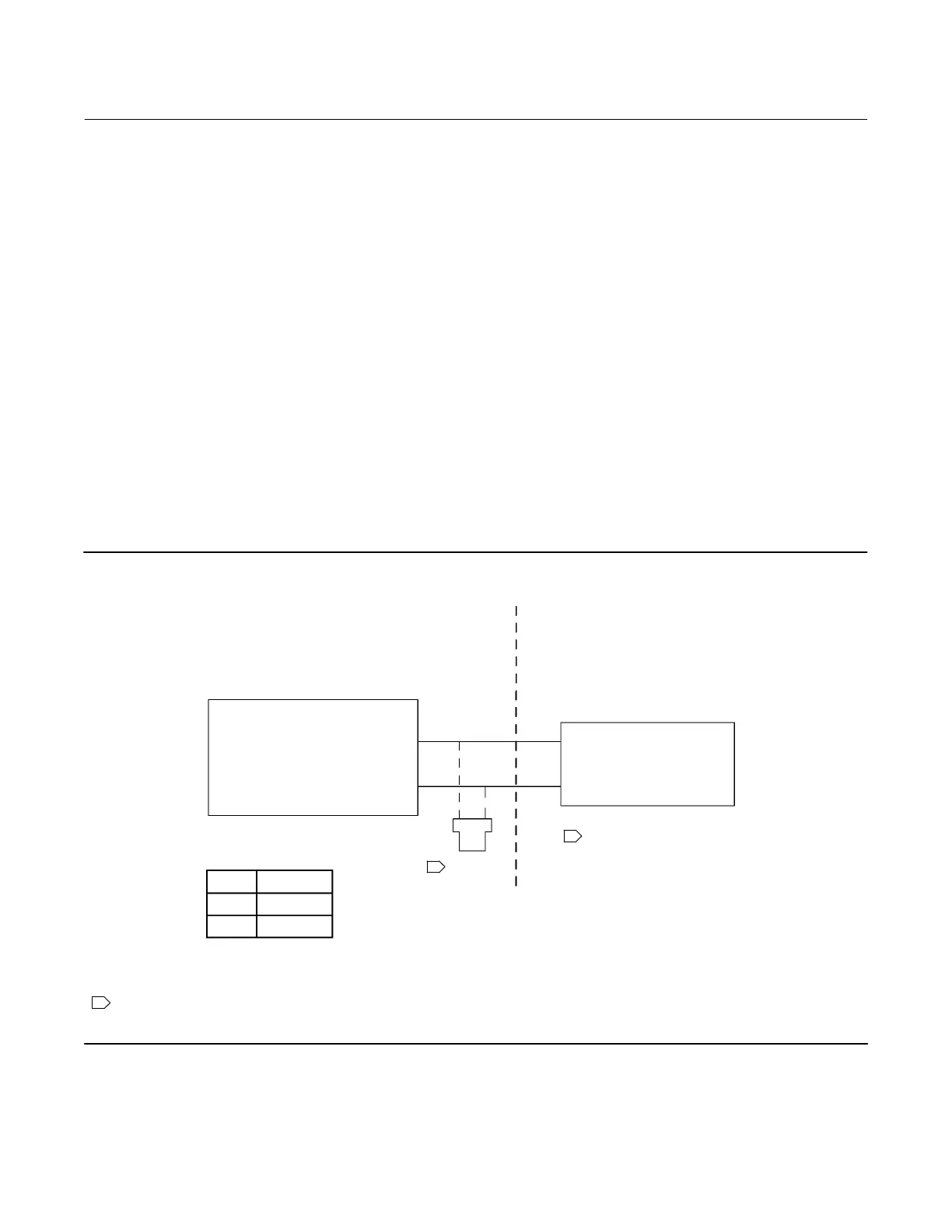

Figure 37. CSA Loop Schematic—FIELDVUE DVC6200 HW1
1 SEE NOTES IN FIGURE 42
T6 ≤ 75_C
T5 ≤ 80_C
T CODE T (amb)
Vmax = 30 VDC
Imax = 226 mA
Ci = 5 nF
Li = 0.55 mH
Pi = 1.4 W
