Liebert iCOM Display Components and Functions
9

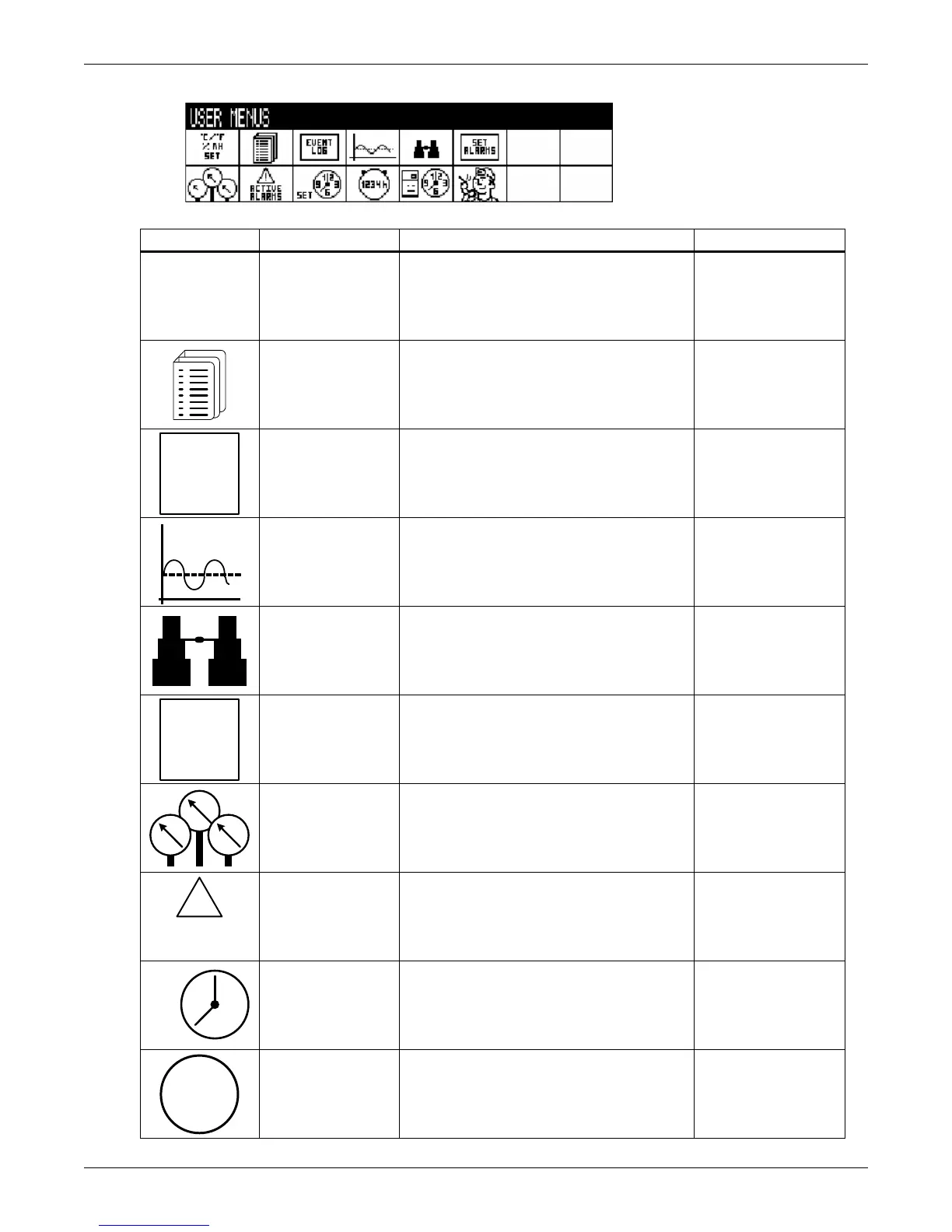

Figure 9 User menu icons
Table 2 User menu icons
Icon Name
Description
Available On Display
Setpoints
View and change temperature and humidity
setpoints
Small & Large
Spare Part List
Displays the various part numbers of the
components/parts in the cooling unit
Large
Event Log Contains last 400 events Small & Large
Graphics Displays temperature and humidity graphs Small & Large
View Network Shows status of all connected units Large
Set Alarms Allows enable, disable and settings for alarms Small & Large
Sensor Data
Shows readings of standard and optional
sensors
Small & Large
Active Alarms
Allows the user to view all current active
alarms
Small & Large
Display Setup
Change settings for display: language, time,
simple or graphic view
Small & Large
Total Run Hours
Records the run time of all components and
allows setting of limits on run time
Small & Large
User Menu password: 1490
°C / °F
% RH
SET
EVENT
LOG
SET
ALARMS
!
ACTIVE
ALARMS
1 2
39
6
SET
1234h
