Liebert NXC Battery
CONNECT THE BATTERY CABLES AS ILLUSTRATED IN Figure 2-2.

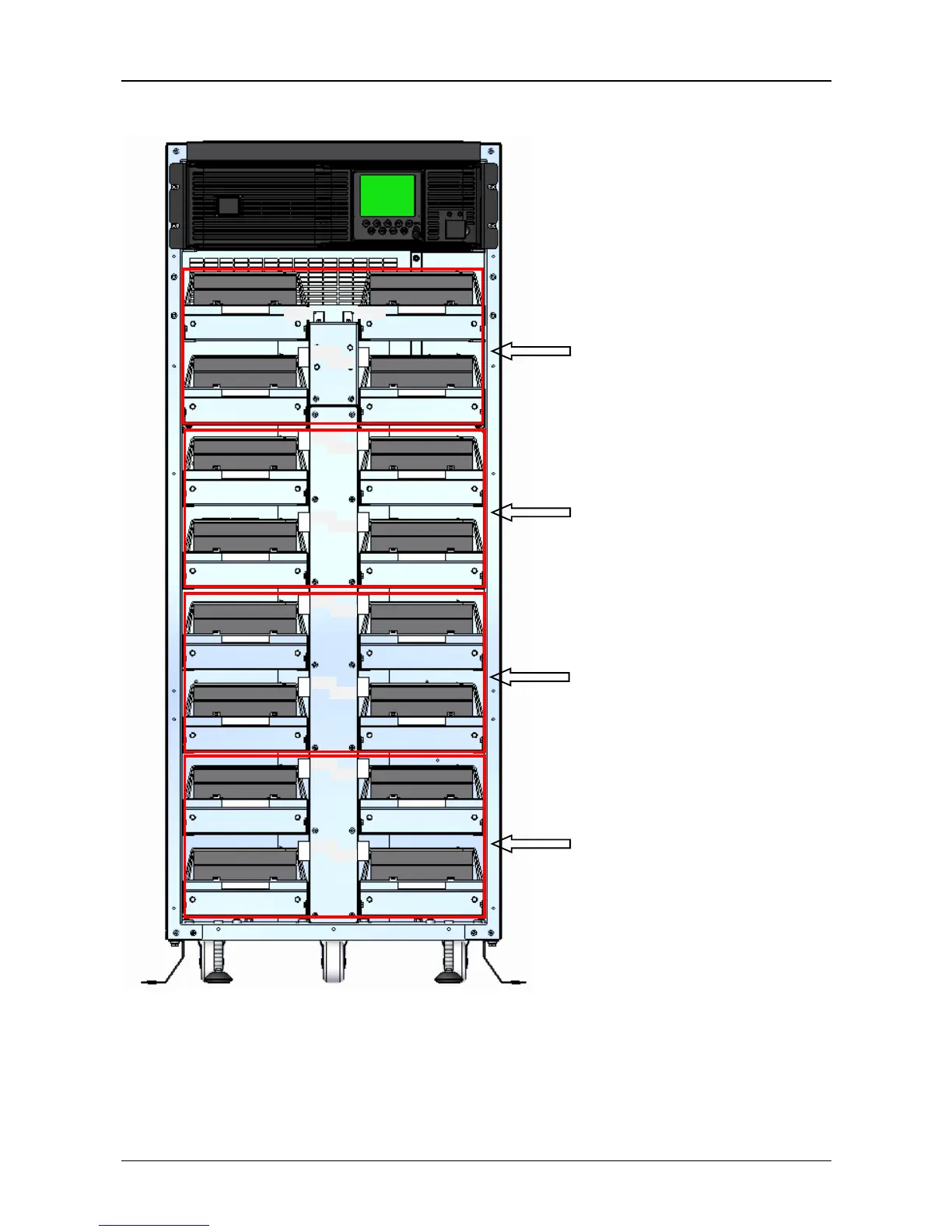

Figure 2-2 Internal Battery Cable Connection
For safety reasons, a female connector has been inserted on male connector of battery shelf; disconnect the female connector
in order to connect the XBS... male connector of the battery shelf to the female connector on the UPS.
N.B. The 3
rd
and 4
th
strings may also be installed in the field, during the initial installation.
BATTERY STRING 1
BATTERY STRING 2
BATTERY STRING 3
BATTERY STRING 4
XBS1
XBS2
XBS3
XBS4
XBS5
XBS6
XBS7
XBS8
XBS9
XBS10
XBS11
XBS12
XBS13
XBS14
XBS15
XBS16
To Next Page
