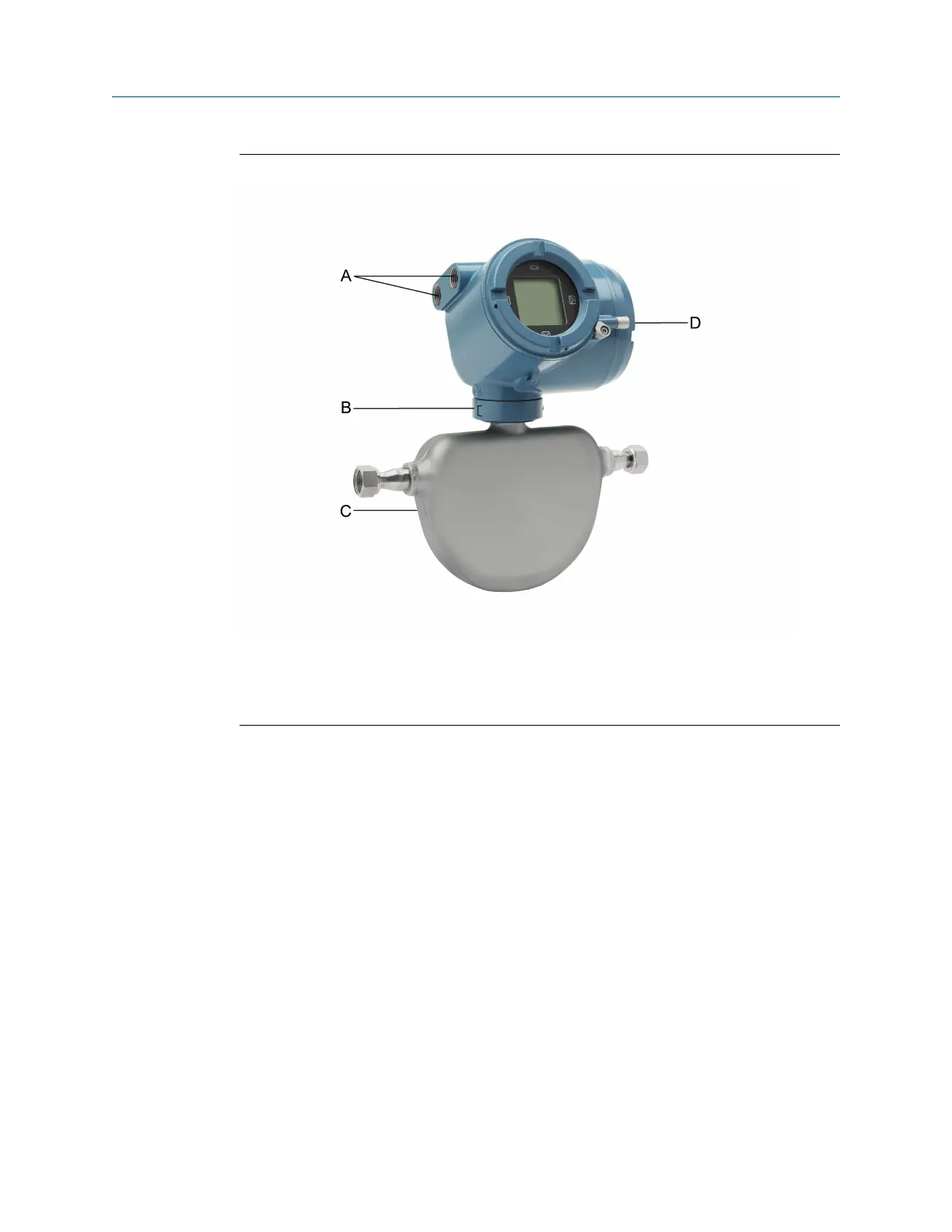

Figure 1-2: 4200 transmitter painted aluminum -- Integral mount
A. Conduit openings
B. Clamping ring
C. Sensor case
D. Transmitter housing cover (hidden from view)
The transmitter is installed directly on the sensor.
The connections between the transmitter and sensor are 9-wire, and do not require field
wiring on the integral mount version.
The input/output connections consist of two channels, each channel being 2-wire. Power
must be supplied to Channel A for the transmitter to operate, while Channel B connections
are optional.
Installation Manual Planning
MMI-20058013 March2024
Installation Manual 7
