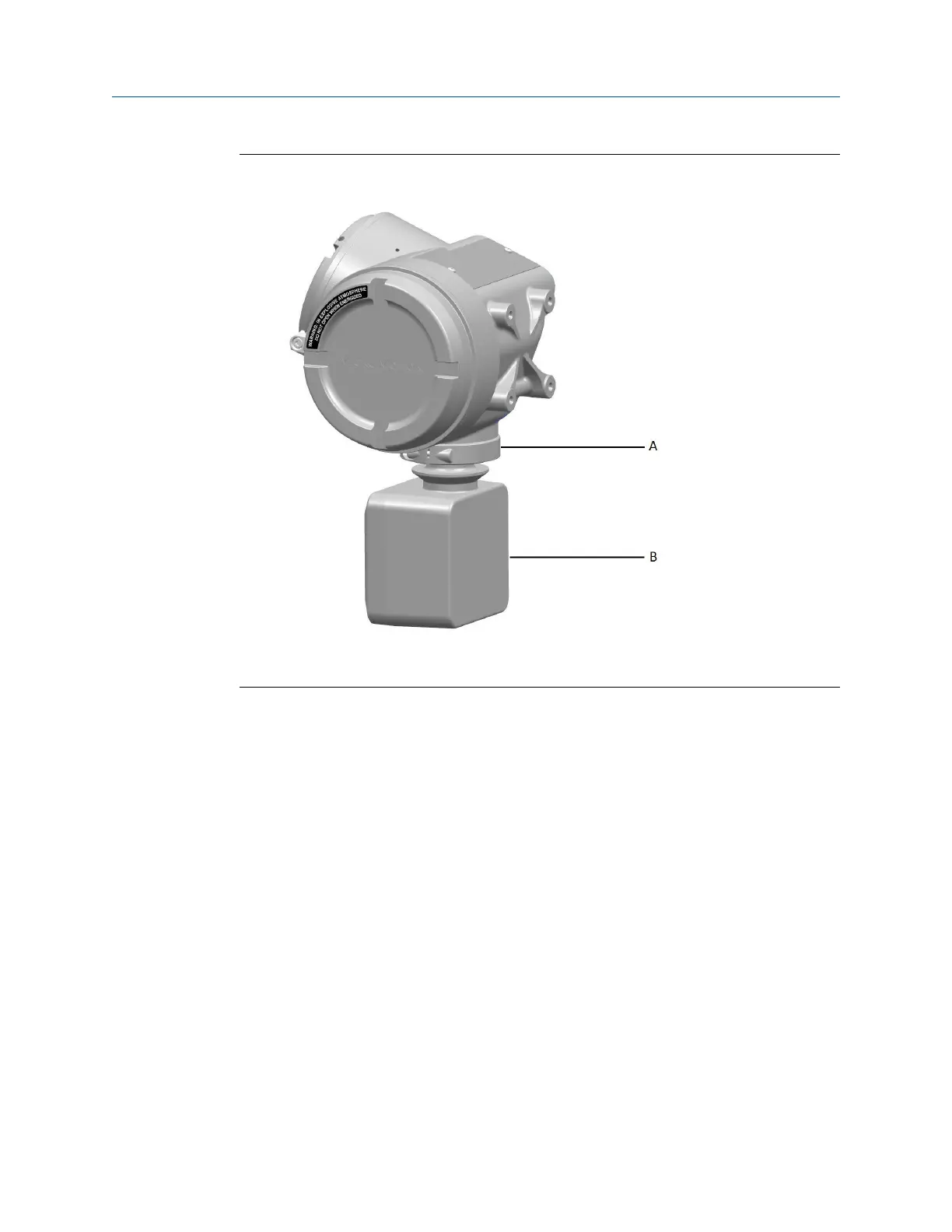

Figure 1-3: 4200 transmitter stainless steel -- Remote mount
A. Clamping ring
B. Junction box
The transmitter is installed remotely from the sensor. The 9-wire connection between the
sensor and transmitter must be field wired. Power supply and I/O must be field wired to
the transmitter. The sensor connection is in the junction box.
