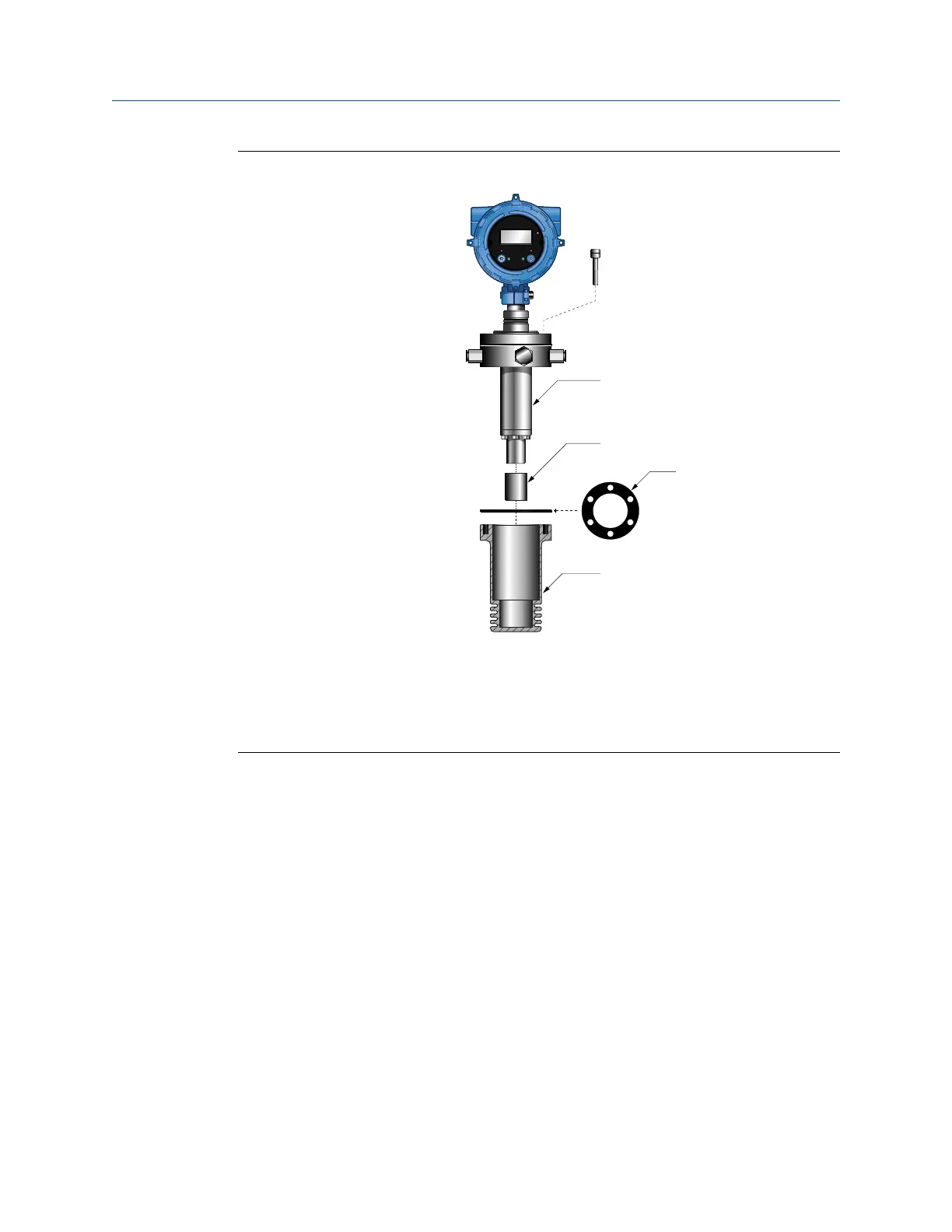

Meter installation piecesFigure 2-1:
STATUS
SCROLL SELECT
C
D
E
B
A
A. M8 socket-head cap screw (for mounting)
B. Meter housing
C. Aluminum sleeve (cylinder)
D. Anti-vibration gasket
E. Thermo-well pocket
Procedure
1. (Recommended) Install the thermo-well pocket in the aperture created in the
pipeline and weld it into place.
2. Pour the supplied silicon fluid (an amount of 20 cm
3
) into the interior of the pocket.
3. Place one 5-mm anti-vibration gasket on top of the pocket.
Align the anti-vibration gasket holes with the bolt holes on the pocket.
4. Place the aluminum sleeve over the end of the meter housing.
5. Insert the meter housing into the pocket.
6. Secure the meter into place, using the supplied mounting screws.
Mounting
