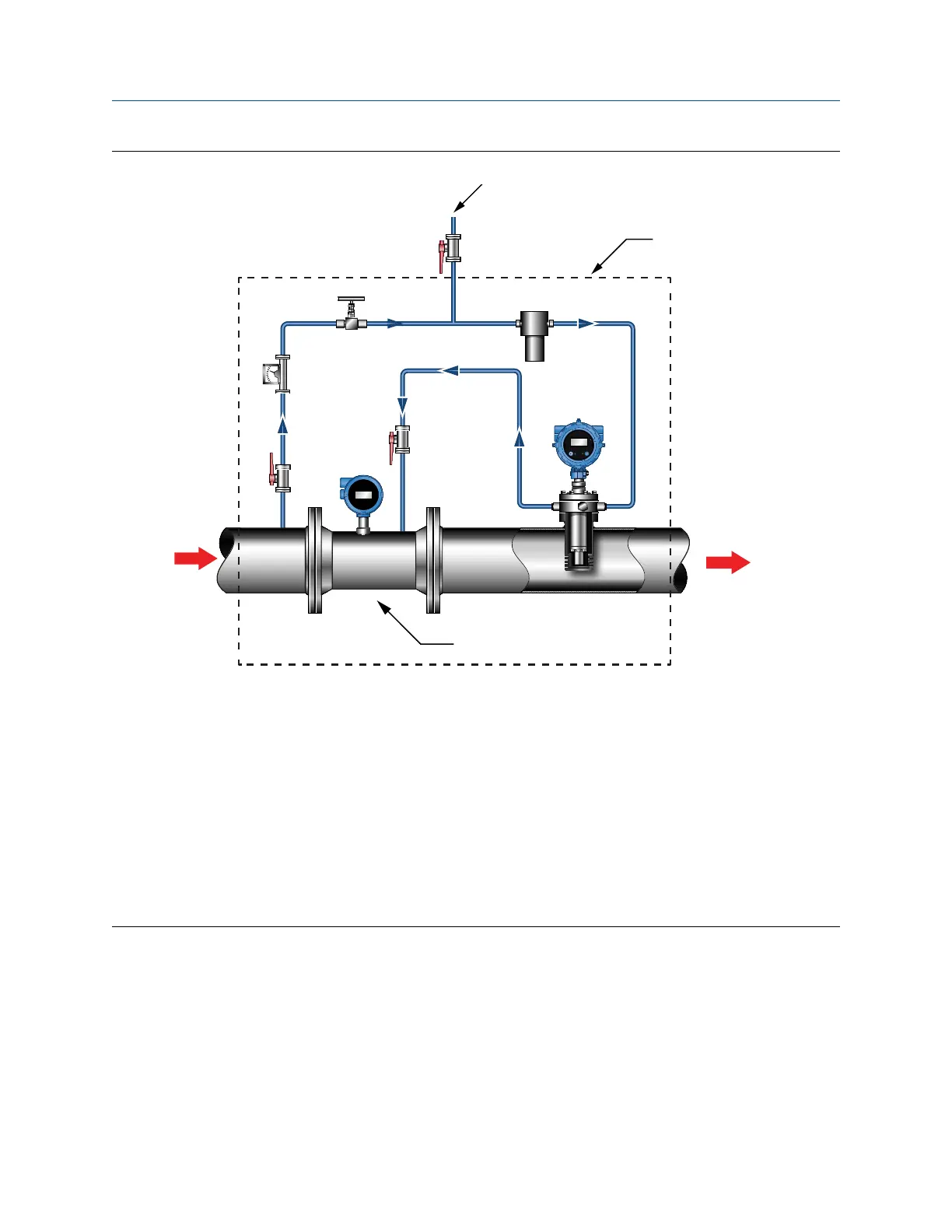

Meter installation with a turbine flow meterFigure 1-9:
STATUS
SCROLL SELECT
A
B
D
A
E
C
H
F
G
GDM
A. Meter isolation valves
B. Flowmeter
C. Venting valve
D. Flow control needle valve
E. Filter
F. Turbine flowmeter
G. Thermal insulation
H. Vent/vacuum test point
Note
Do not insulate the transmitter (electronics) and maintain a nominal 1-in clearance between the insulation and the transmitter
housing.
1.7 Perform a pre-installation meter check
1. Remove the meter from the box.
