2.2 Attach extended electronics
If your installation has a sensor with extended electronics, you will need to install the
extender onto the sensor case.
About this task
Note
Extended core processors are matched at the factory to specific sensors. Keep each core
processor together with the sensor with which it was shipped.
CAUTION
Keep the extender and feedthrough clean and dry. Moisture or debris in the extender
or feedthrough can damage electronics and result in measurement error or
flowmeter failure.
Procedure
1. Remove and recycle the plastic cap from the feedthrough on the sensor.

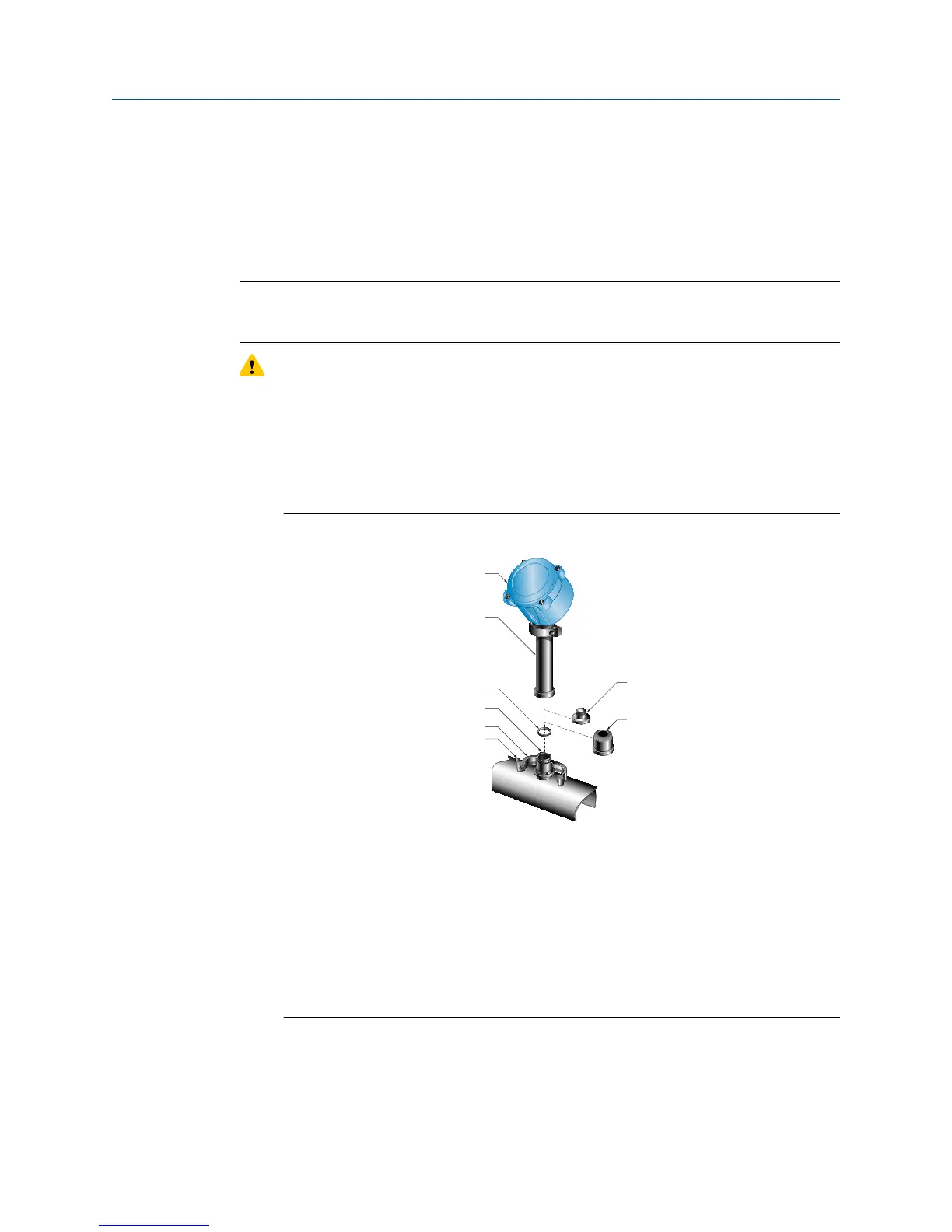

Figure 2-2: Feedthrough and extender components
G
H
E
D
C
A
B
F
A. Transmitter or core processor
B. Extender
C. O-ring
D. Feedthrough
E. Clamping ring
F. Clamping screw
G. Plastic plug
H. Plastic cap
2. Loosen the clamping screw and remove the clamping ring. Leave the O-ring in place
on the feedthrough.
3. Remove and recycle the plastic plug from the extender.
Mounting
Installation Manual
January 2019 20002346
10 Micro Motion H-Series
