Core processor terminal designations (continued)Table 3-1:
Wire color Function
Orange Temperature –
Yellow Temperature return
Green Left pickoff +
Blue Right pickoff +
Violet Temperature +
Gray Right pickoff –
White Left pickoff –

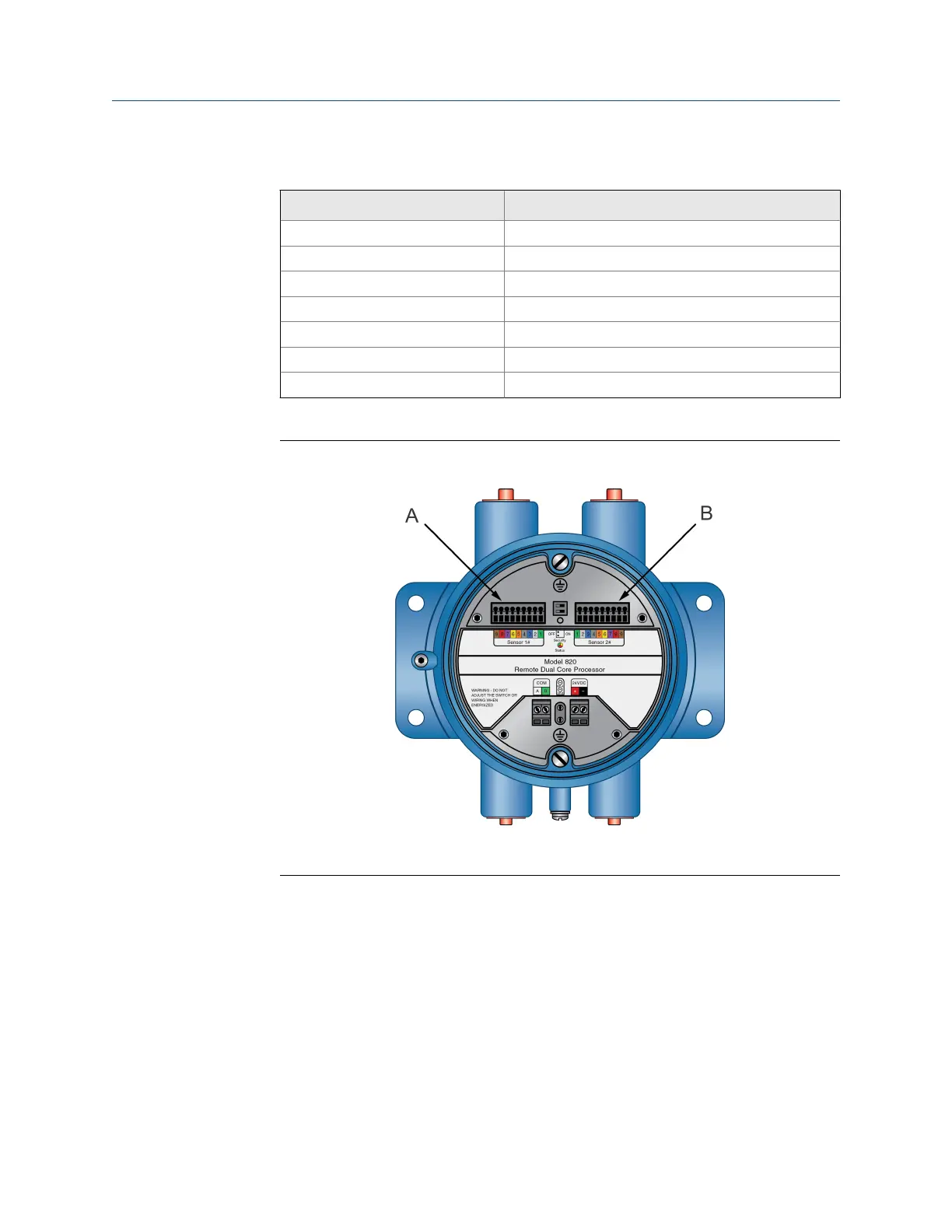

Dual core processor terminalsFigure 3-1:
A. Sensor 1
B. Sensor 2
Wiring
Quick Start Guide 9
