LIGHT FITTER
W
HITE WIRE
LIGHT FITTER
ASSEMBLY
CEILING FAN
WHITE WIRE
WIRE
CONNECTOR

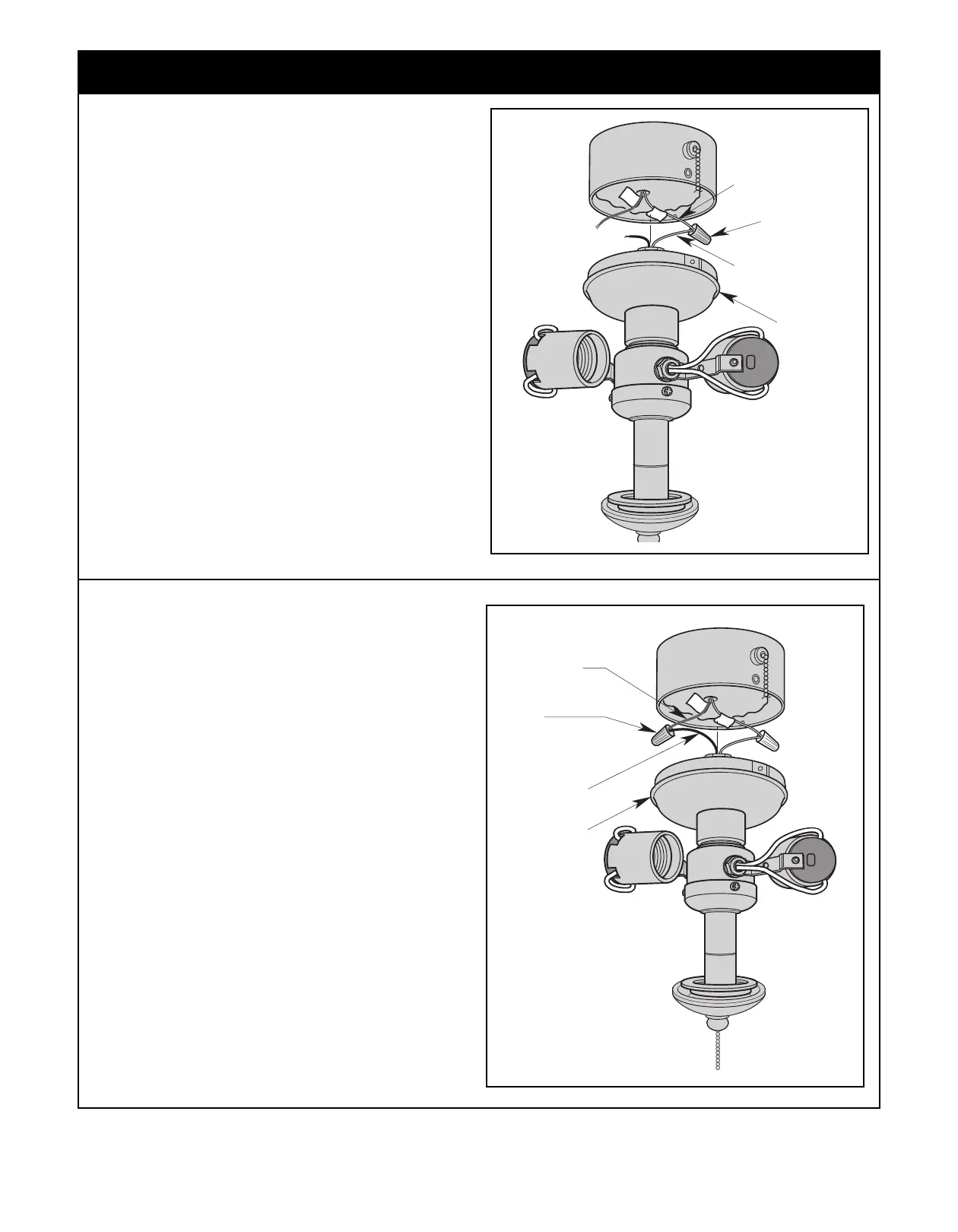

Figure 29
12.6
C
onnect the White Wire from the Ceiling Fan to the
White Wire of the Light Fitter using the previously
removed Wire Connector (Figure 29).
12. Installing the Light Fitter and Glass (Continued)
LIGHT FITTER
BLACK WIRE
CEILING FAN
BLUE WIRE
WIRE
CONNECTOR
LIGHT FITTER
ASSEMBLY
Figure 30
12.7
Connect the Blue Wire from the Ceiling Fan to the
Black Wire of the Light Fitter. Use Wire Connector
(previously removed) to make the connection
(Figure 30).
