12. Installing the Light Fitter and Glass (Continued)

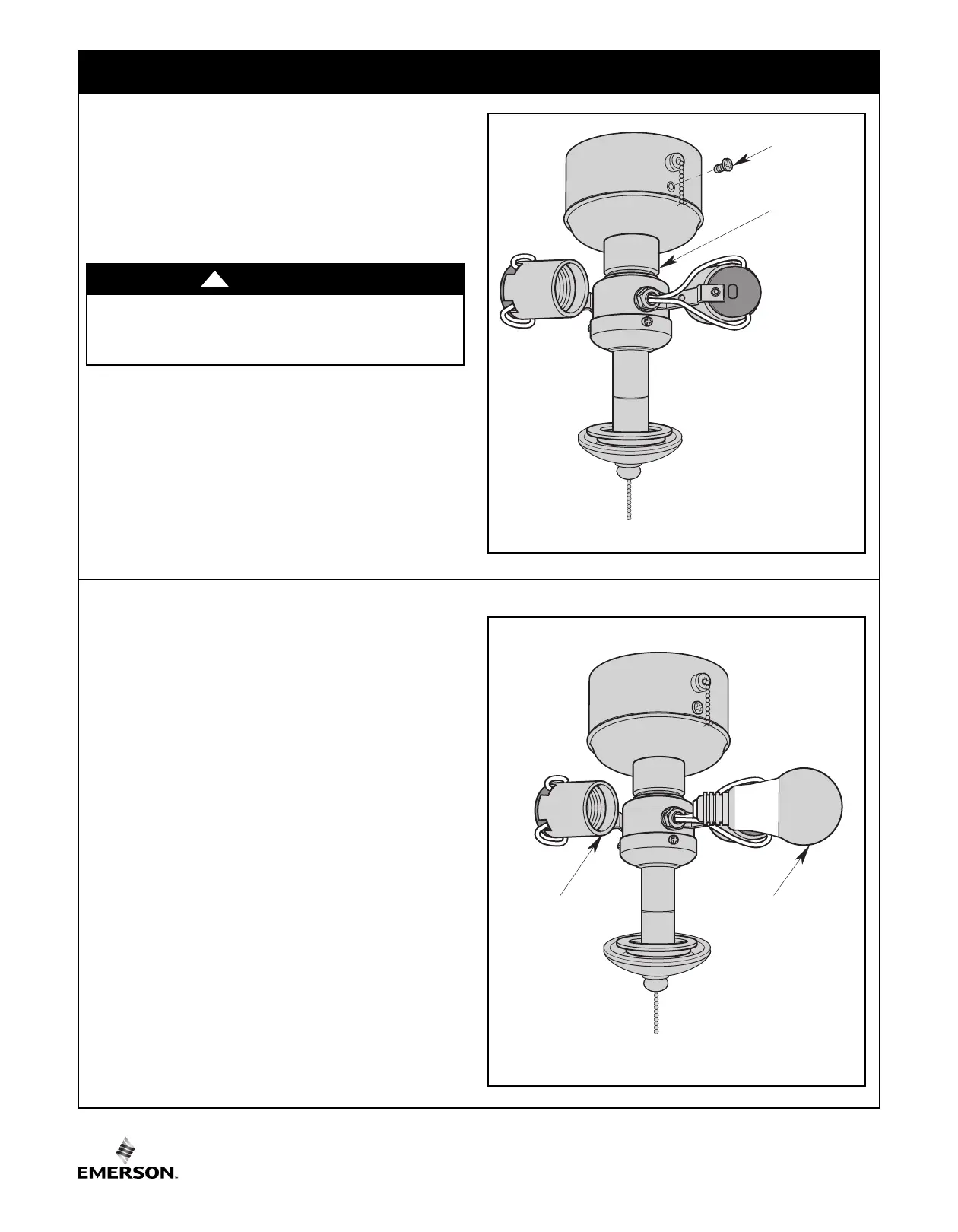

LIGHT FITTER
ASSEMBLY
S
CREW (3)
Figure 31
12.8
C
arefully tuck all Wires and Splices into the Switch
Housing.
A
ttach the Switch Housing Cover with Light Fitter (light
fitter assembly) to the Switch Housing using the Three
previously removed Screws (Figure 31).
LIGHT FITTER
ASSEMBLY
SOCKETS (3)
9.5-WATT MEDIUM
BASE LED BULBS (3)
Figure 32
12.9
Install Three 9.5-Watt Medium Base LED Bulbs
(supplied) into the Light Fitter Sockets (Figure 32).
To avoid fire or electrical shock, be careful not to
pinch wires between the switch housing assembly and
t
he cover.
WARNING
!
