Emerson ROC809 - Micro Motion RFT9739 & 2400 S Transmitters to APM Module

ROC800-Series Instruction Manual
B-4 Wiring Diagrams Revised July-2017

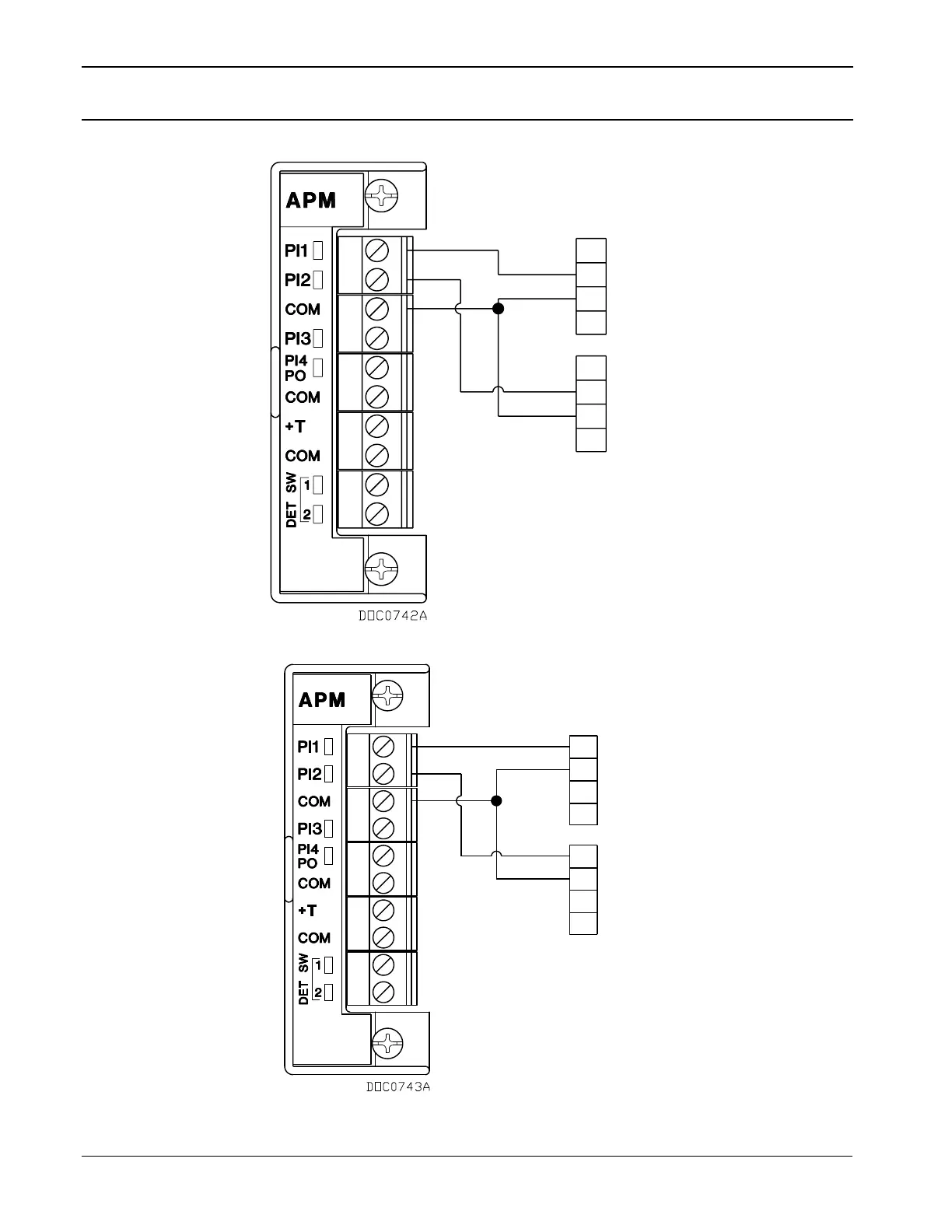

B.4 Micro Motion RFT9739 & 2400S Transmitters to APM Module
14
15
16
17
14
15
16
17
MICRO MOTION
RFT9739
TRANSMITTER
MICRO MOTION
RFT9739
TRANSMITTER
3
4
1
2
3
4
1
2
MICRO MOTION
2400S
TRANSMITTER
MICRO MOTION
2400S
TRANSMITTER
