Emerson Rosemount 3051S MultiVariable User Manual

Quick Start Guide
3
August 2016

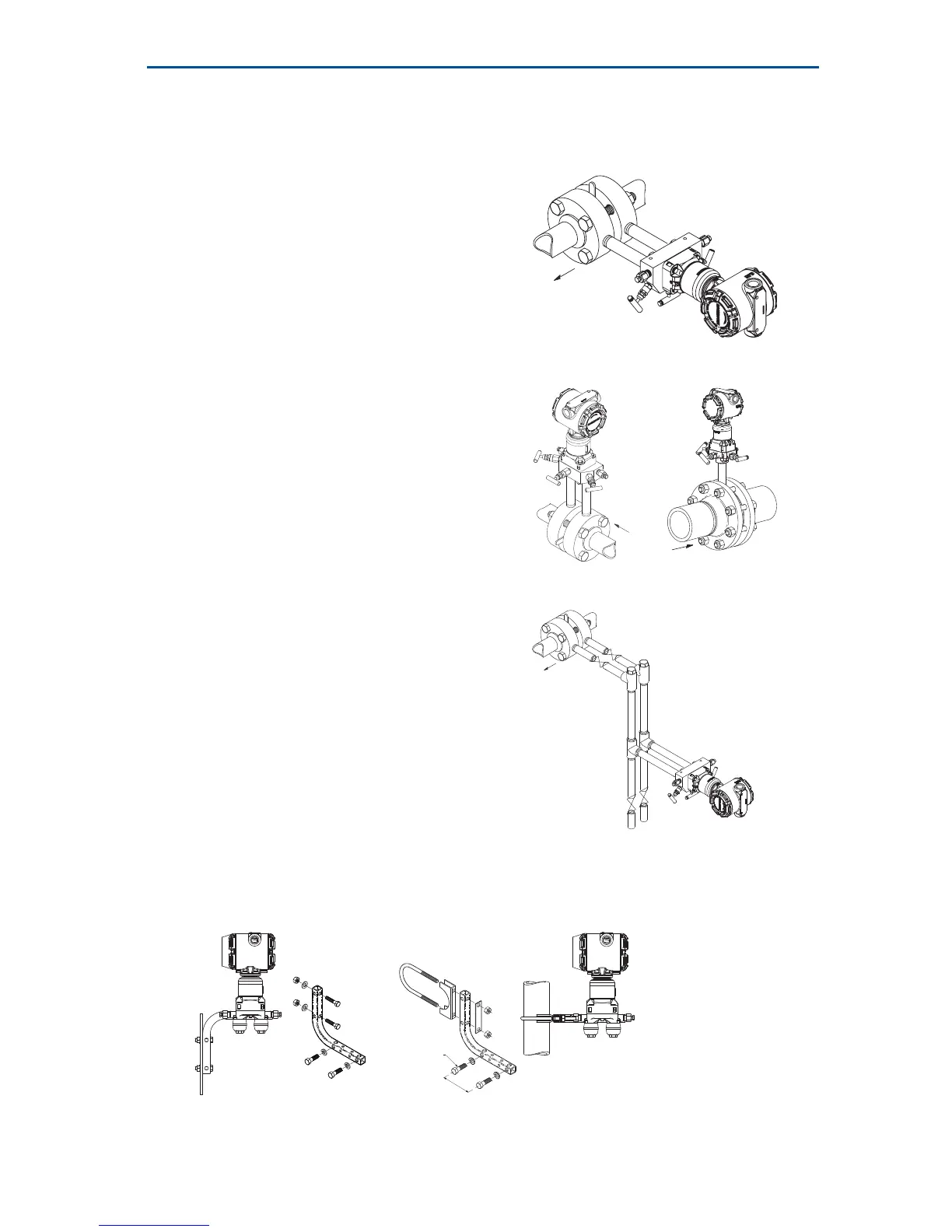

1.0 Mount the transmitter
1.4 Mounting brackets
1.1 Liquid flow applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so that the
drain/vent valves are oriented upward.
1.2 Gas flow applications
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
1.3 Steam flow applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Coplanar flange
Panel mount Pipe mount
Flow
Flow
Flow
Flow

Emerson Rosemount 3051S MultiVariable Specifications

General

Accuracy	±0.04% of span
Pressure Range	Up to 4000 psi (276 bar)
Communication Protocols	HART, FOUNDATION Fieldbus, PROFIBUS PA
Ambient Temperature Limit	-40 to 85 °C (-40 to 185 °F)
Power Supply (Fieldbus)	9-32 VDC
Measurement Type	Temperature, Flow
Output	4-20 mA HART, FOUNDATION Fieldbus
Temperature Range	-40 to 85°C (-40 to 185°F)
Material	316L SST, Hastelloy, Monel
Service	Liquid, gas, steam
Warranty	5 years
Measurement Range	0-4000 psi
Process Temperature Limit	-40 to 120°C (-40 to 248°F)
Diagnostics	Advanced diagnostics
Certifications/Approvals	FM, CSA, ATEX, IECEx, SIL 2/3
Process Connection	1/2-14 NPT
Electrical Connection	1/2-14 NPT, M20
Enclosure Rating	IP66, NEMA 4X
Stability	±0.1% of URL per 5 years
