August 2016
6
Quick Start Guide
2.0 Tagging
2.1 Commissioning (paper) tag
To identify which device is at a particular location use the removable tag provided
with the transmitter. Ensure the physical device tag (PD Tag field) is properly
entered in both places on the removable commissioning tag and tear off the
bottom portion for each transmitter.

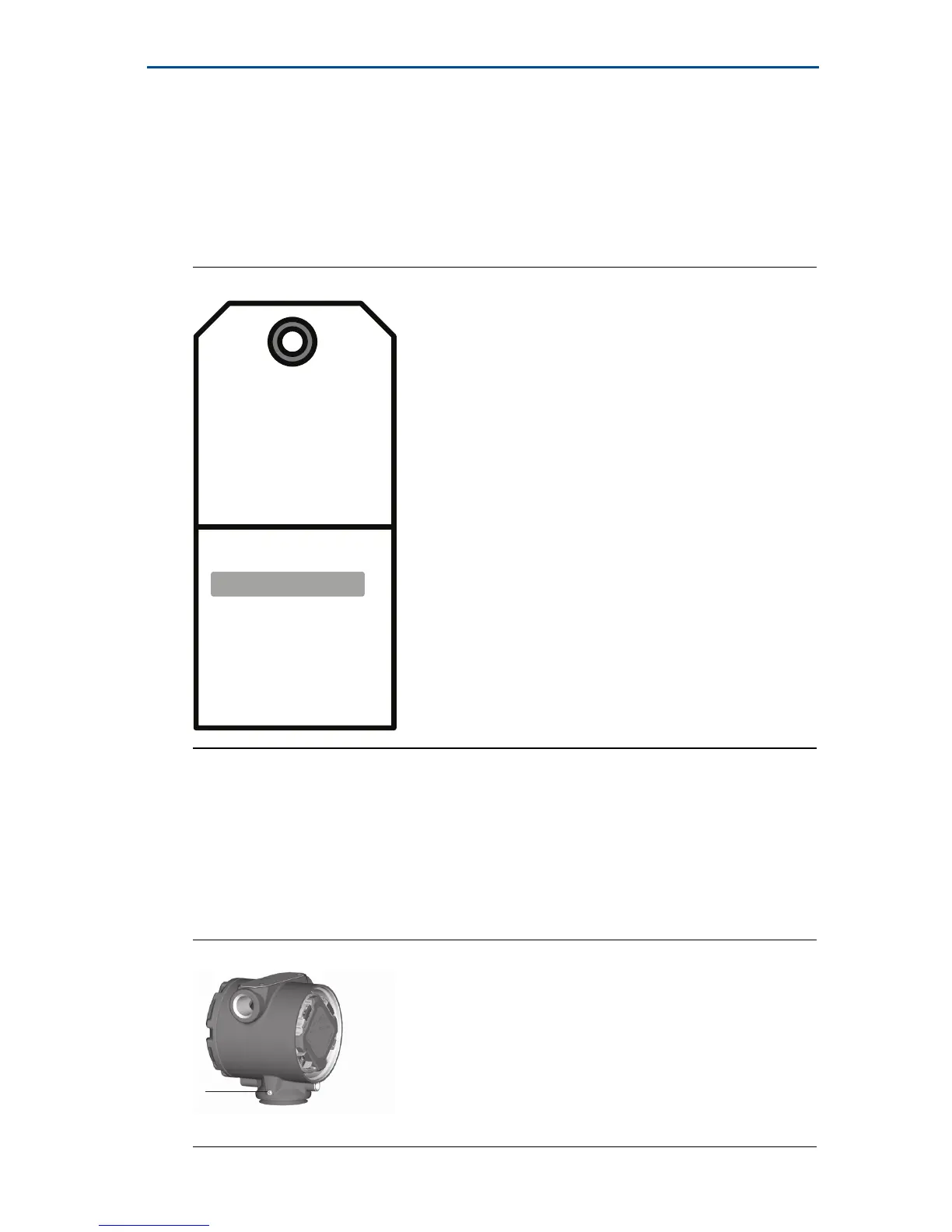

Figure 2. Commissioning Tag
3.0 Consider housing rotation
To improve field access to wiring or to better view the optional LCD display:
1. Loosen the housing rotation set screw.
2. Turn the housing up to 180° left or right of its original (as shipped) position.
3. Re-tighten the housing rotation set screw to 30 in-lb.
Figure 3. Transmitter Housing Set Screw
A. Housing rotation set screw (
3
/32-in.)
Commissioning Tag
DEVICE ID:
001151AB00010001440-121698091725
DEVICE REVISION: 1.0
PHYSICAL DEVICE TAG
DEVICE ID:
001151AB00010001440-121698091725
DEVICE REVISION: 1.0
S / N :
PHYSICAL DEVICE TAG
Device Barcode
A
