Emerson Rosemount 3051S MultiVariable User Manual

Quick Start Guide
9
August 2016
5.0 Wire, ground, and power
Use a copper wire of sufficient size to ensure the voltage across the transmitter
power terminals does not drop below 9 Vdc. Power supply voltage can be
variable, especially under abnormal conditions such as when operating on battery
backup. A minimum of 12 Vdc under normal operating conditions is
recommended. Shielded twisted pair Type A cable is recommended.

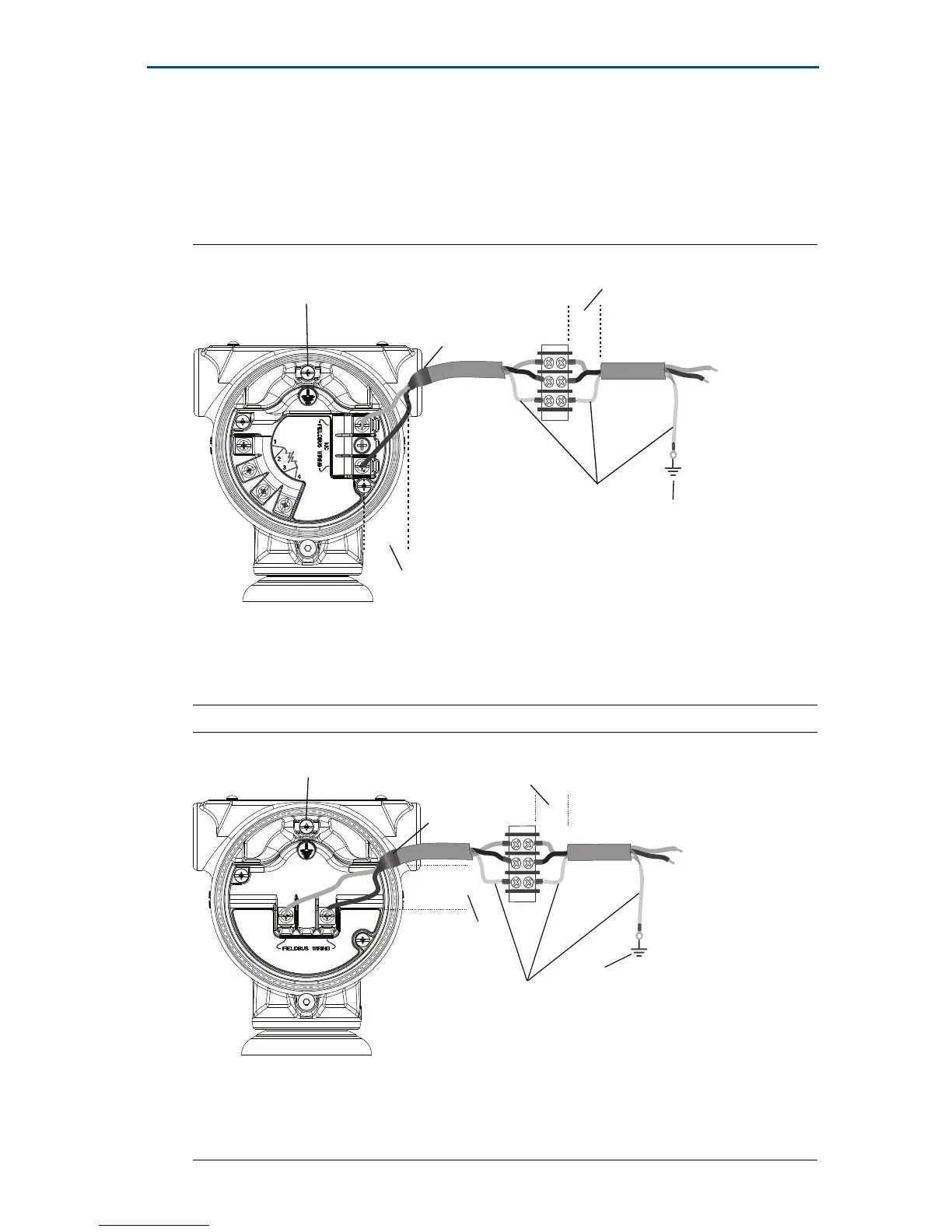

Figure 6. Wiring Terminals with RTD
Figure 7. Wiring Terminals without RTD
A. Protective grounding terminal
(do not ground cable shield at the transmitter)
B. Trim shield and insulate
C. Minimize distance
D. Insulate shield
E. Connect shield back to the power
supply ground
A. Protective grounding terminal
(do not ground cable shield at the transmitter)
B. Trim shield and insulate
C. Minimize distance
D. Insulate shield
E. Connect shield back to the power
supply ground
DP
C
C
D
E
B
A
DP
B
A
D
C
C
E

Emerson Rosemount 3051S MultiVariable Specifications

General

Accuracy	±0.04% of span
Pressure Range	Up to 4000 psi (276 bar)
Communication Protocols	HART, FOUNDATION Fieldbus, PROFIBUS PA
Ambient Temperature Limit	-40 to 85 °C (-40 to 185 °F)
Power Supply (Fieldbus)	9-32 VDC
Measurement Type	Temperature, Flow
Output	4-20 mA HART, FOUNDATION Fieldbus
Temperature Range	-40 to 85°C (-40 to 185°F)
Material	316L SST, Hastelloy, Monel
Service	Liquid, gas, steam
Warranty	5 years
Measurement Range	0-4000 psi
Process Temperature Limit	-40 to 120°C (-40 to 248°F)
Diagnostics	Advanced diagnostics
Certifications/Approvals	FM, CSA, ATEX, IECEx, SIL 2/3
Process Connection	1/2-14 NPT
Electrical Connection	1/2-14 NPT, M20
Enclosure Rating	IP66, NEMA 4X
Stability	±0.1% of URL per 5 years
