3.5 Installing Rosemount SAM42 Acoustic Particle
Monitor on small diameter pipes (NPS 2) using U-
bolts
For installing on small diameter pipes, U-bolts replace the strapping
which is normally used. This section describes the installation using
U-bolts rather than strapping. This can be applied to both the
standard temperature and high temperature variants of the product.
Procedure

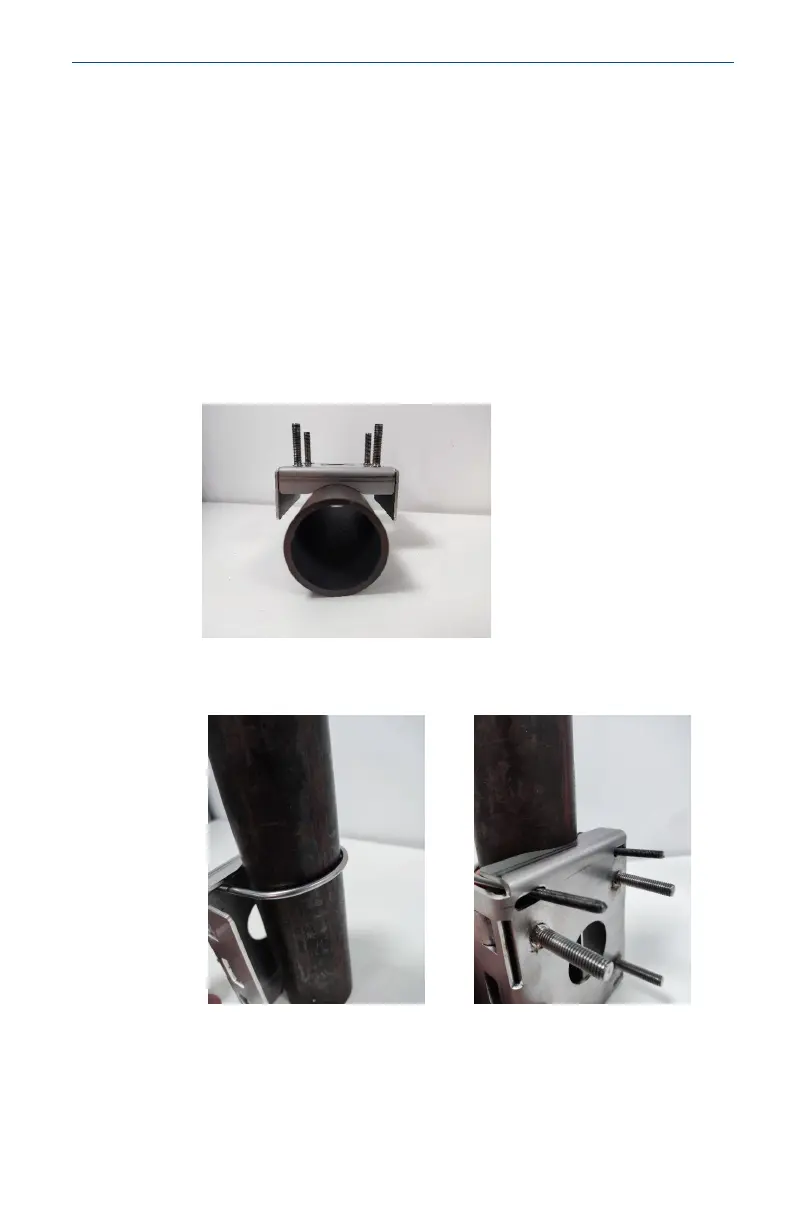

1. Place the mounting socket on the pipe. The wings of the
mount will not be in contact with the pipe. The wings must
be bent in so that they are parallel to the pipe.
2. Place the U-bolt around the pipe and feed the ends into the
holes which are in the mounting socket.
