ER5000 —
93
Installation Variations
Setpoint Wiring Variations
Digital Setpoint Source — RS485 Network,
USB to RS485 Converter (TESCOM™ Model #82948)
The USB protocol isn’t networkable, so applications requiring
multiple controllers must use RS485. RS485, wired through a
converter as shown in Figure 30, allows for up to 32 ER5000s to be
daisychained in a network.
WARNING
The controller must be disconnected from the power supply before
any additional wiring or change to jumper configuration is
performed. Do not reconnect the power supply until all additional
wiring connections have been made and are properly installed.
(continued next page)
TDB(+)
TDA(
-
)
GREEN GREEN
GREEN
BLUE
BLUE
BLUE

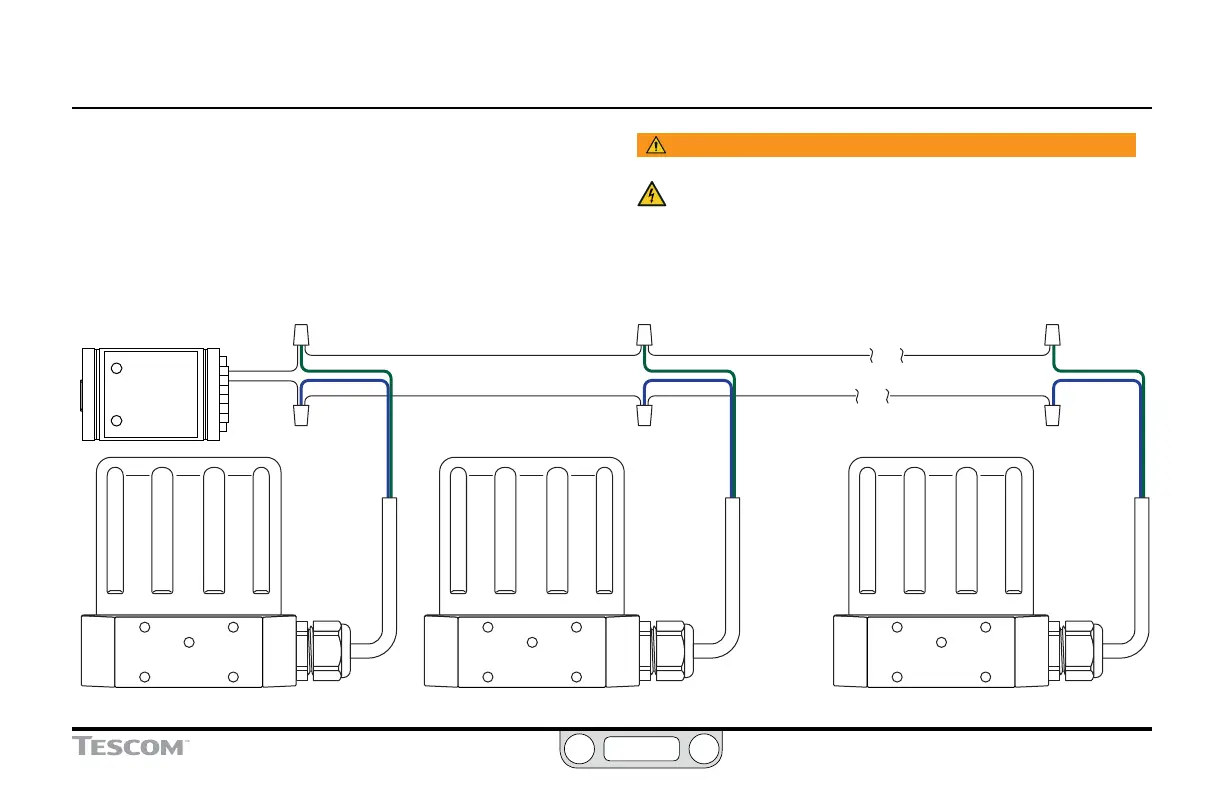

Figure 30: Multiple Controllers in an RS485 Network (USB to RS485 Converter)
To Next Page
