ER5000 —
95
Installation Variations
Feedback Wiring Variations
Two Wire Transducer

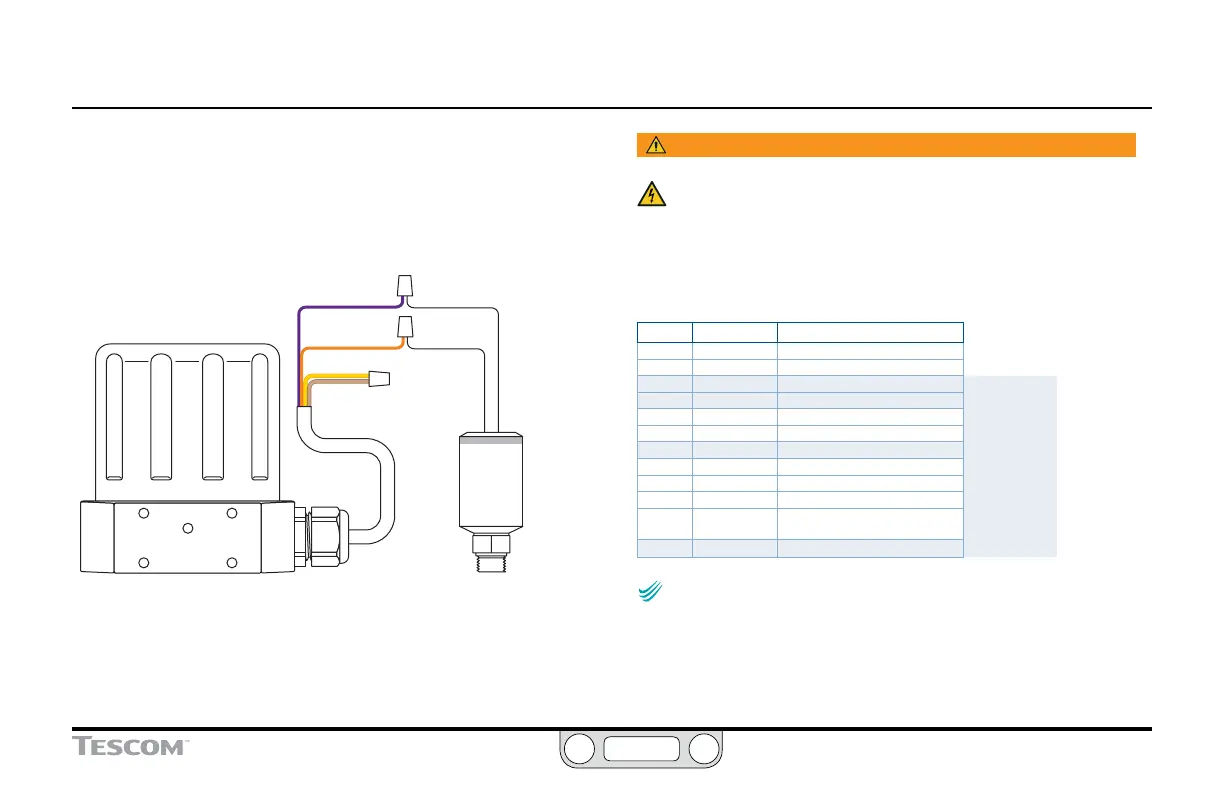

The correct wiring for two wire transducers is shown in Figure 31.
TRANSDUCER
VIOLET
YELLOW
+ SUPPLY
ORANGE
TAN
Figure 31: Two Wire Transducer Wiring
WARNING
The controller must be disconnected from the power supply before
any additional wiring or change to jumper configuration is
performed. Do not reconnect the power supply until all additional
wiring connections have been made and are properly installed.
Refer to Table 14 to verify correct wiring.
Table 14: Wiring for Two Wire Transducer
J3 Pins Wire Color Function
1 brown +setpoint input
2 red -setpoint input
3 orange +feedback input
4 yellow -feedback input
5 green -RS485 network connection
6 blue +RS485 network connection
7 violet +24V DC power
8 gray 24V return (power ground)
9 white +5V output (5 mA max.)
10 black analog signal/board ground
*11 *pink analog signal output
(active in Enhanced “F” models ONLY)
12 tan analog signal/board ground
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
Check that Jumper J6 (refer to Figure 19) is installed for
4–20 mA operation.
+ OUTPUT
