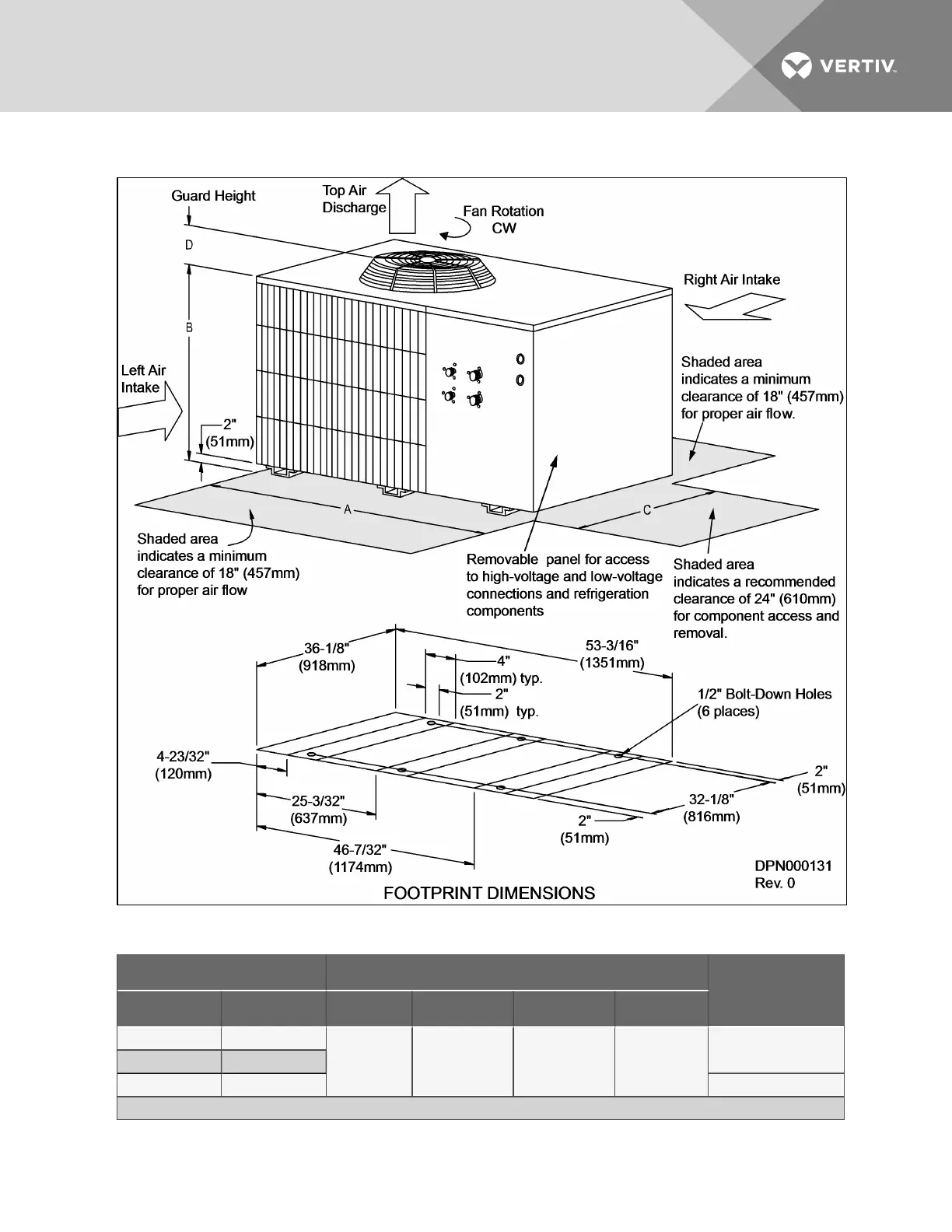

Figure 2.2 Dimensions, top air discharge
Model Numbers Dimensional Data in. (mm)
Module Net
Weight, lb. (kg)
60Hz 50Hz A B C D
PFH067A-H PFH066A-H
53 (1343) 36-1/4 (918) 38-1/2 (978) 5-1/2 (140)
488 (222)
PFHZ67A-L PFHZ66A-L
PFH096A-L PFH095A-L 570 (259)
Source: DPN000131, Rev. 0
