Site Preparation and Installation
37 Liebert
®
Mini-Mate2
™

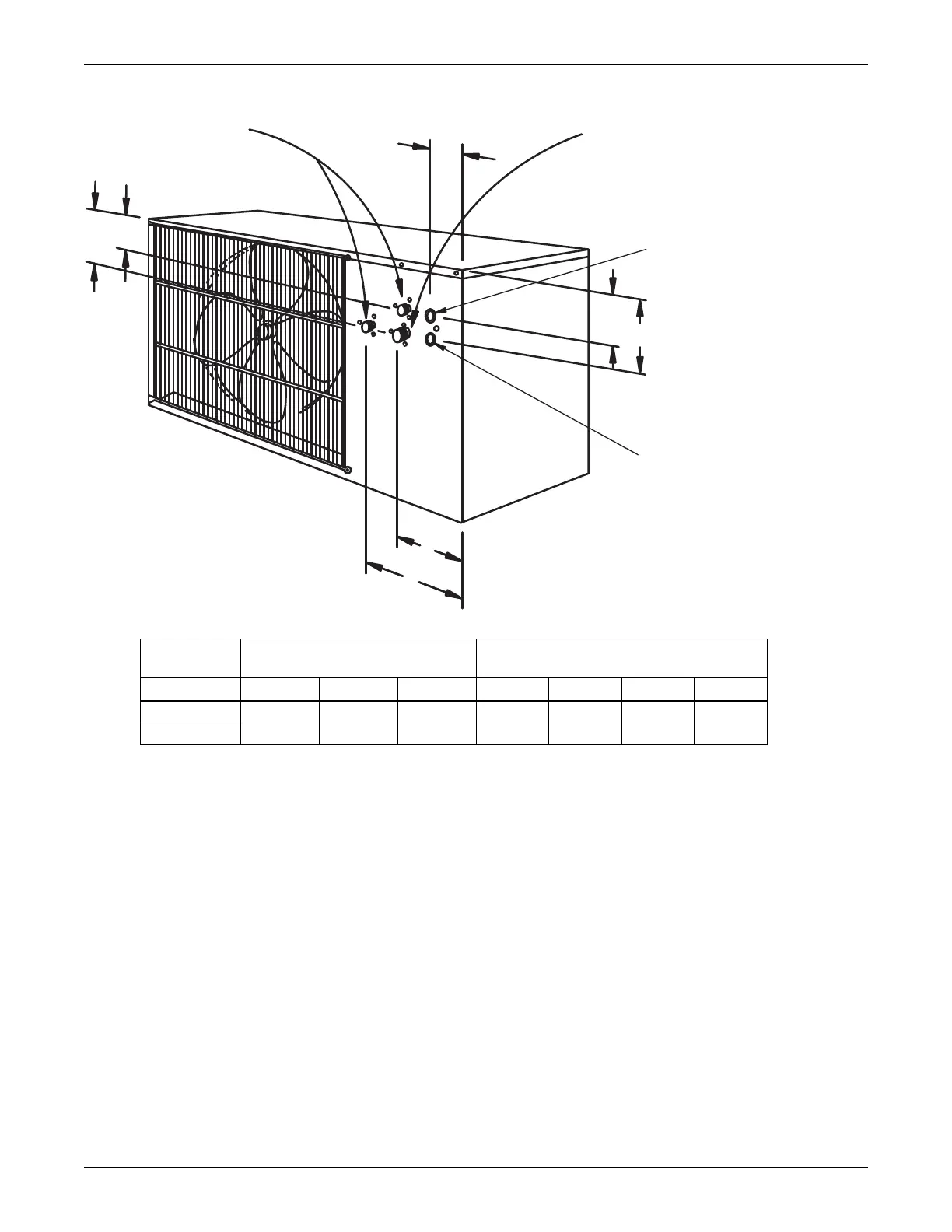

Figure 24 Piping and electrical connections
Table 15 Piping and electrical connections
Model
Numbers Electrical Connections, in. (mm) Piping Connections, in. (mm)
60 Hz A B C D E F G
PFH014A-L
2-1/4
(57)
5-1/4
(133)
7-3/4
(197)
8-3/4
(222)
— 5 (127)
7-1/4
(184)
PFH020A-L
Source: DPN000132, Rev. 1
B
C
A
F
G
D
E
DPN000132
Rev. 1
Liquid Line
Quick Connect
(Male Coupling)
Suction Line
Quick Connect
(Male Coupling)
Electrical Entrance for
High-Voltage Connection
Electrical Entrance for
Low-Voltage Connection
