EMI S1CG - S1 CG Model Specifications; S1 CG Electrical Specifications; S1 CG Cooling Performance Matching

S1CG/S1HG
S
in
g
le-Zone, S2CG/S2H
G
Dual-Zone
•
I
nstallation,
Op
eration and Maintenance Manual •
Comfort where it counts 34 P/N 240007754, Rev. C [3/19/2010]

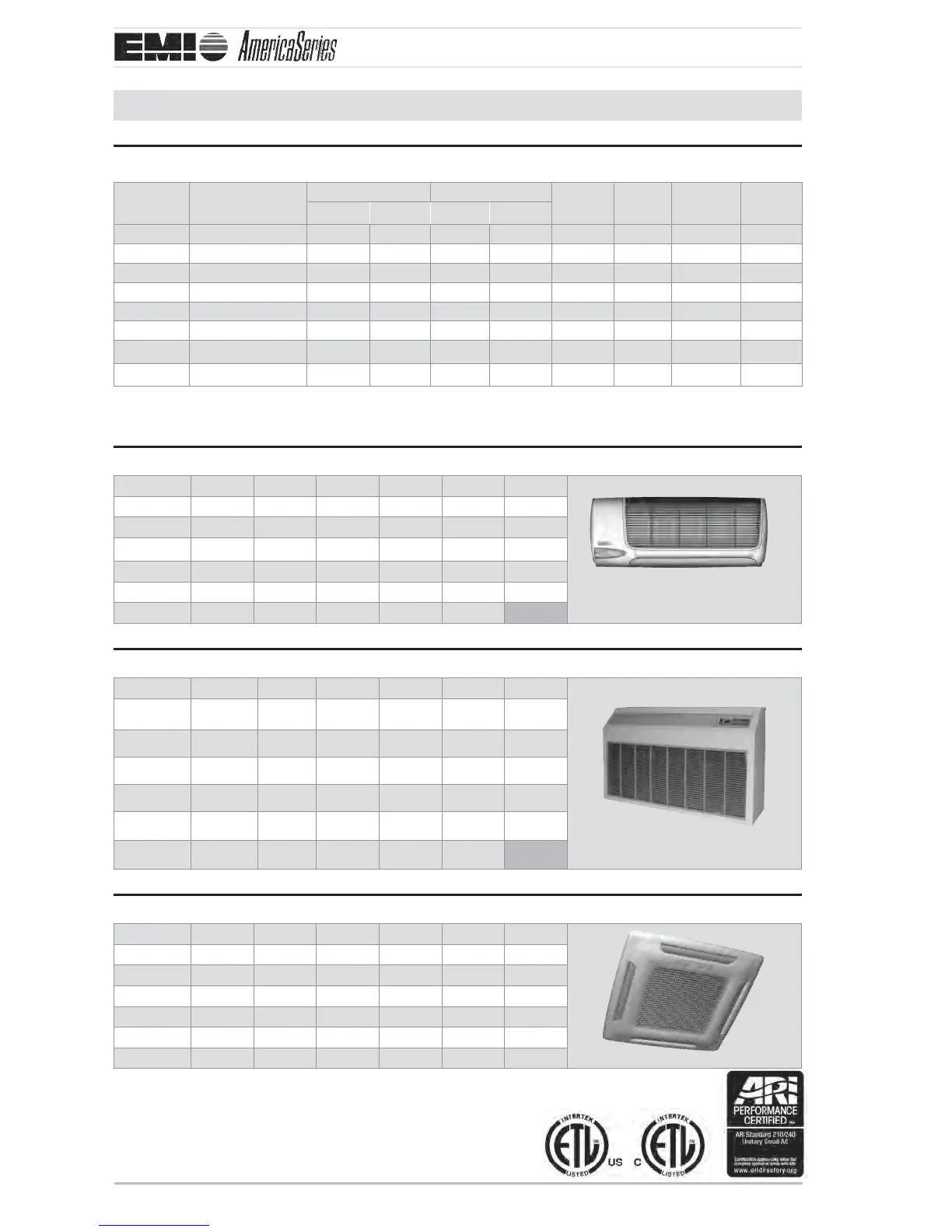

S1CG electrical specifi cationsTable 5
Model # Volts/HZ/PH
Fan Motor Compressor
Total
amps
Min
volt
M.C.A.
HACR
BRKR
AMPS HP RLA LRA
S1CG 9A 115/60/1 1.4 0.125 7.5 47 8.9 104 10.8 15
S1CG 2A 115/60/1 1.4 0.125 9.9 53 11.3 104 13.8 20
S1CG 9D 208/230/60/1 0.8 0.125 3.9 20 4.7 197 5.7 15
S1CG 2D 208/230/60/1 0.8 0.125 5.2 27 6.0 197 7.3 15
S1CG 8D 208/230/60/1 0.8 0.125 5.9 43 6.7 197 8.2 15
S1CG 4D 208/230/60/1 0.8 0.125 8.0 43 8.8 197 10.8 15
S1CG 3D 208/230/60/1 1.8 0.330 11.6 74 13.4 197 16.3 25
S1CG 6D 208/230/60/1 1.8 0.330 11.5 79 13.3 197 16.2 30
S1CG performance data: Matched with EMI Series Indoor Units
Cooling systems with wall unitsTable 6
Condenser Wall unit Btuh SEER SHR EER Ref.
WLC/WLH
S1CG9 WLHG09 9,000 13.0 0.74 12.2 R410A
S1CG2 WLHG12 12,000 13.0 0.68 11.9 R410A
S1CG8 WLHG24 18,000 13.0 0.77 12.0 R410A
S1CG4 WLHG24 23,800 13.0 0.67 11.4 R410A
S1CG3 WLCG30 28,200 13.0 0.79 11.7 R410A
S1CG6 WLCG36 33,600 13.0 0.69 11.6 R410A
Cooling systems with universal unitsTable 7
Condenser Universal Btuh SEER SHR EER Ref.
UNC/UNH
S1CG9
UNHG09 9,000 13.0
0.74 12.2
R410A
S1CG2
UNHG12 12,000 13.0
0.68 11.9
R410A
S1CG8 UNHG24
18,000 13.0
0.77 12.0 R410A
S1CG4 UNHG24
23,800 13.0
0.67 11.4 R410A
S1CG3 UNCG30
28,200 13.0
0.79 11.7 R410A
S1CG6 UNCG36 33,600 13.0 0.69 11.6 R410A
Cooling systems with cassette units (_Table 8 _ = G or H)
Condenser Cassette Btuh SEER SHR EER Ref.
CAC/CAH
S1CG9 CAH_9 9,000 13.0 0.77 11.4 R410A
S1CG2 CAH_12 12,000 13.0 0.67 11.5 R410A
S1CG8 CAH_24 18,000 13.0 0.75 12.7 R410A
S1CG4 CAH_24 24,000 13.0 0.69 12.1 R410A
S1CG3 CAC_36 30,000 13.0 0.77 12.4 R410A
S1CG6 CAC_36 36,000 13.0 0.72 11.5 R410A
Specifi cation and Dimensions (continued) (see NOTICE on page 33 )
