EMI S1CG - S1 HG Model Specifications; S1 HG Electrical Specifications; S1 HG Performance Data

S1CG/S1HG
S
in
g
le-Zone, S2CG/S2H
G
Dual-Zone
•
I
nstallation,
Op
eration and Maintenance Manual •
P/N 240007754, Rev. C [3/19/2010] 35 Made in the USA

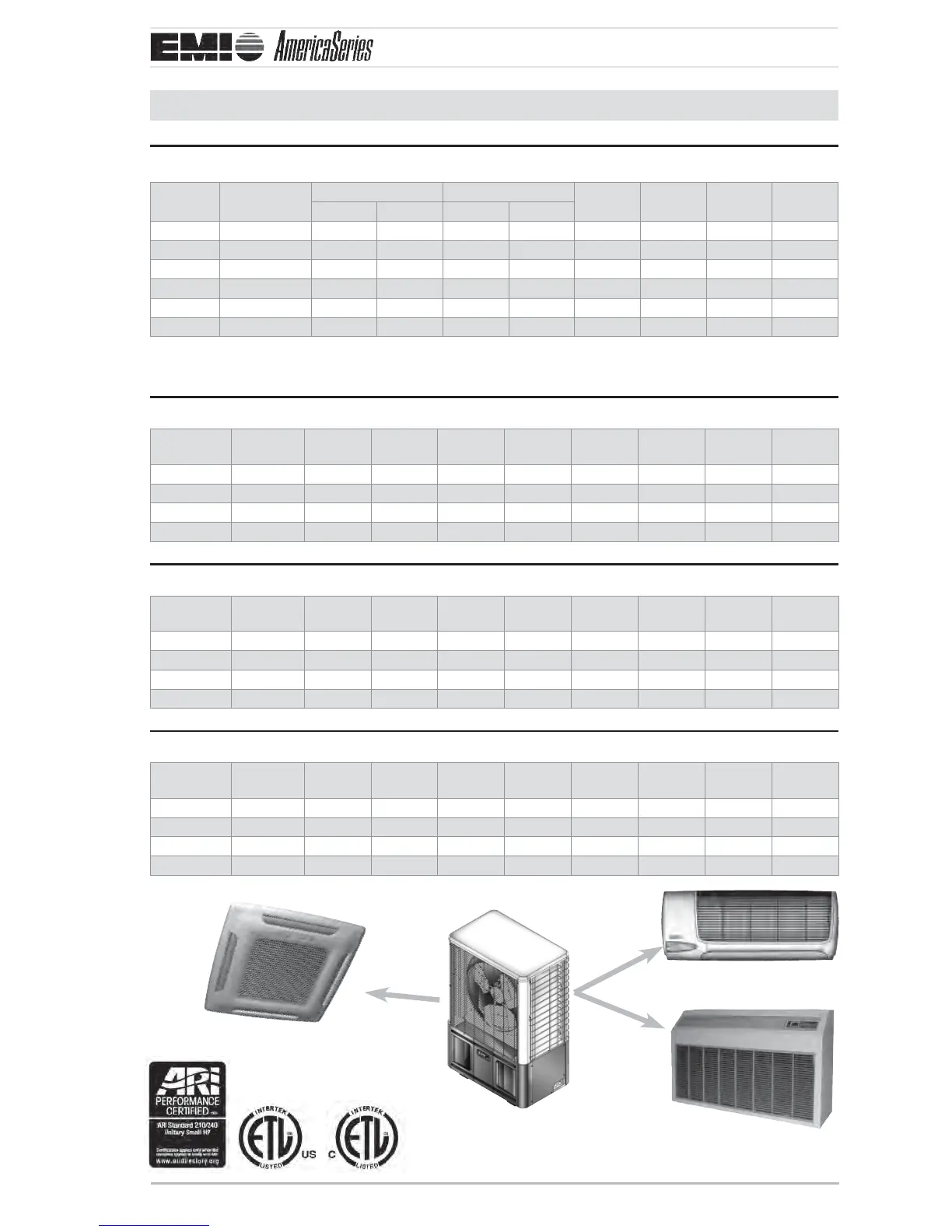

S1CG/S1HG
Single zone
WLC/WLH
CAC/
CAH
UNC/UNH
S1HG electrical specifi cationsTable 9
Model # Volts/HZ/PH
Fan motor Compressor
Total
amps
Min
volt
M.C.A.
HACR
BRKR
AMPS HP RLA LRA
S1HG9A 115/60/1 1.4 0.125
7.5 47 8.9 104 10.8 15
S1HG2A 115/60/1 1.4 0.125 9.9 53 11.3 104 13.8 20
S1HG9D 208/230/60/1 0.8 0.125 3.9 20 4.7 197 5.7 15
S1HG2D 208/230/60/1 0.8 0.125 5.2 27 6.0 197 7.3 15
S1HG8D 208/230/60/1 0.8 0.125 5.9 43 6.7 197 8.2 15
S1HG4D 208/230/60/1 0.8 0.125 8.0 43 8.8 197 10.8 15
S1HG performance data: Matched with EMI Series Indoor Units
Heat pump systems with wall unitsTable 10
Condenser Wall unit
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
S1HG9 WLHG09 9,000 9,000 13.0 7.7 0.72 12.8 3.3 R410A
S1HG2 WLHG12 12,000 11,400 13.0 7.7 0.69 11.8 3.3 R410A
S1HG8 WLHG24 18,000 17,600 13.0 7.7 0.76 11.9 3.5 R410A
S1HG4 WLHG24 23,800 20,600 13.0 7.7 0.71 11.9 3.5 R410A
Heat pump systems with universal unitsTable 11
Condenser Universal
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
S1HG9 UNHG09 9,000 9,000 13.0 7.7 0.72 12.8 3.3 R410A
S1HG2 UNHG12 12,000 11,400 13.0 7.7 0.69 11.8 3.3 R410A
S1HG8 UNHG24 18,000 17,600 13.0 7.7 0.76 11.9 3.5 R410A
S1HG4 UNHG24 23,800 20,600 13.0 7.7 0.71 11.9 3.5 R410A
Heat pump systems with cassette units (_Table 12 _ = G or H)
Condenser Cassette
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
S1HG9000 CAH_9 9,000 8,200 13.0 7.7 0.74 11.8 3.2 R410A
S1HG2000 CAH_12 12,000 10,600 13.0 7.7 0.67 11.5 3.0 R410A
S1HG8000 CAH_24 18,000 16,400 13.0 7.7 0.76 12.1 3.4 R410A
S1HG4000 CAH_24 24,000 20,400 13.0 7.7 0.69 12.0 3.3 R410A
Specifi cation and Dimensions (continued) (see NOTICE on page 33 )
