EMI S1CG - S2 CG Model Specifications; S2 CG Electrical Specifications; S2 CG Cooling Performance Matching

S1CG/S1HG
S
in
g
le-Zone, S2CG/S2H
G
Dual-Zone
•
I
nstallation,
Op
eration and Maintenance Manual •

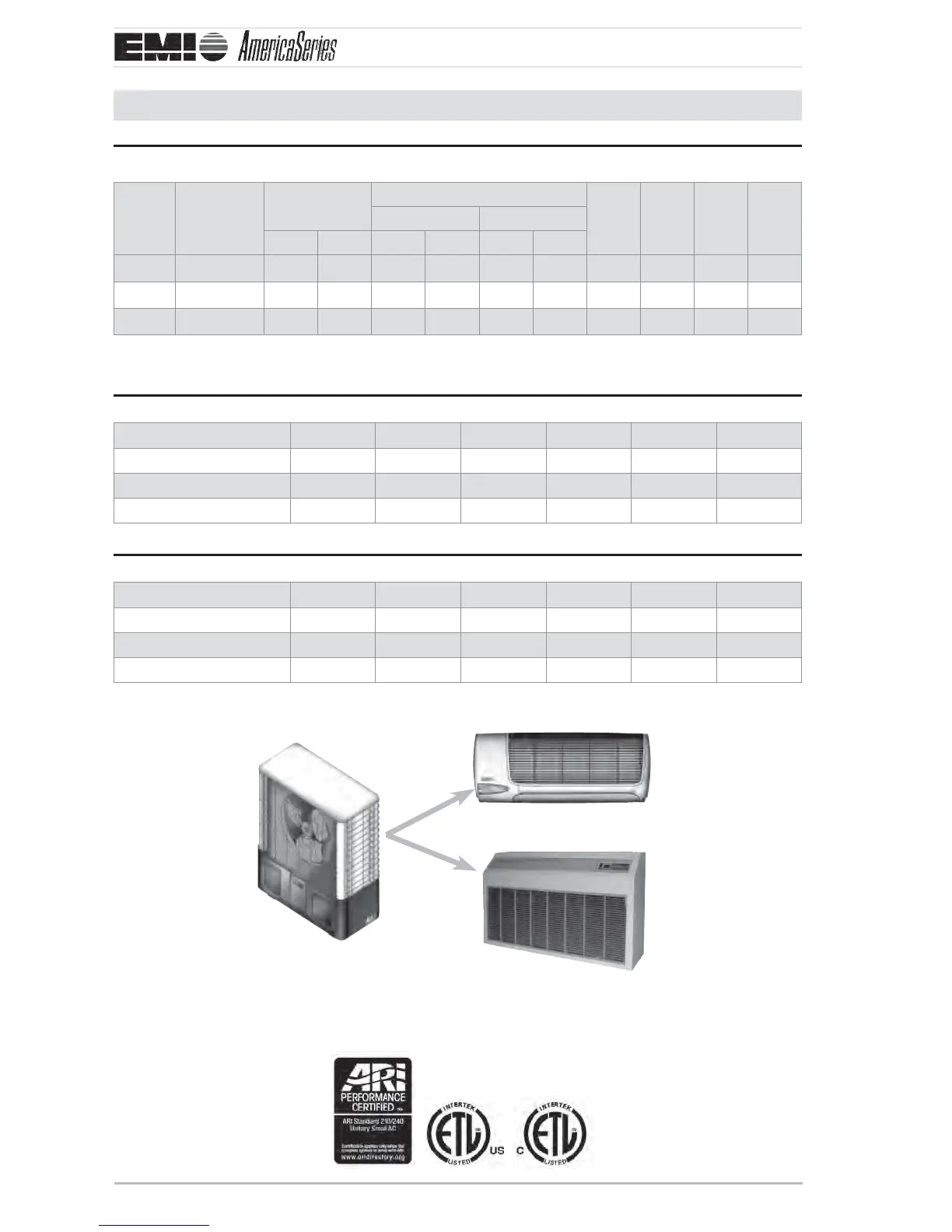

Comfort where it counts 36 P/N 240007754, Rev. C [3/19/2010]
S2CG/S2HG
Dual zone
WLC/WLH
UNC/UNH
S2CG electrical specifi cationsTable 13
Capacity Volts/HZ/PH
Fan motor
Compressor
Total
amps
Min
volt
M.C.A.
HACR
BRKR
Circuit #1 Circuit #2
AMPS HP RLA LRA RLA LRA
9900 208/230/60/1 0.8 0.125
3.9 20 3.9 20 7.8 197 8.7 15
9200 208/230/60/1 0.8 0.125
3.9 20 5.2 27 8.8 197 10 15
2200 208/230/60/1 0.8 0.125
5.2 27 5.2 27 9.8 197 11 15
S2CG performance data: Matched with EMI Series Indoor Units
S2CG cooling systems with two wall unitsTable 14
Wall units Condenser Btuh SEER SHR EER Ref.
WLHG09+WLHG09 S2CG99 18,000 13.0 0.73 12.1 R410A
WLHG12+WLHG12 S2CG22 24,000 13.0 0.68 12.0 R410A
WLHG09+WLHG12 S2CG92 21,000 13.0 0.70 12.0 R410A
S2CG cooling systems with two universal unitsTable 15
Air handlers Condenser Btuh SEER SHR EER Ref.
UNHG09 + UNHG09 S2CG99 18,000 13.0 0.73 12.1 R410A
UNHG12 + UNHG12 S2CG22 24,000 13.0 0.68 12.0 R410A
UNHG09 + UNHG12 S2CG92 21,000 13.0 0.70 12.0 R410A
Specifi cation and Dimensions (continued) (see NOTICE on page 33 )
