EMI S1CG - S2 HG Model Specifications; S2 HG Electrical Specifications; S2 HG Performance Data

S1CG/S1HG
S
in
g
le-Zone, S2CG/S2H
G
Dual-Zone
•
I
nstallation,
Op
eration and Maintenance Manual •
P/N 240007754, Rev. C [3/19/2010] 37 Made in the USA

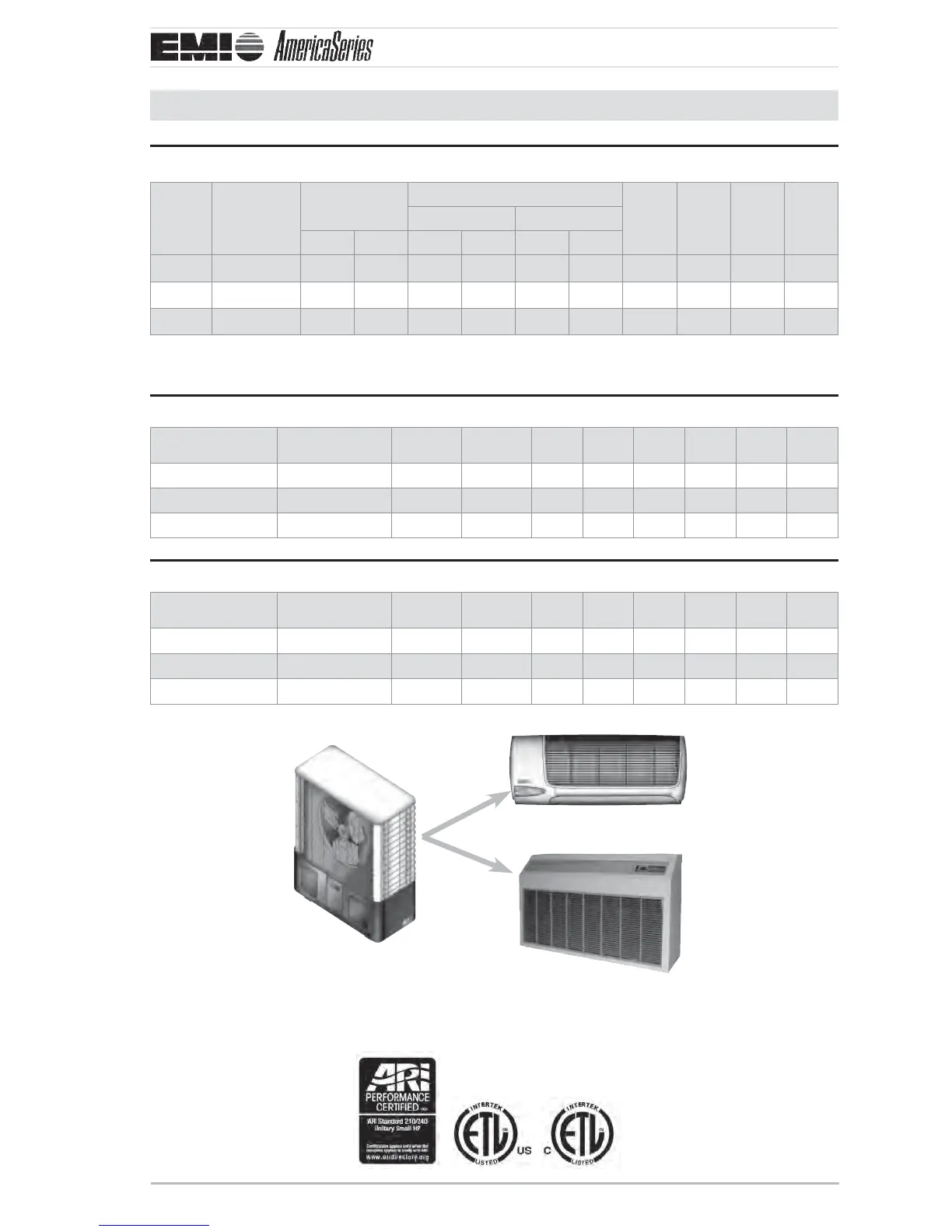

Specifi cation and Dimensions (continued) (see NOTICE on page 33 )
S2HG electrical specifi cationsTable 16
Capacity Volts/HZ/PH
Fan motor
Compressor
Total
amps
Min
volt
M.C.A.
HACR
BRKR
Circuit #1 Circuit #2
AMPS HP RLA LRA RLA LRA
9900 208/230/60/1 0.8 0.125
3.9 20 3.9 20 7.8 197 8.7 15
9200 208/230/60/1 0.8 0.125
3.9 20 5.2 27 8.8 197 10 15
2200 208/230/60/1 0.8 0.125
5.2 27 5.2 27 9.8 197 11 15
S2HG performance data: Matched with EMI Series Indoor Units
Heat pump systems with wall unitsTable 17
Wall units Condenser
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
WLHG09+WLHG09 S2HG99 18,000 17,400 13.0 7.7 0.73 12.1 3.2 R410A
WLHG12+WLHG12 S2HG22 24,000 21,000 13.0 7.7 0.68 12.0 3.2 R410A
WLHG09+WLHG12 S2HG92 21,000 19,200 13.0 7.7 0.70 12.0 3.2 R410A
Heat pump systems with universal unitsTable 18
Air handlers Condenser
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
UNHG09 + UNHG09 S2HG99 18,000 17,400 13.0 7.7 0.73 12.1 3.2 R410A
UNHG12 + UNHG12 S2HG22 24,000 21,000 13.0 7.7 0.68 12.0 3.2 R410A
UNHG09 + UNHG12 S2HG92 21,000 19,200 13.0 7.7 0.70 12.0 3.2 R410A
S2CG/S2HG
Dual zone
WLC/WLH
UNC/UNH
