3.5.2.
Test setup with CNV 50a/508 Nx with earth set

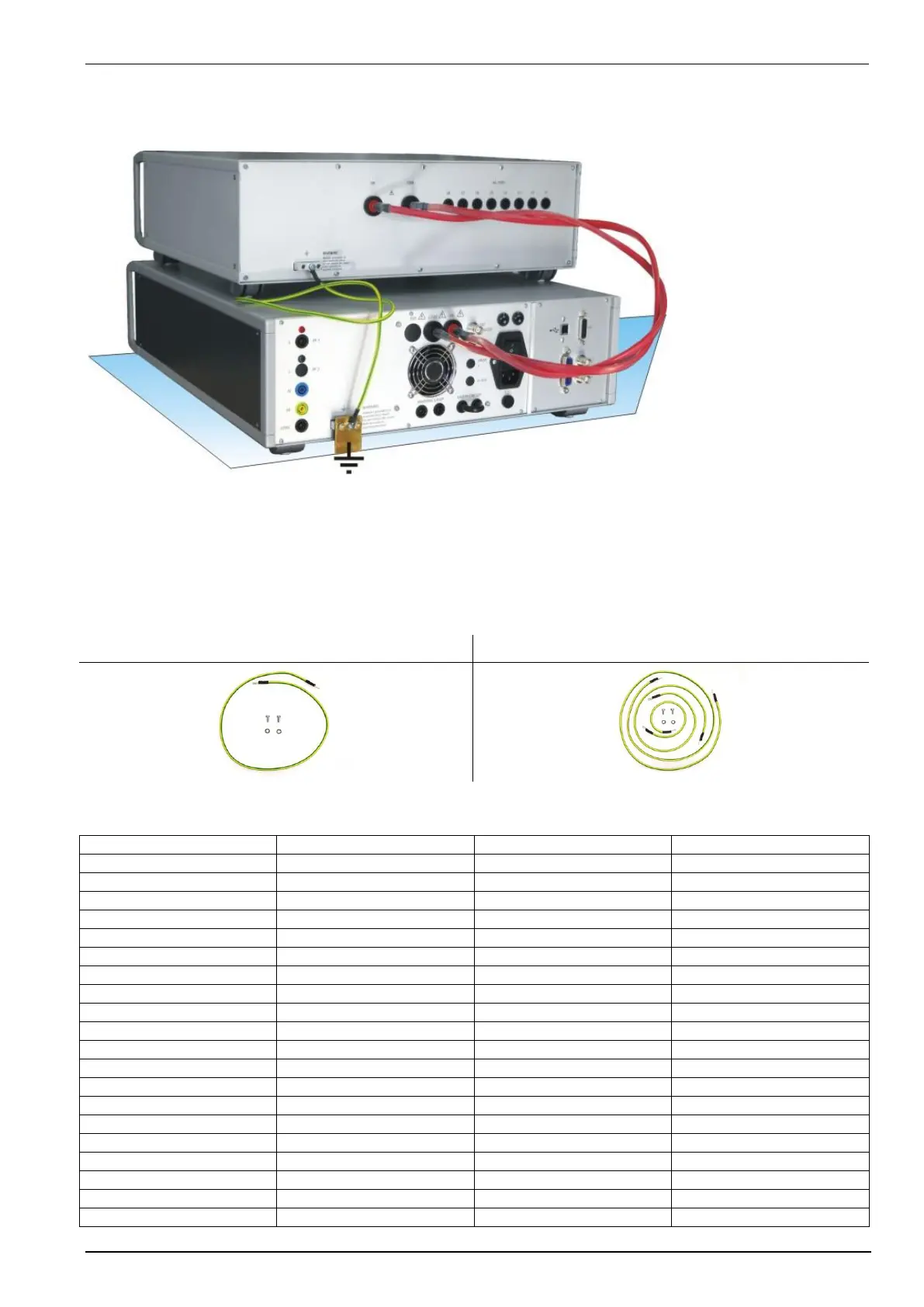

The figure below shows the earth connection of a CNV 504/508 with an earth set
Example of a test setup with an UCS 500N5 and CNV 508N2.3. It is important to connect GND wire the CNV
504/508 to the impulse generator as short as possible. Tha HV impulse cables between the generator and CNV
504/508 must be twisted for mimimize the magnetig field influence.
The Ground must be connected to the Groundplane, if there is one, and to the GND of the building
Erdset
The following earthsets are available:
Art :109045: Erdset 0.6m
Art :109046: Erdset 0.25m / 0.55m / 1.0m
Following CNV includes the Earthset Art. 109046 in the delivery:
CNV 504 4 wires
CNV 508 8 wires
CNV 510 10 wires
CNV 516
CNV 504 N2
CNV 508 N2
CNV 510 S1
CNT 516
CNV 504 N2.1
CNV 508 N2.1
CNT 510 S1
CNV 504 N2.2
CNV 508 N2.2
CNV 504 N2.3
CNV 508 N2.3
CNV 504 N3
CNV 508 N2.5
CNV 504 N3.1
CNV 508 N3
CNV 504 N3.2
CNV 508 N3.1
CNV 504 N3.3
CNV 508 N3.2
CNV 504 N7
CNV 508 N3.3
CNV 504 N7.1
CNV 508 N4
CNV 504 N7.2
CNV 508 N4.1
CNV 504 N7.3
CNV 508 S1
CNV 504 N8
CNV 508 S3
CNV 504 N9
CNV 508 S8
CNV 504 S5
CNV 508 S10
CNV 504 S7
CNV 508 S12
CNV 504 S7.1
CNV 508 S16
CNV 504 S9
CNV 508 S17
CNV 504 S19
CNV 508 S19
CNT 508
