EM TEST CNV 504N1/N2 / 508N1/N2

Operating manual V 1.20 20 / 23

7.2.

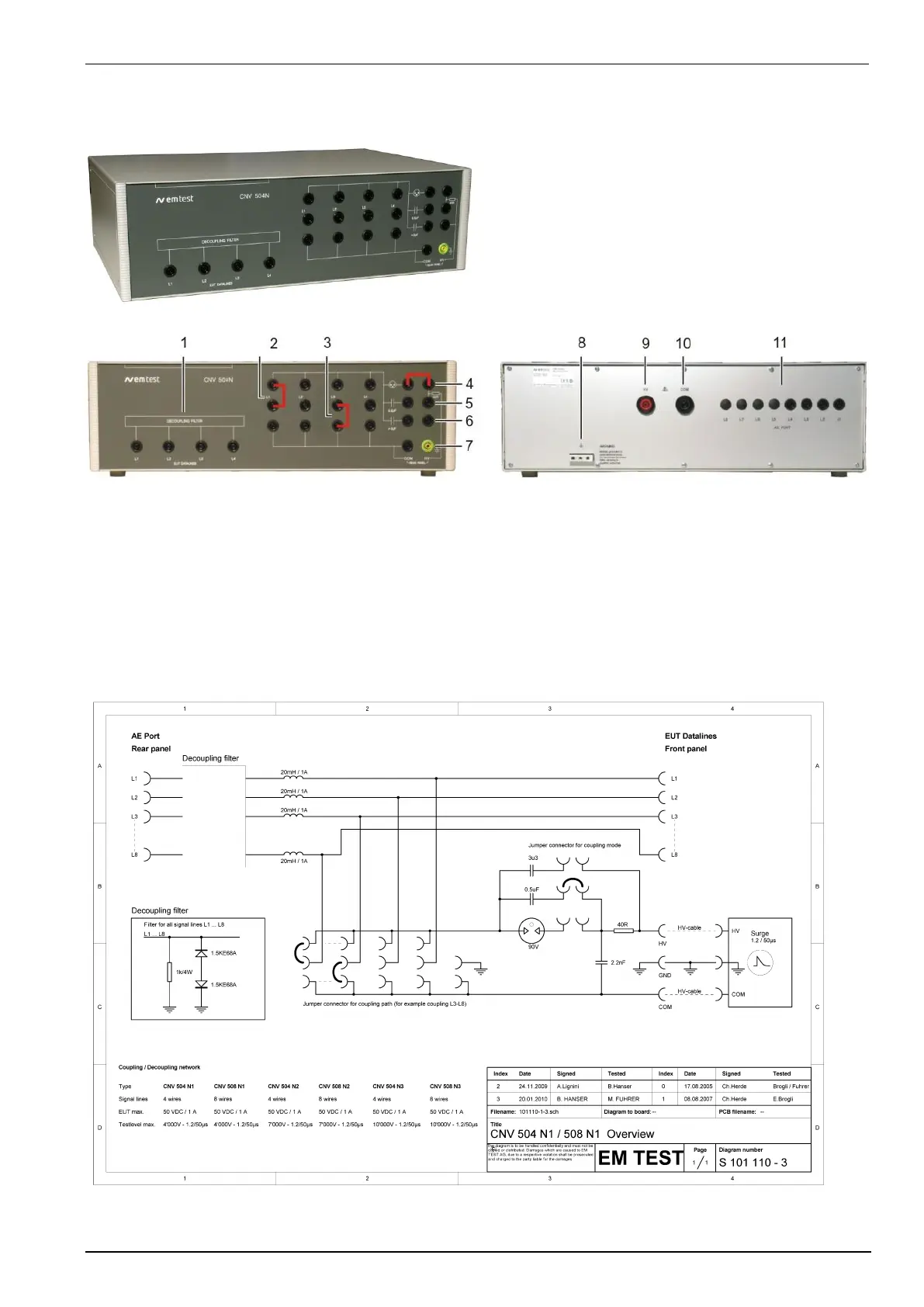

Coupling network CNV 504N2

CNV 504 N2

1. Output data lines to EUT

2. Coupling data lines - HV (HV - L1)

3. Coupling data lines - COM ( L3- COM)

4. Coupling with gas arrestor / 40

5. Coupling with 0.5F / 40

6. Coupling ringwave >3 F

7. Connection PE / COM

8. Earth bolt / PE connection

9. HV-IN connector surge 1.2/50

10. COM Connector Surge 1.2/50

11. Input Datelines AE port

7.2.1.

Diagram CNV 504N2 / 508N2
