EMTEST N Series - Impulse Generators

EM TEST CNV 504N1/N2 / 508N1/N2
Operating manual V 1.20 6 / 23

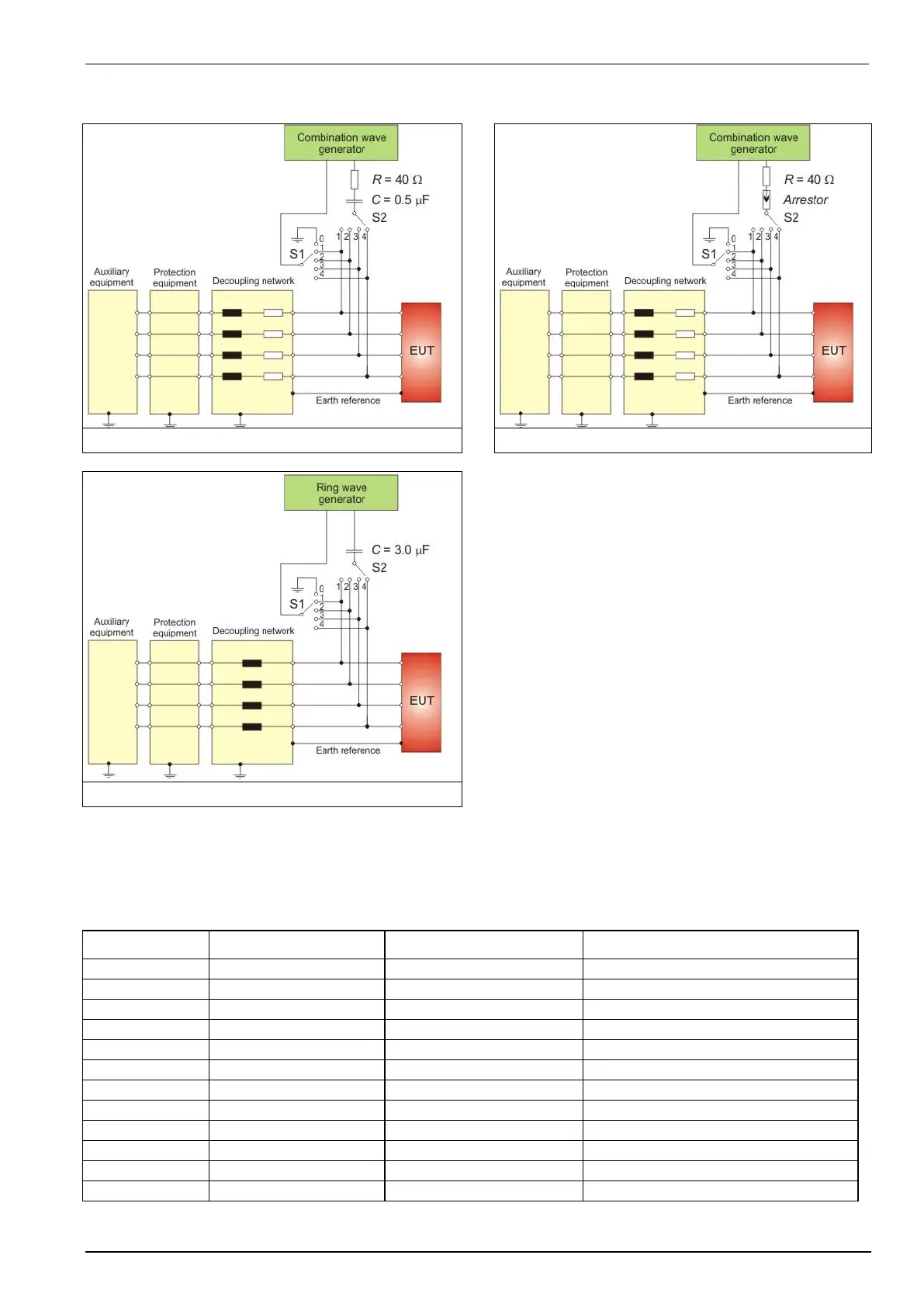

IEC 61000-4-5 Ed.2 Figure 11
IEC 61000-4-5 Ed.2 Figure 12
IEC 61000-4-12 Figure 9
1.2.
Impulse generators
The CNV 504/CNV 508 can be used for the following surge generators:
Device
previous name
Pulse
Remark
compact NX5
1.2/50s - 8/20s
up to 5000V as per IEC 61000-4-5
UCS 500N4
UCS 500M4
1.2/50s - 8/20s
up to 4000V as per IEC 61000-4-5
UCS 500N5
1.2/50s - 8/20s
up to 5000V as per IEC 61000-4-5
UCS 500M6
1.2/50s - 8/20s
up to 6600V as per IEC 61000-4-5
UCS 500N6
UCS 500M6B
1.2/50s - 8/20s
up to 6600V as per IEC 61000-4-5
UCS 500N7
1.2/50s - 8/20s
up to 7000V as per IEC 61000-4-5
VCS 500N4
VCS 500
1.2/50s - 8/20s
up to 4000V as per IEC 61000-4-5
VCS 500N8
VCS 500M8
1.2/50s - 8/20s
up to 8000V as per IEC 61000-4-5
VCS 500N10
VCS 500M10
1.2/50s - 8/20s
up to 10000V as per IEC 61000-4-5
TSS 500M4
10/700s / 1.2/50s
up to 4000V as per IEC 61000-4-5
TSS 500M2B
1.2/50s - 8/20s
up to 2000V as per Bellcore
TSS 500M2F
<2/>10s
up to 2500V as per FCC part 68
