EMTEST N Series - Transferfunktion in Function with the EUT Impedance

EM TEST CNV 504N1/N2 / 508N1/N2
Operating manual V 1.20 23 / 23
8.3.
Transferfunktion in function with the EUT Impedance

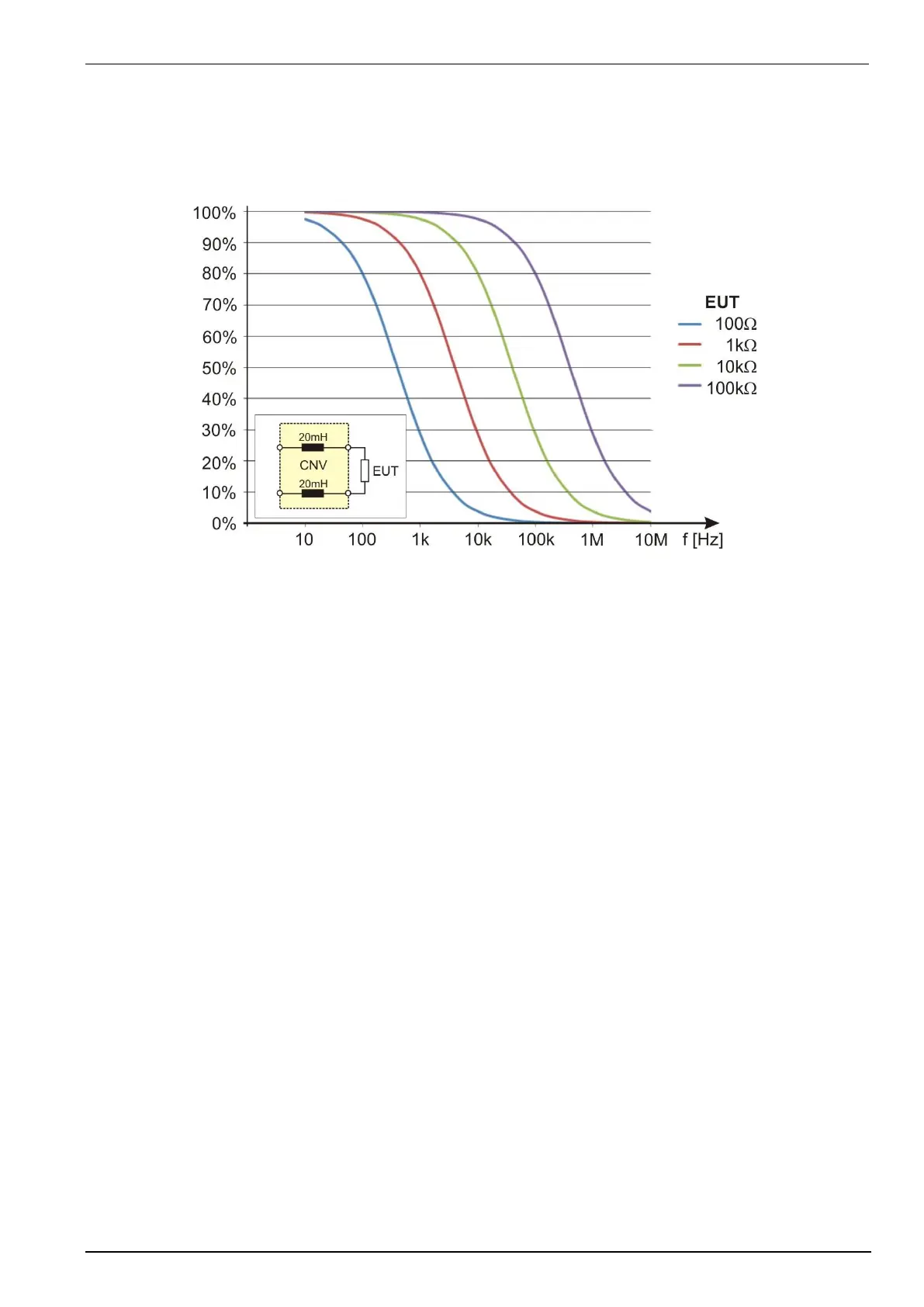

The figure below illustrate the transferfunction respective the voltage drop over the inductances of the coupling
network (2x20mH). The graph shows the influence of different UET impfdances. Is only one inductance used, the
voltage drop is reduced and the ratio is to recalculate.
Transferfunktion f( EUT impedance and frequency)
