emz smart Sol - Display

Page 12
DISPLAY
Schema 1
04. 07. 2015 10:35
1.3.2 Röhrenkollektor
04. 07. 2015 10:35
Aktivierung
Start
n-solar 1
t-ein
T-ein
80%
10min
20.0°C

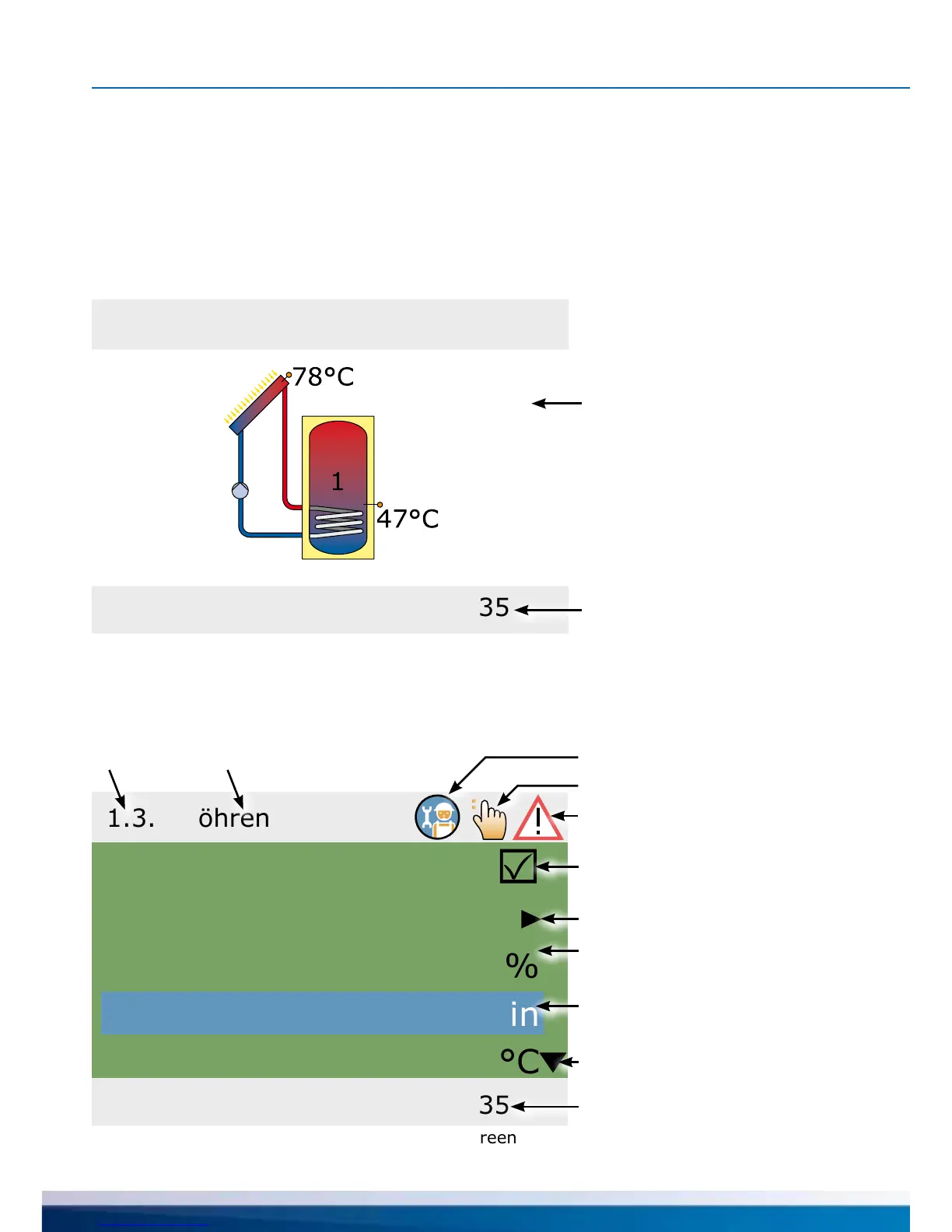

Display elements; example: information screen
For indication of the operating mode and for communication in case of set-up,
malfunction, modication and evaluation, the differential temperature controller
smart Sol is equipped with a coloured full graphics display which is permanently backlit.
The display is active as long as there is supply voltage on the controller.
After a preset time (30 - 255 s), backlighting is dimmed to 10%.
Active system
with current
temperatures
Date and time
Display elements; example: communication screen
Activatable
menu item
Selection menu
Scroll arrow
Check box
Sub menu arrow
Date and time
Professional mode
Manual mode
Message
Number and name of menu
