Page 84

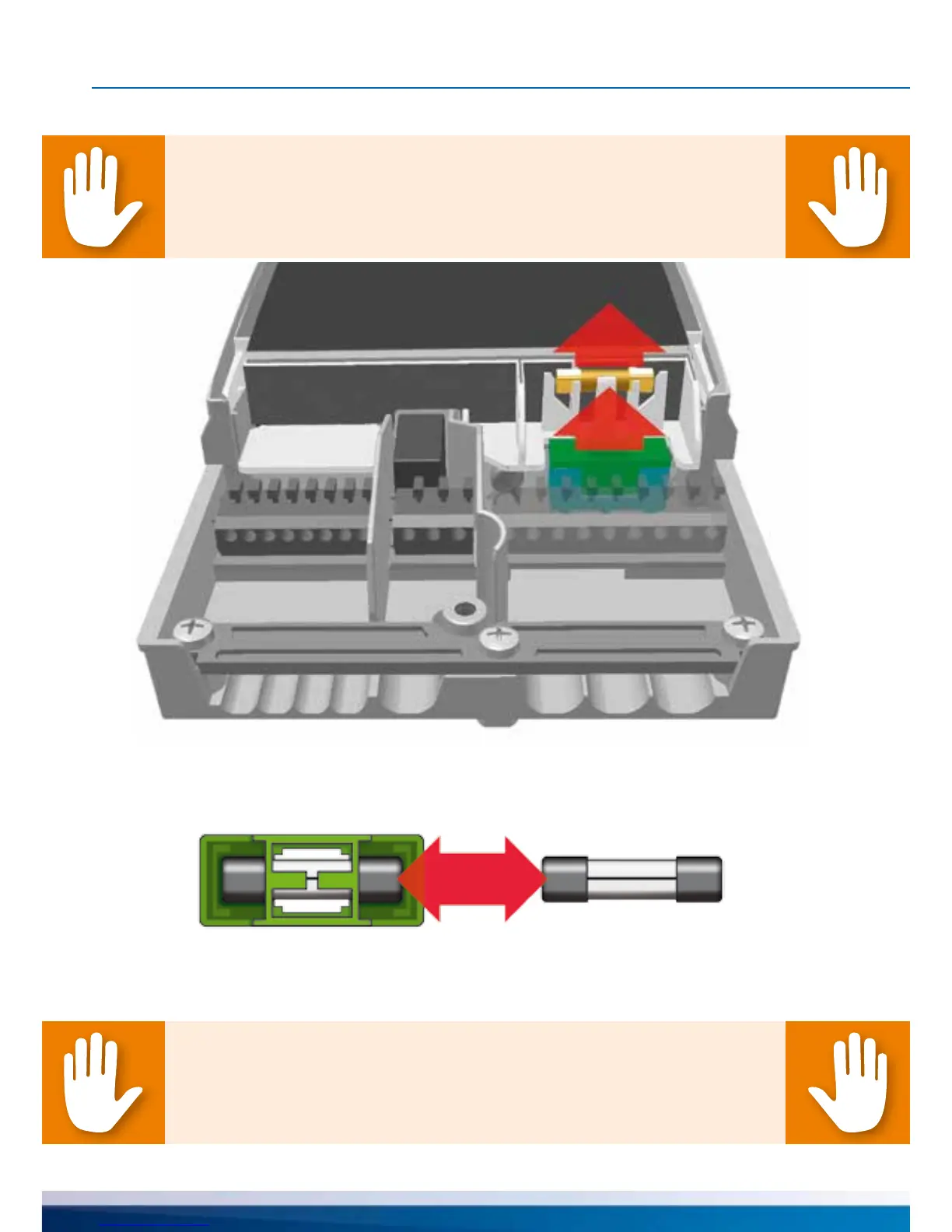

REPLACEMENT OF FUSE
To remove the device fuse, open the terminal cover.
Above the right-hand group of terminals, the fuse base and a spare fuse are
located. Pull the upper part of the support and the spare part out.
The fuse link is clamped in the formed piece and is removed together with the plastic
holder.
Now, push the micro-fuse laterally out of its holder.
The fuse link is installed by reversing the above order.
Make sure to procure yourself immediately a new spare fuse!
Danger!
Mortal danger due to electrocution! Before opening
the terminal cover, disconnect the power supply reliably!
Danger!
Risk of re due to overload or short-circuit!
Only use fuse links type 5 x 20 mm, T2A!
