Page 23
TS3
TS2
TS1
RO2
RO1
Tank 1
T1
Collector sensor 1
Solar
circuit
pump 1
Tank
sensor 1,
bottom
Tank sensor 1,
top
Charging area valve

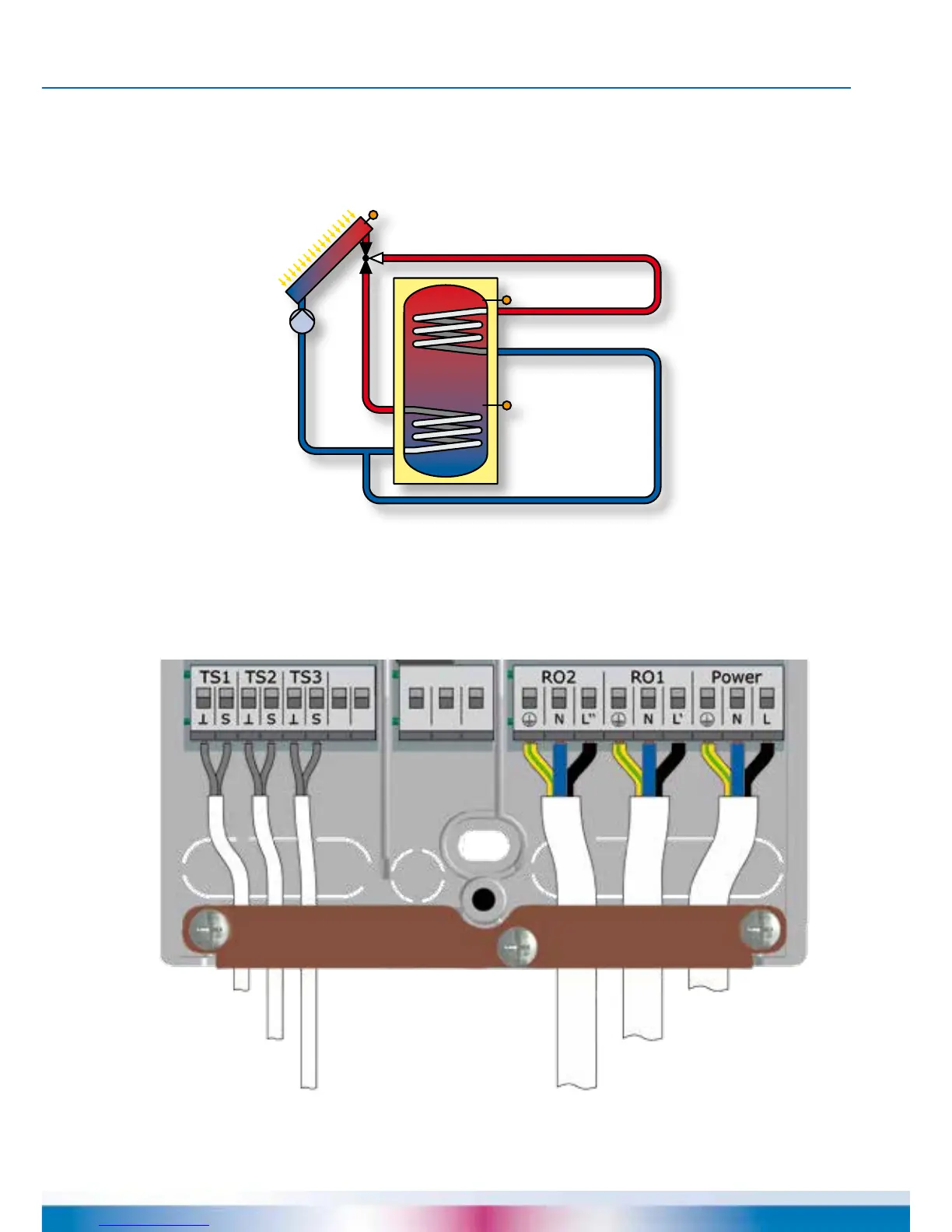

HYDRAULIC SYSTEM 3
Charging area valveTank sensor 1, top
Connection to
power supply
Collector sensor 1
Solar circuit pump 1
Tank sensor 1, bottom
