emz smart Sol - Page 26

Page 26
RO2
TS1
RO1
TS2
TS4
Tank 1
T1
Collector
sensor 1
Solar
circuit
pump 1
Tank
sensor 1,
bottom
Heat
exchanger
sensor
Heat
exchanger
pump
TS3
Tank sensor 1,
top

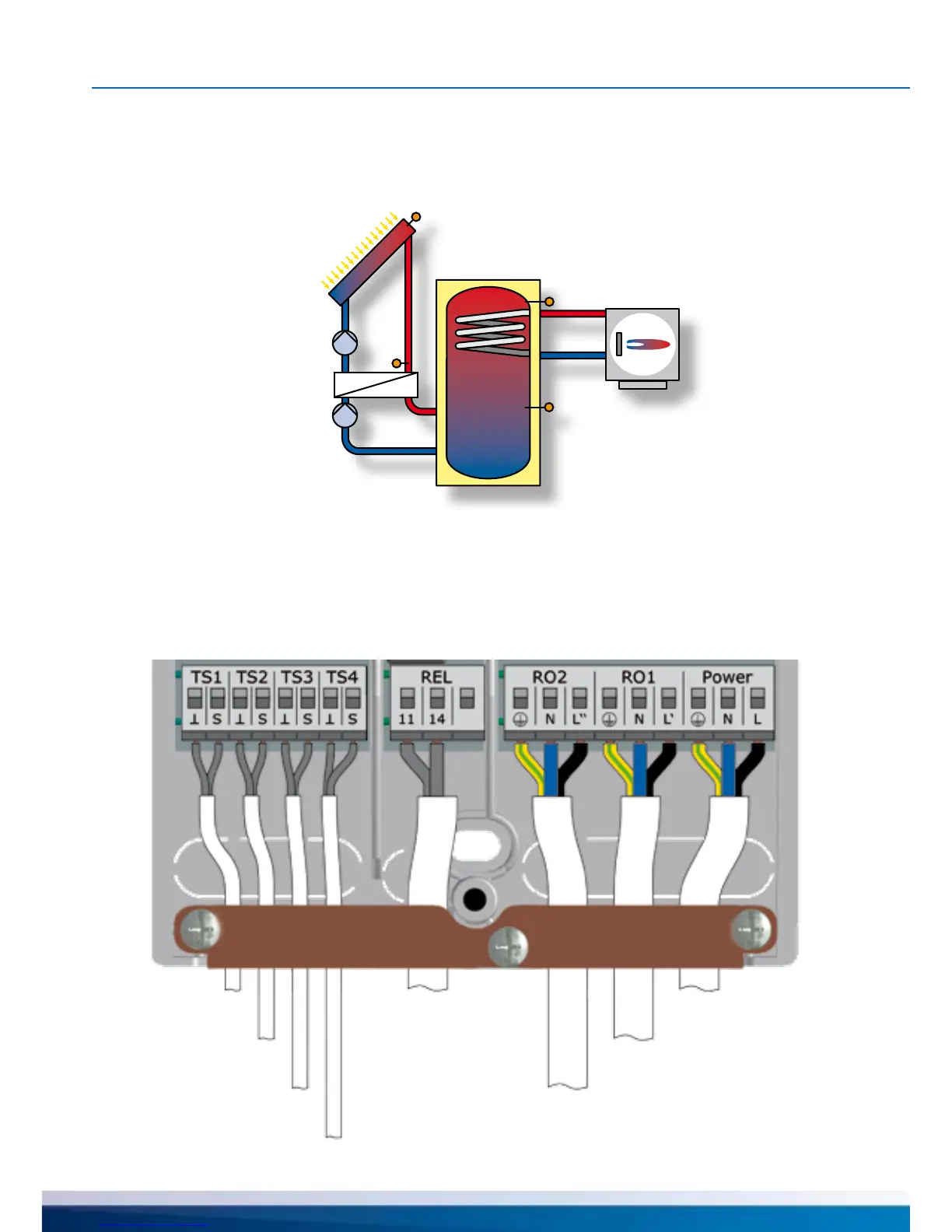

HYDRAULIC SYSTEM 6
Heat exchanger sensor
Tank sensor 1, top Heat exchanger pump
Connection to
power supply
Collector sensor 1
Solar circuit pump 1
Tank sensor 1, bottom
heating boiler con-
nection according to
page 45-46
