Page 30
TS2
TS1
TS3
RO1
RO2
Tank 1
T1
Tank 2
T2
Collector
sensor 1
Solar
circuit
pump 1
Tank
sensor 1,
bottom
Tank
sensor 2,
bottom
Solar circuit pump 2

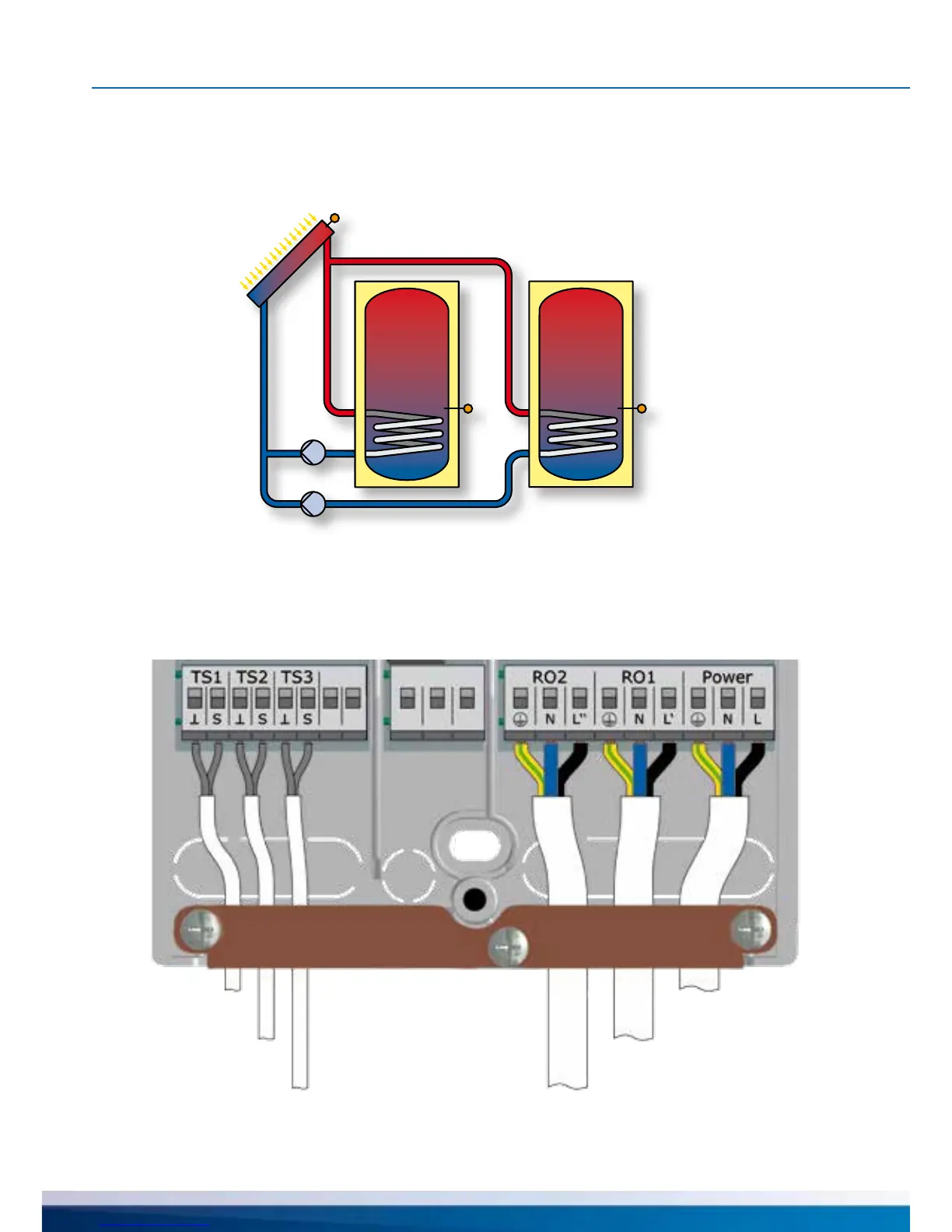

HYDRAULIC SYSTEM 10
Tank sensor 2, bottom Solar circuit pump 2
Connection to
power supply
Collector sensor 1
Solar circuit pump 1
Tank sensor 1, bottom
Note: Priority charging has
been set to T2 in the factory.
