TS2
RO1
TS1
RO2
TS4
Tank 1
T1
Tank 2
T2
Collector
sensor 1
Solar circuit
pump 1
Tank
sensor 1,
bottom
Tank switching valve 1
Tank
sensor 2,
bottom
TS3
Tank sensor 2,
top

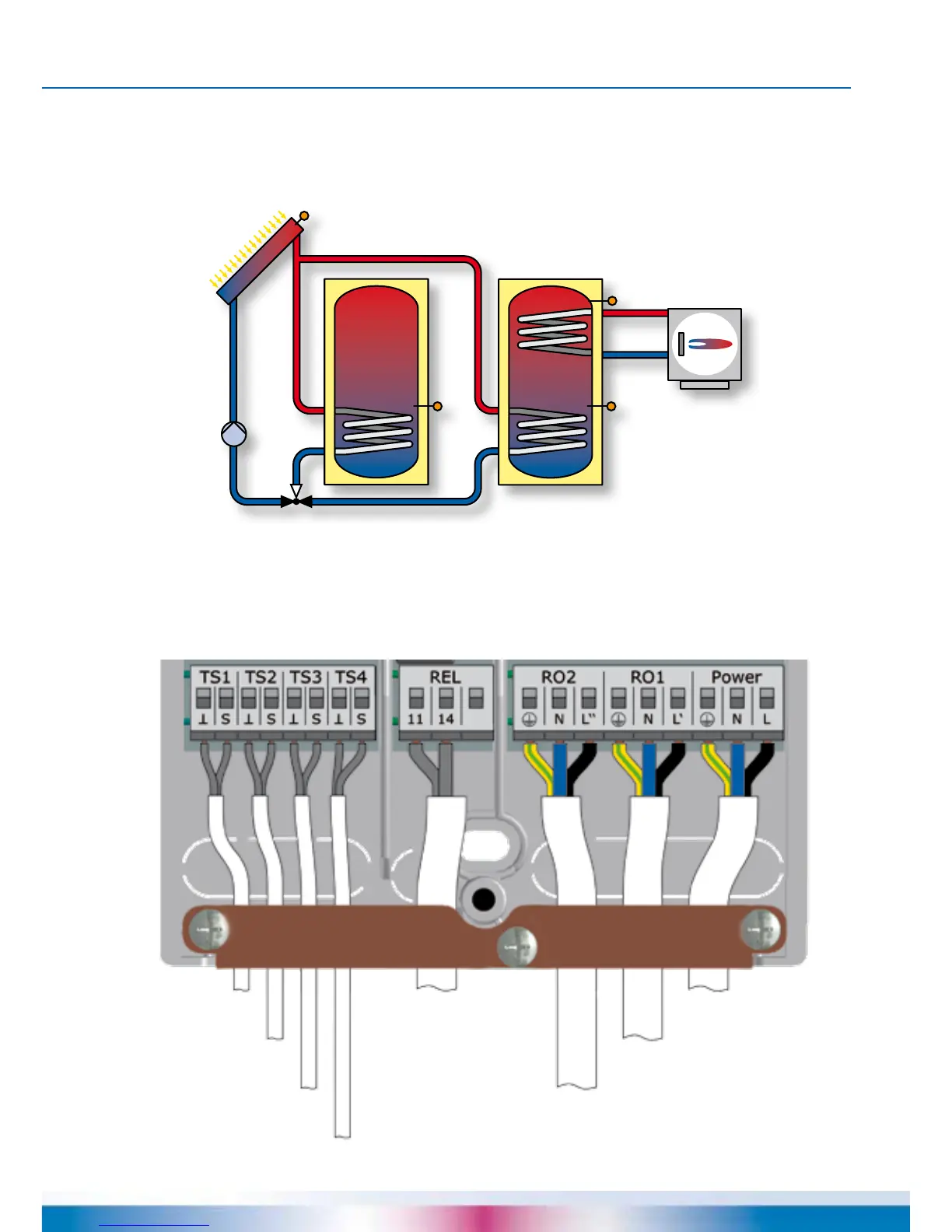

HYDRAULIC SYSTEM 13
Tank sensor 2, bottom
Note: Priority charging has
been set to T2 in the factory.
Tank switching valveTank sensor 2, top
Connection to
power supply
Collector sensor 1
Solar circuit pump 1
Tank sensor 1, bottom
heating boiler con-
nection according to
page 45-46
