TS3
TS2
TS1
RO1
TS4
Swimming
pool sensor
Heat exchanger pump
REL
1 Collector sensor 2
Solar circuit
pump 1
Heat
exchanger
sensor
RO2
Solar circuit
pump 2

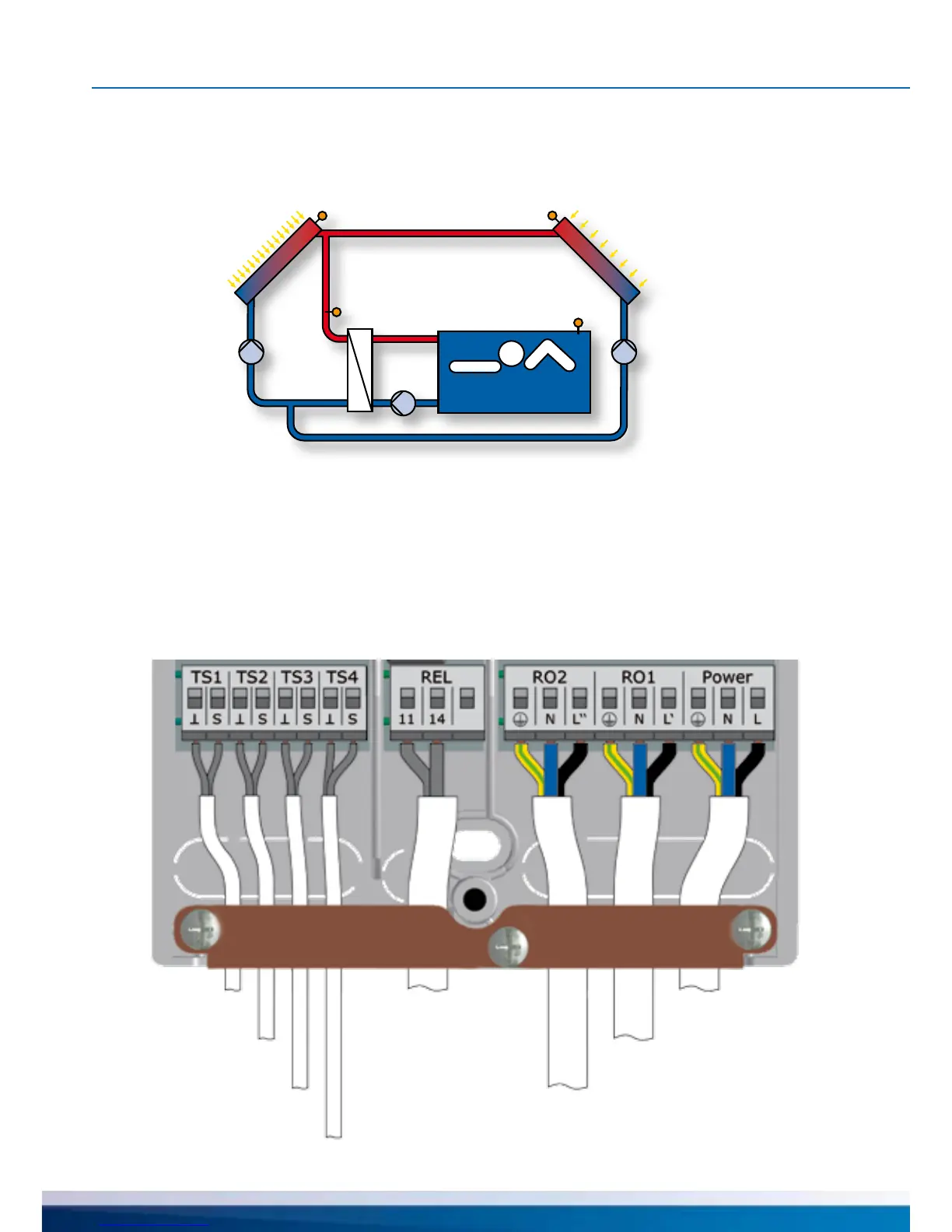

HYDRAULIC SYSTEM 18
Attention !
Maximum
switching
capacity 230VA
Heat exchanger pump
Connection according
to page 16
Collector sensor 2
Swimming pool sensor
Connection to
power supply
Collector sensor 1
Solar circuit pump 1Heat exchanger sensor
Solar circuit pump 2
