emz smart Sol - Page 40

Page 40
TS3
TS2
TS1
RO1
TS4
Swimming
pool sensor
Heat exchanger pump
RO2
Collector
sensor
Solar
circuit
pump 1
Heat
exchanger
sensor
REL
Tank 1
T1
Tank
sensor 1,
bottom
Accumulator re-
versing valve 1

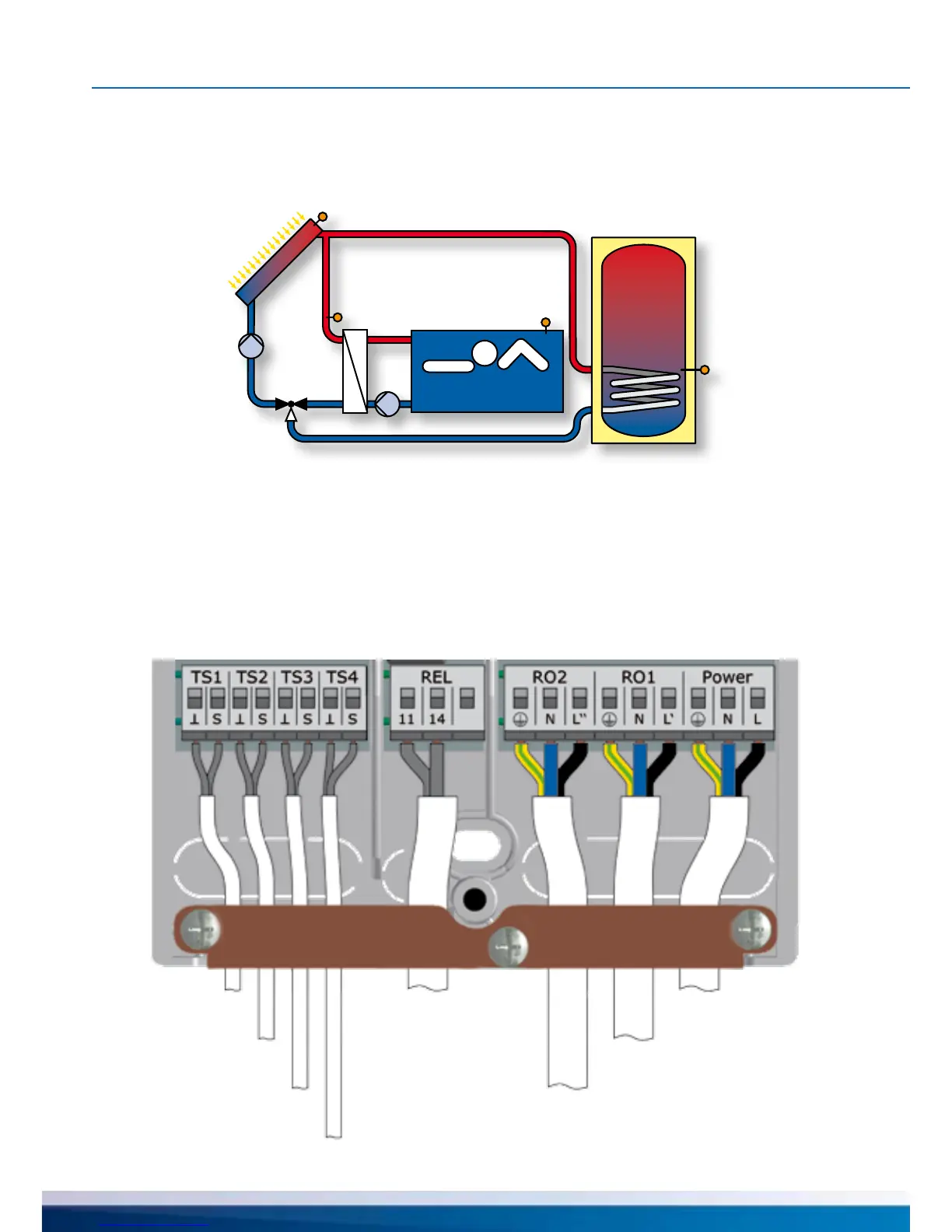

HYDRAULIC SYSTEM 20
Accumulator revers-
ing valve 1
Connection according
to page 16
Tank sensor 1, bottom
Swimming pool sensor
Connection to
power supply
Collector sensor 1
Solar circuit pump 1Heat exchanger sensor
Heat exchanger pump
Note: Priority charging has
been set to T1 in the factory.
