Sensor type Pt 100 Pt 500 Pt 1000
R Terminal 12 130 Ω 620 Ω 1,3 kΩ
Colour code
The differential temperature controller smart
Sol regulates the boiler control functions by
a xed value resistance simulating a charged
buffer tank for the boiler.
The resistance value depends on the type of
sensor the heating is adjusted to - this infor-
mation is provided in the boiler manual.

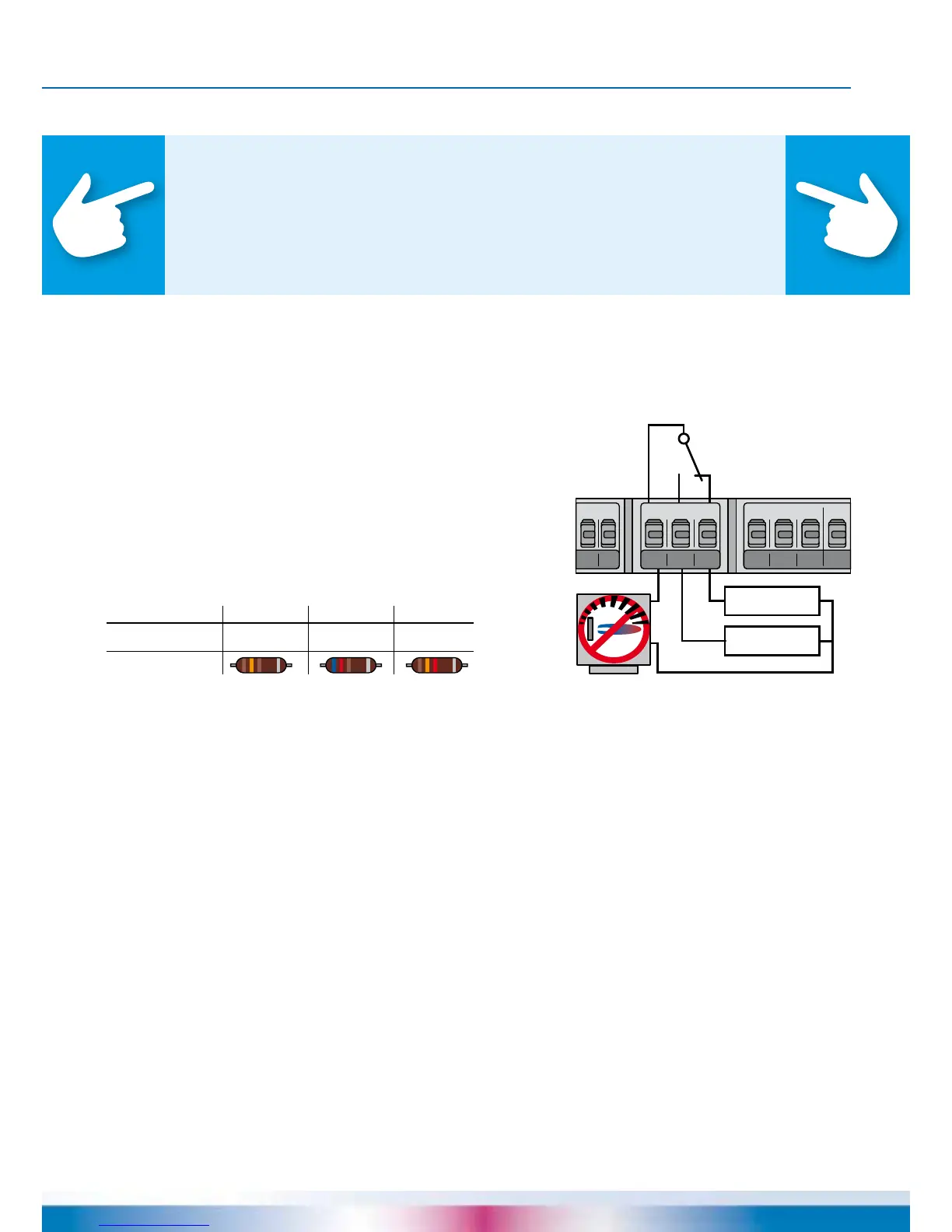

Connection provided at the
REL terminal block, as illustrated.
FUNCTIONS FOR BOILER CONTROL
REL
11 14 12
Kessel
R (T=70°C)
Tank sensor
top
Note!
For boilers without control input, the functions for boiler control
can be accessed by the simulation of temperature values.
To enable reheating or anti-legionella functions, the corresponding
boiler temperature must be increased at the boiler control.
