Page 9
Electrical Requirements
IMPORTANT
: Fill the
fitness system
with water before turning on the power.
Your ENDLESS POOLS
fitness system
has been carefully designed to
give you maximum safety against electrical shock. Connecting the
fitness
system
to an improperly wired circuit will negate many of the
fitness
system
’s safety features. Improper wiring may also cause electrocution,
risk of fire, and other risks of injuries. Please read and follow the electrical
installation requirements and instructions completely!
SINGLE PHASE (MODEL) WIRING
220-240 VOLT CONNECTED (STANDARD)
ENDLESS POOLS
fitness system
s must be wired in accordance with all
applicable local electrical codes. All electrical work should be done by an
experienced, licensed electrician. We recommend the use of appropriate
electrical conduit, fittings, and wire for all circuits.

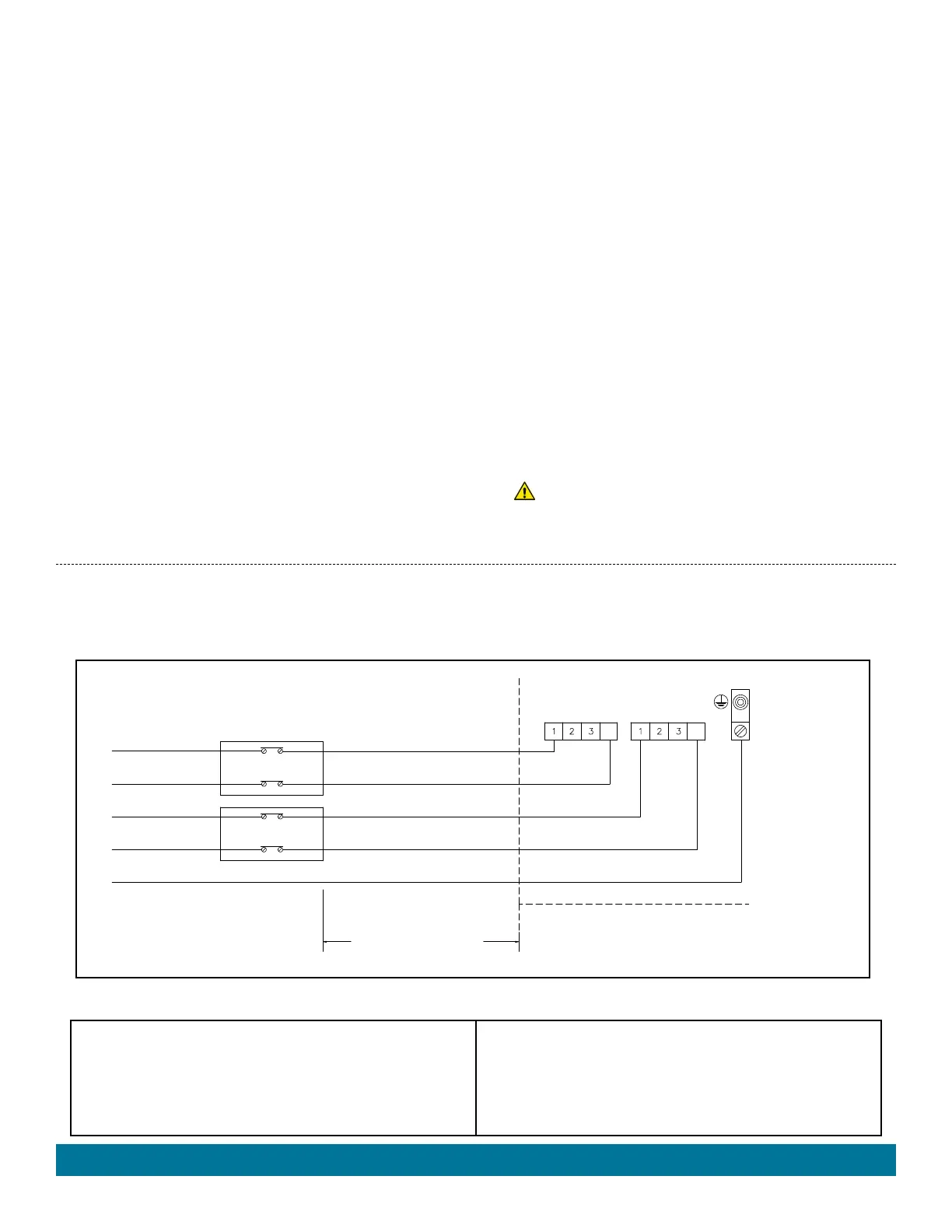

The diagram below illustrates how to wire the
fitness system
model:
• The
fitness system
requires an electrical service using two RCD
breakers. A system with a treadmill requires one breaker rated for a
25 amp load and one rated for a 24 amp load, two 24 amp loads are
required with a system that doesn't have a treadmill.
• Disconnect switches with at least 3 mm separation between contacts
must be used for all electrical circuits to the
fitness system
.
• Mount the subpanel in the vicinity of the
fitness system
, but not closer
than 1.5 m (5 feet)
away.
Your
fitness system
, must be supplied by a
ground fault circuit interrupter - residual current device (RCD) - with a
tripping rating not exceeding 30 mA in an electrical subpanel.
• Open the
fitness system
by removing the 4 screws holding
the vertical T-spacer located in the center of the equipment
compartment (back side of
fitness system
). Slide panel towards
center, raise panel, pull bottom out, lower, disconnect light wires on
both side and remove, repeat for other panel.
• Insert power wires into
fitness system
from either side towards the
bottom, you will find a plastic cap attached to wall.
• Once your
fitness system
has been filled with water, turn it on
and test all of the circuit breakers.
IMPORTANT: If breaker immediately trips, verify that the wires are
correctly connected. Breaker should be tested prior to each use. Here’s
how:
1. Push the “TEST” button on each breaker - residual current device
(RCD), and observe it click OFF.
2. Wait 30 seconds, then push the breaker switch to the OFF (down)
position (to ensure that it has completely disengaged), then push
the breaker switch to the ON (up) position. If you don't wait 30
seconds, the
fitness system
’s power indicator may continue to
blink – try again.
If any of the RCD breakers fails to operate in this manner, your
fitness
system
may have an electrical malfunction, and you may be at risk of
electrical shock. Turn off all circuits and do not use the
fitness system
until the problem has been corrected by an authorized service agent.
WARNING: Removing, or bypassing any RCD breaker will result in
an unsafe
fitness system
and will void the warranty.
IMPORTANT: If you ever need to move or relocate your ENDLESS POOLS fitness system, it is essential that you understand and apply these
installation requirements. Your ENDLESS POOLS fitness system has been carefully engineered to provide maximum safety against electric shock.
Remember, connecting the fitness system to an improperly wired circuit will negate many of its safety features.
NOTE: Long wiring runs may require larger-gauge wire than stated.
CAUTIONS
USE COPPER CONDUCTORS ONLY.
USE SUPPLY WIRES SUITABLE FOR 75°C/167°F.
DISCONNECT ALL SUPPLY CONNECTIONS BEFORE SERVICING.
CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A
GROUND-FAULT INTERRUPTER.
THESE FITNESS SYSTEMS ARE INTENDED FOR USE WITH RCD
SUBPANEL.
INCORRECT WIRING WILL DAMAGE CIRCUIT BOARDS.
REFER TO THE WIRING INSTRUCTIONS INCLUDED WITH THE
SUB-PANEL FOR DETAILED WIRING INSTRUCTIONS.
Single Phase
220-240 VAC, 50Hz,
MORE THAN 152 cm
THE SUB-PANEL MUST
BE WITHIN SIGHT OF THE
FITNESS SYSTEM
DO NOT EXCEED 1525 cm
6.0 mm²
FITNESS SYSTEM JUNCTION BOX
MAIN INPUT
RCD BREAKER*
24 Amp Load
L1, HOT
L2, HOT
N2, NEUTRAL,
GROUND, 16.0 mm²
CIRCUIT 1 CIRCUIT 2
GND
N, NEUTRAL
6.0 mm²
6.0 mm²
6.0 mm²
6.0 mm²
L1, HOT
L2, HOT
N2, NEUTRAL,
N, NEUTRAL
6.0 mm²
6.0 mm²
6.0 mm²
RCD BREAKER*
24A Load or
25A Load with Treadmill
INPUT 1
INPUT 2
N N
Electrical Requirements
* Circuit System Load Rating Noted
