Site Requirements
E500 MODELS
NOTE: ENDLESS POOLS requires that the E500 Models be installed on a minimum 15 cm (6") thick reinforced concrete pad or structurally sound deck able to support the
“dead weight” found in the specification chart on the back page.
WARNING: The E500 Models must not be shimmed in any manner.
458 cm
226 cm
52 cm 35 cm
35 cm
10 cm
147 cm
DOOR
DOOR SIDE
4.5 cm
ELECTRICAL CUTOUT
4.5 cm
ELECTRICAL CUTOUT
MAIN DRAIN

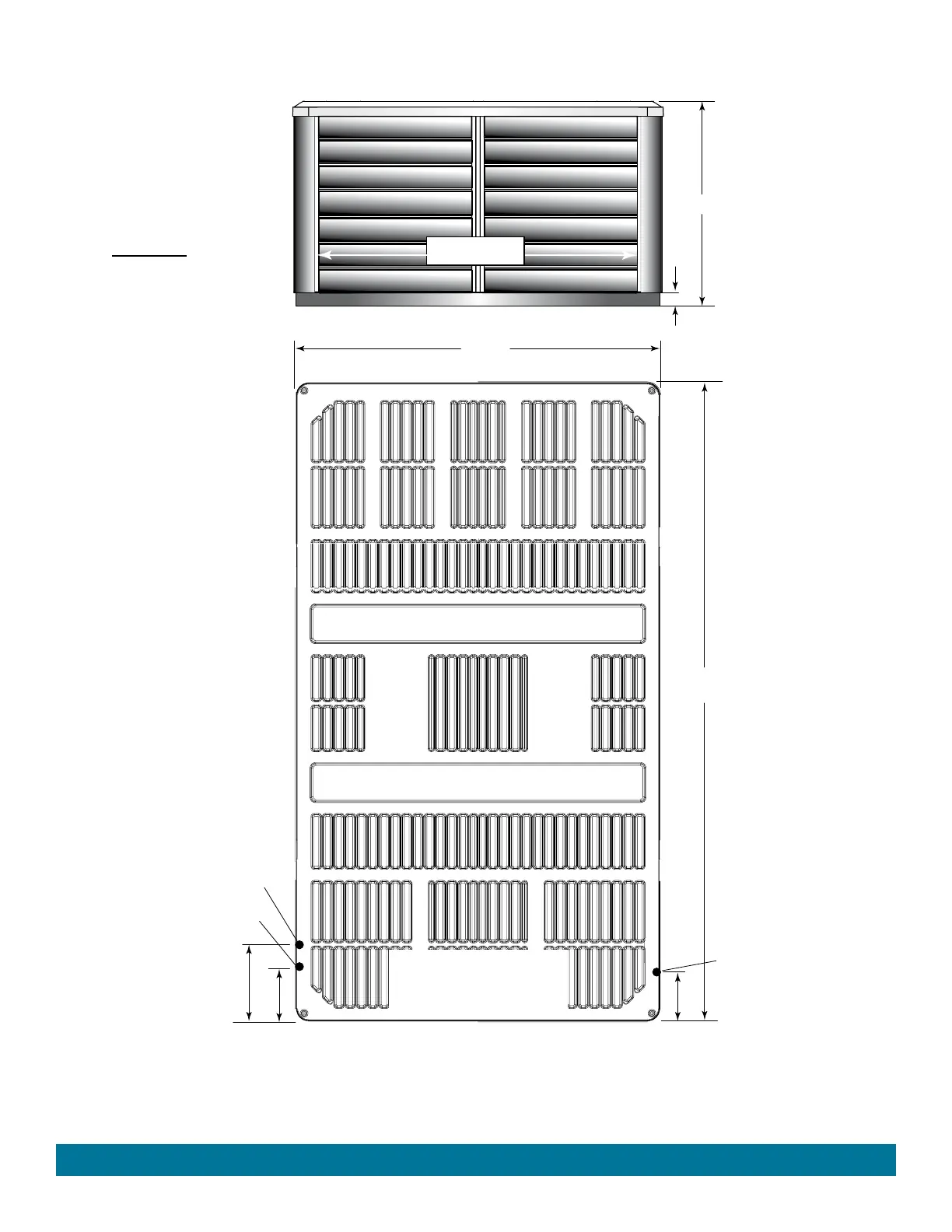

TOP VIEW OF BASE
E500 Models:
E500-58 = 147 cm tall
E500-58 = 147 cm tall
Treadmill
Equipment Compartment
Location
Back
Side
