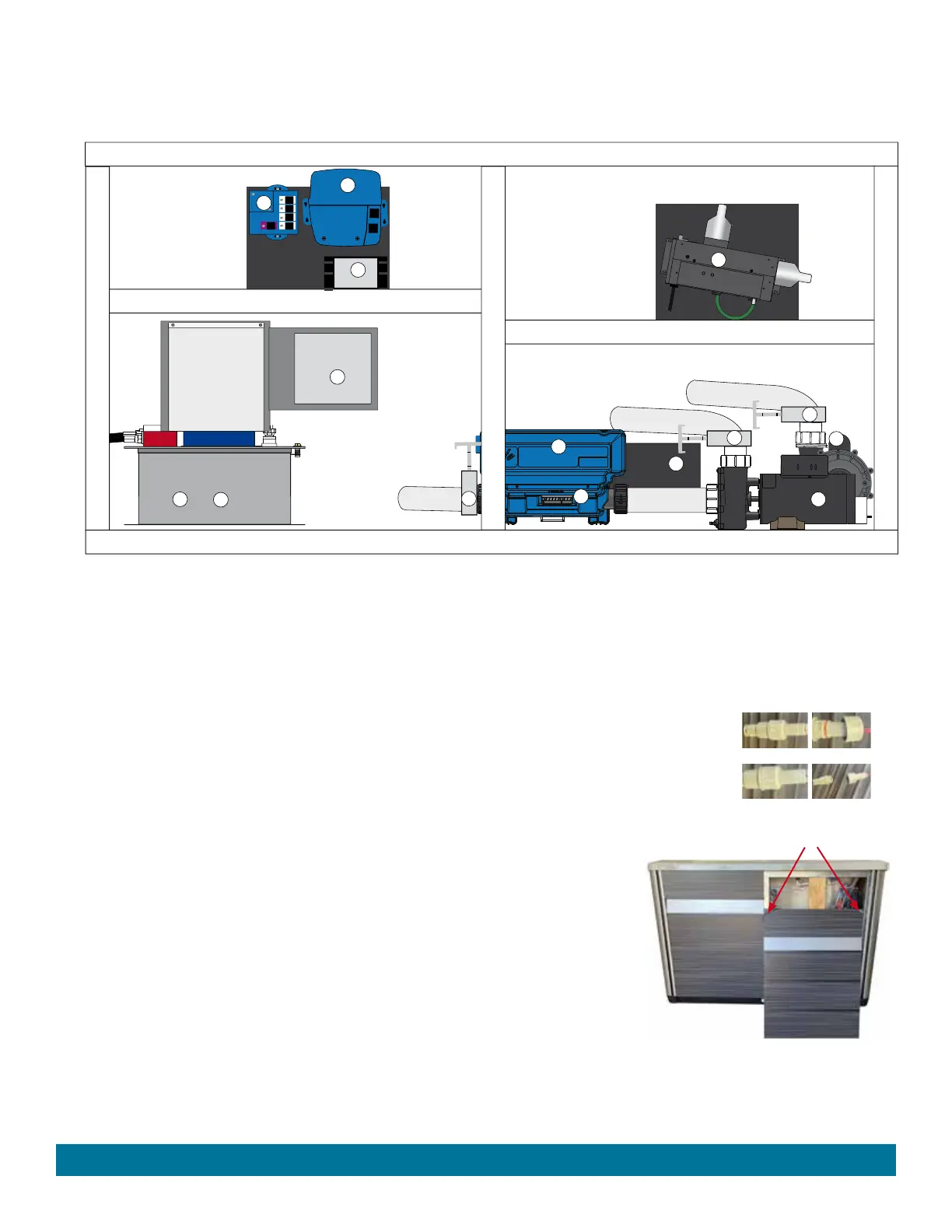

EQUIPMENT COMPARTMENT
The illustrations below are to be used as a reference only (your
fitness system
may look different). The equipment compartment is located behind the
hydromassage seats (back of the
fitness system
) for the E500 & E700 and below the Control Panel on the front left side for the E550.
7
9
3
4
5
6
8
1
Page 11
Electrical Requirements
2
DOOR PANEL REMOVE & REPLACE
REMOVE
1. Locate the vertical T-spacer in the center of the equipment compartment
(back side of
fitness system or front left side under control panel for E550 model)
.
2. Remove the 4 screws (using an 8 mm [5/16"] socket) holding the T-spacer then remove the T-spacer.
3. Slide panel towards center until panel is no longer behind corner.
4. While holding panel, first pull panel up then pull bottom away from ENDLESS POOLS Fitness
system, lower panel and set on ground.
Disconnect light bar wires from each side of panel
and remove.
5. Repeat for other side.
REPLACE
1. Reconnect light bar wires.
2. Raise panel making sure it goes behind the bar top and rest on bottom frame.
3. Slide panel behind corner.
4. Replace other side panel using steps 1 & 2.
5. Attach T-spacer back in place using 4 screws to complete the installation.
10
11
12
1. Hydromassage Jets pump
2. Circulation Pump
3. Control Box & Heater
4. Bonding terminal
5. Swim Machine Hydraulic Unit
(smaller than illustrated)
6. Treadmill Hydraulic Unit (Optional
tandem unit used for both 5 & 6)
7. Junction Box
8. UV-C Ozone
9. Bluetooth Music (optional)
10. Subwoofer (optional)
11. Wi-Fi (optional)
12. Dual Output Power Supply for External.
lights
13. Isolation Valve
13
13
13
(A)
(B)
(C)
(D)
Disconnect Light bar wires
(see steps A-D above)
To Next Page
