Deltabar PMD78B HART Operation options
Endress+Hauser 17
NOTICE
M12 plug and HAN7D plug: incorrect mounting can invalidate the IP protection class!
‣
The degree of protection only applies if the connecting cable used is plugged in and
screwed tight.
‣
The degree of protection only applies if the connecting cable used is specified according to
IP67, NEMA Type 4X.
‣
The IP protection classes are only maintained if the dummy cap is used or the cable is
connected.
7 Operation options

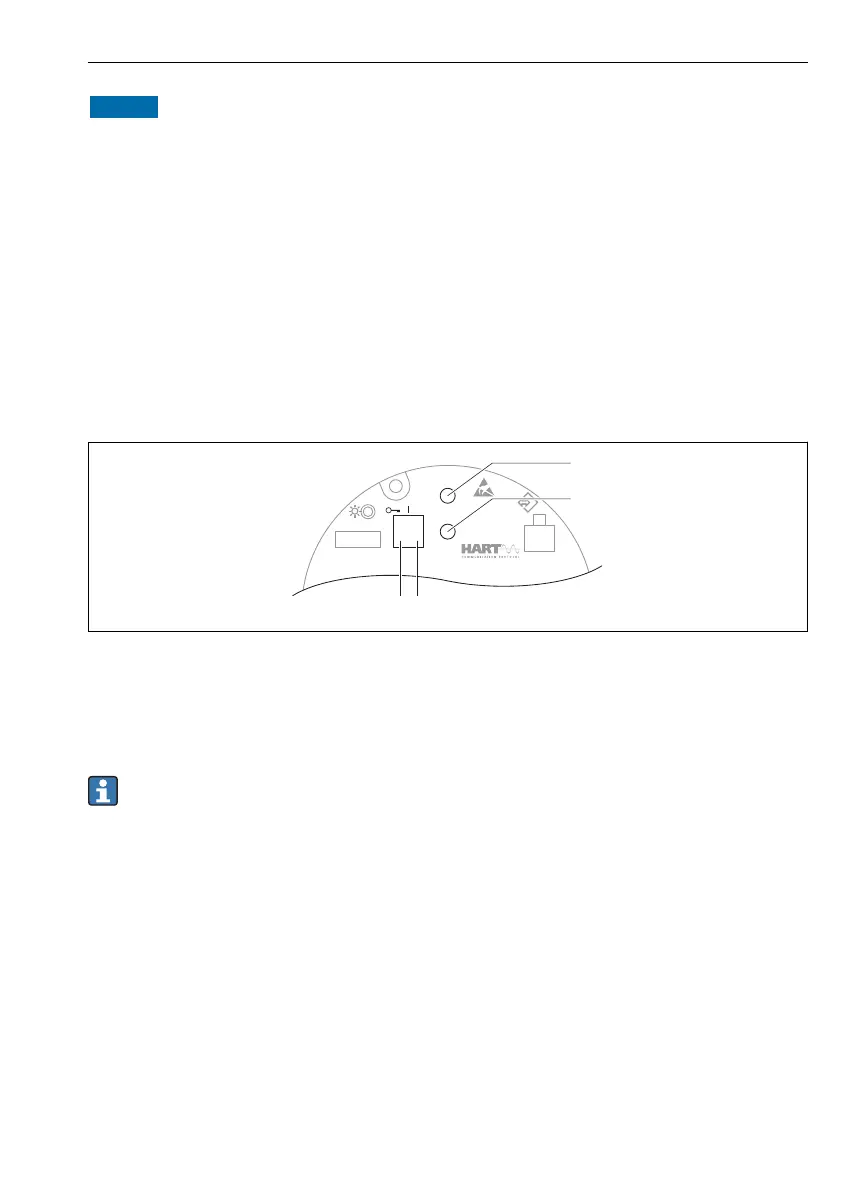

7.1 Operating keys and DIP switches on the electronic insert
1
2
Alarm
on
off
MaxSW
Zero/I
Span/II
Display
34
A0039285
1 Operating key for lower range value (Zero)
2 Operating key for upper range value (Span)
3 DIP switch for alarm current
4 DIP switch for locking and unlocking the device
The setting of the DIP switches has priority over the settings made via other operation
methods (e.g. FieldCare/DeviceCare).
